Century Spring

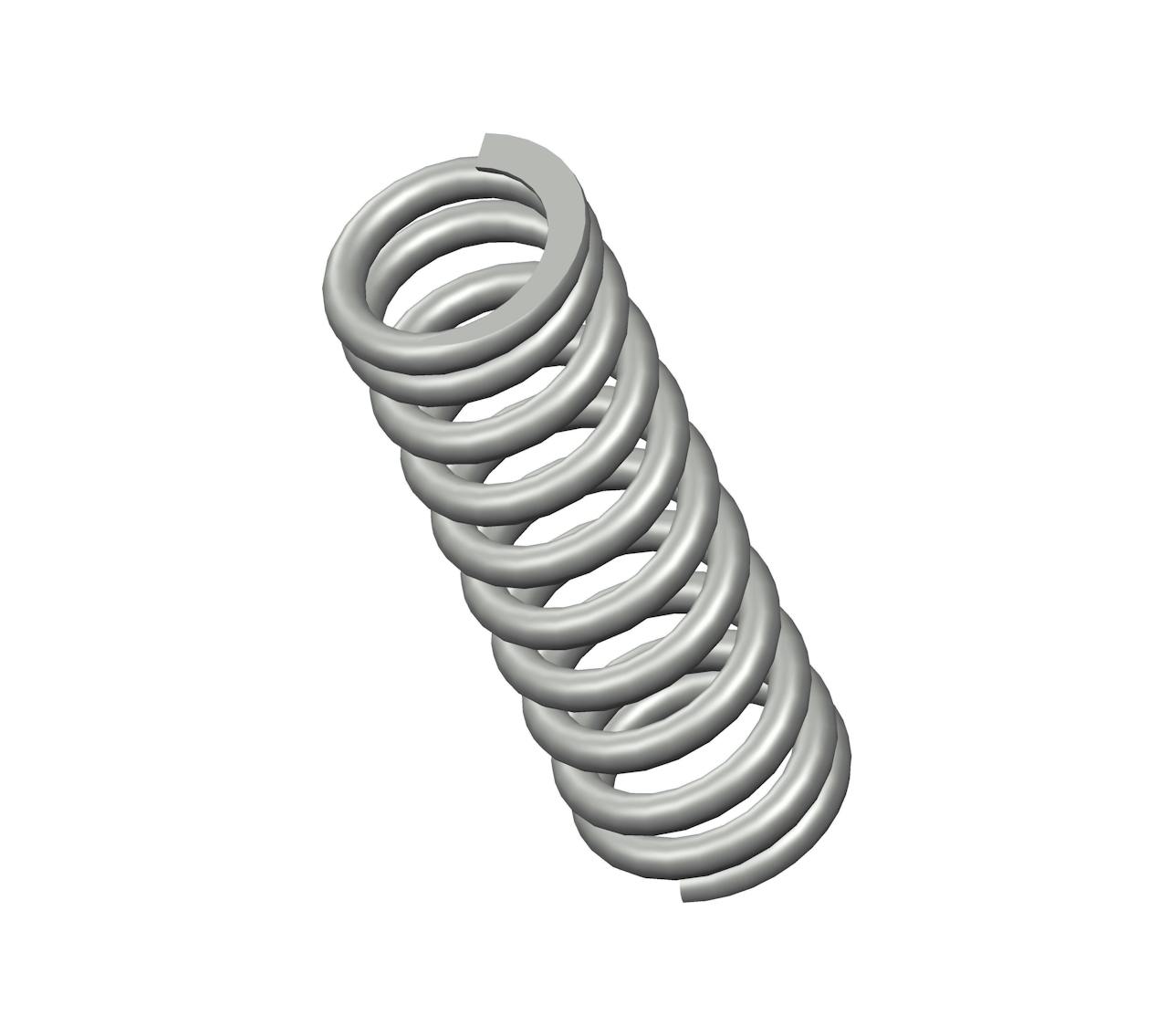

A11-47CS - 1.28" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 10.5 coils and closed & ground ends. This spring features an O.D. of 0.42", and an I.D. of 0.295".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name A11-47
Ends Closed & Ground
Finish Zinc
Free Length 1.28 in
Inside Diameter 0.295 in
Material Spring Steel
Outside Diameter 0.42 in
Part Type Standard
Rate 58 lbs/in
SKU A11-47CS
Solid Length 0.66 in
Suggested Max Deflection 0.36 in
Suggested Max Load 21 lbf
Total Coils 10.5
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name A11-47
Ends Closed & Ground
Finish Zinc
Free Length 32.51 mm
Inside Diameter 7.49 mm
Material Spring Steel
Outside Diameter 10.67 mm
Part Type Standard
Rate 10.16 N/mm
SKU A11-47CS
Solid Length 16.76 mm
Suggested Max Deflection 9.14 mm
Suggested Max Load 93.41 N
Total Coils 10.5
Wire Diameter 1.59 mm
The A11-47 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The A11-47CS compression spring is designed with a free length of 1.03" total of 6.75 coils, and a rate of 12 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The A11-47 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
