Century Spring

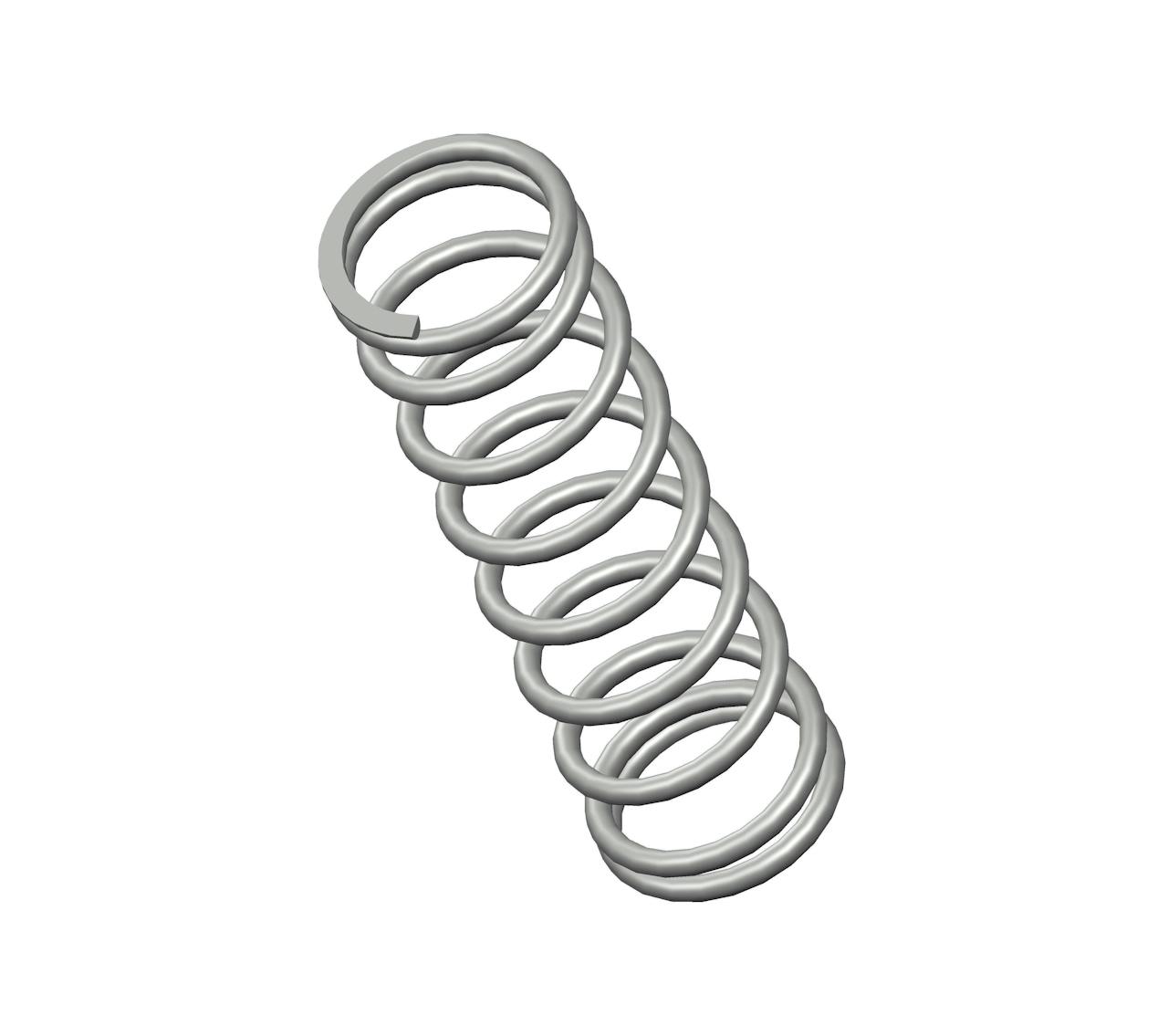

A11-36CS - 1.5" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 9.5 coils and closed & ground ends. This spring features an O.D. of 0.437", and an I.D. of 0.347".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name A11-36
Ends Closed & Ground
Finish None
Free Length 1.5 in
Inside Diameter 0.347 in
Material Spring Steel
Outside Diameter 0.437 in
Part Type Standard
Rate 13 lbs/in
SKU A11-36CS
Solid Length 0.43 in
Suggested Max Deflection 0.62 in
Suggested Max Load 8 lbf
Total Coils 9.5
Wire Diameter 0.045 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name A11-36
Ends Closed & Ground
Finish None
Free Length 38.1 mm
Inside Diameter 8.81 mm
Material Spring Steel
Outside Diameter 11.1 mm
Part Type Standard
Rate 2.28 N/mm
SKU A11-36CS
Solid Length 10.92 mm
Suggested Max Deflection 15.75 mm
Suggested Max Load 35.58 N
Total Coils 9.5
Wire Diameter 1.14 mm
The A11-36CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.045" diameter spring steel, the A11-36 spring design exhibits reliable strength across its 9.5 active coils, withstanding repeated compression cycles with a maximum load of 8 lbf without succumbing to fatigue.

We manufacture the A11-36 design to provide a compression spring that is 1.5" long at rest and provides a consistent rate of 13 lbs/in along its recommended maximum of 0.62" deflection. For best results, your application should fully accommodate the inner (0.347") and outer (0.437") diameters of this spring and be designed for its closed & ground end configuration.
