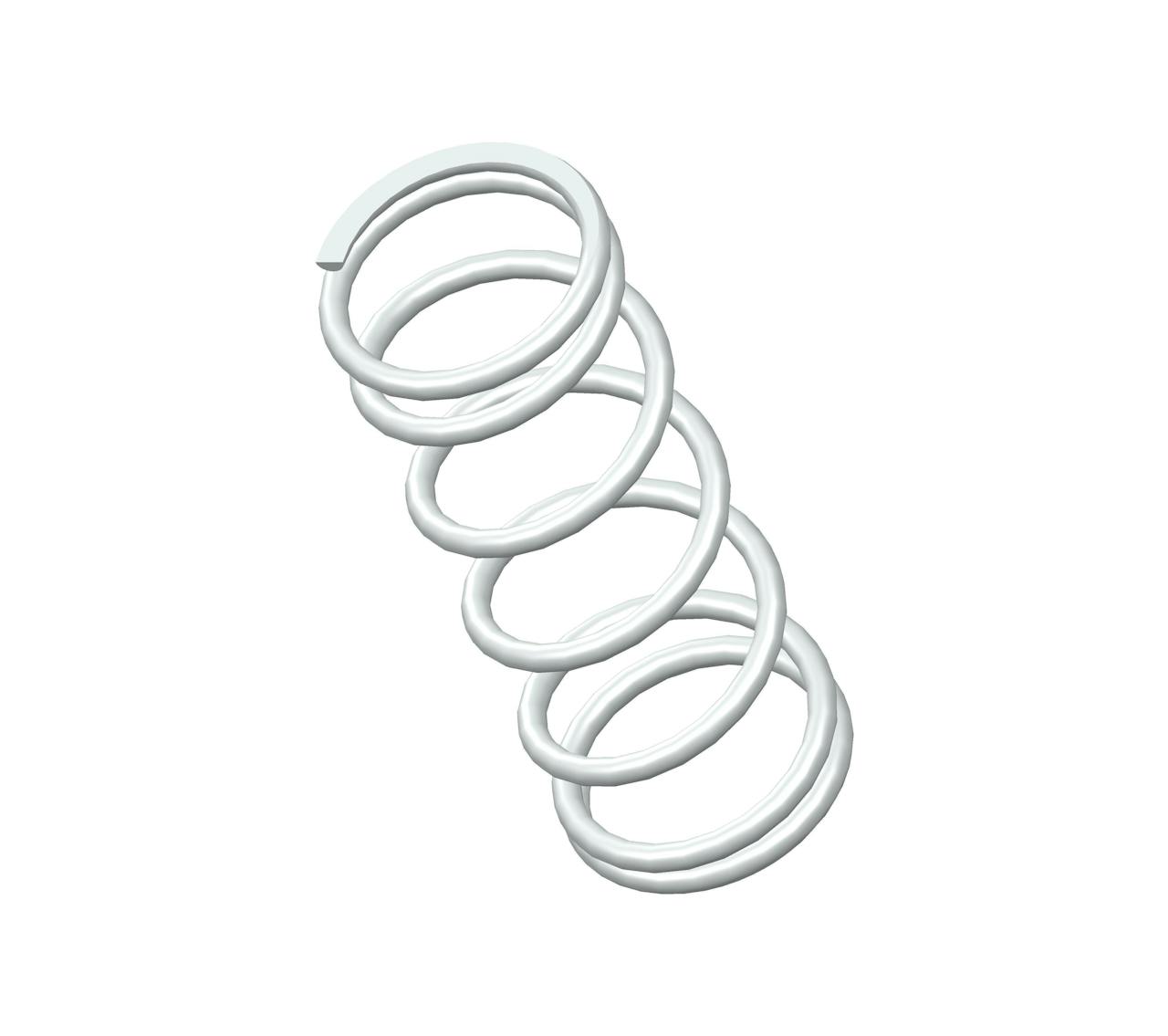

A11-31CS - 1.28" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 7 coils and closed & ground ends. This spring features an O.D. of 0.484", and an I.D. of 0.392".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A11-31 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.28 in |
| Inside Diameter | 0.392 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.484 in |
| Part Type | Standard |
| Rate | 13 lbs/in |
| SKU | A11-31CS |
| Solid Length | 0.33 in |
| Suggested Max Deflection | 0.55 in |
| Suggested Max Load | 7.3 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.046 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A11-31 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 32.51 mm |
| Inside Diameter | 9.96 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 12.29 mm |
| Part Type | Standard |
| Rate | 2.28 N/mm |
| SKU | A11-31CS |
| Solid Length | 8.38 mm |
| Suggested Max Deflection | 13.97 mm |
| Suggested Max Load | 32.47 N |
| Total Coils | 7 |
| Wire Diameter | 1.17 mm |
The compression spring A11-31CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the A11-31 compression spring design exhibits exceptional tensile strength and resilience.
The A11-31 design is manufactured with a free length of 1.28", with an outer diameter of 0.484", an inner diameter of 0.392", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 13 lbs/in.
The A11-31CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A11-31 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A11-31 design is manufactured with a free length of 1.28", with an outer diameter of 0.484", an inner diameter of 0.392", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 13 lbs/in.
The A11-31CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A11-31 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
