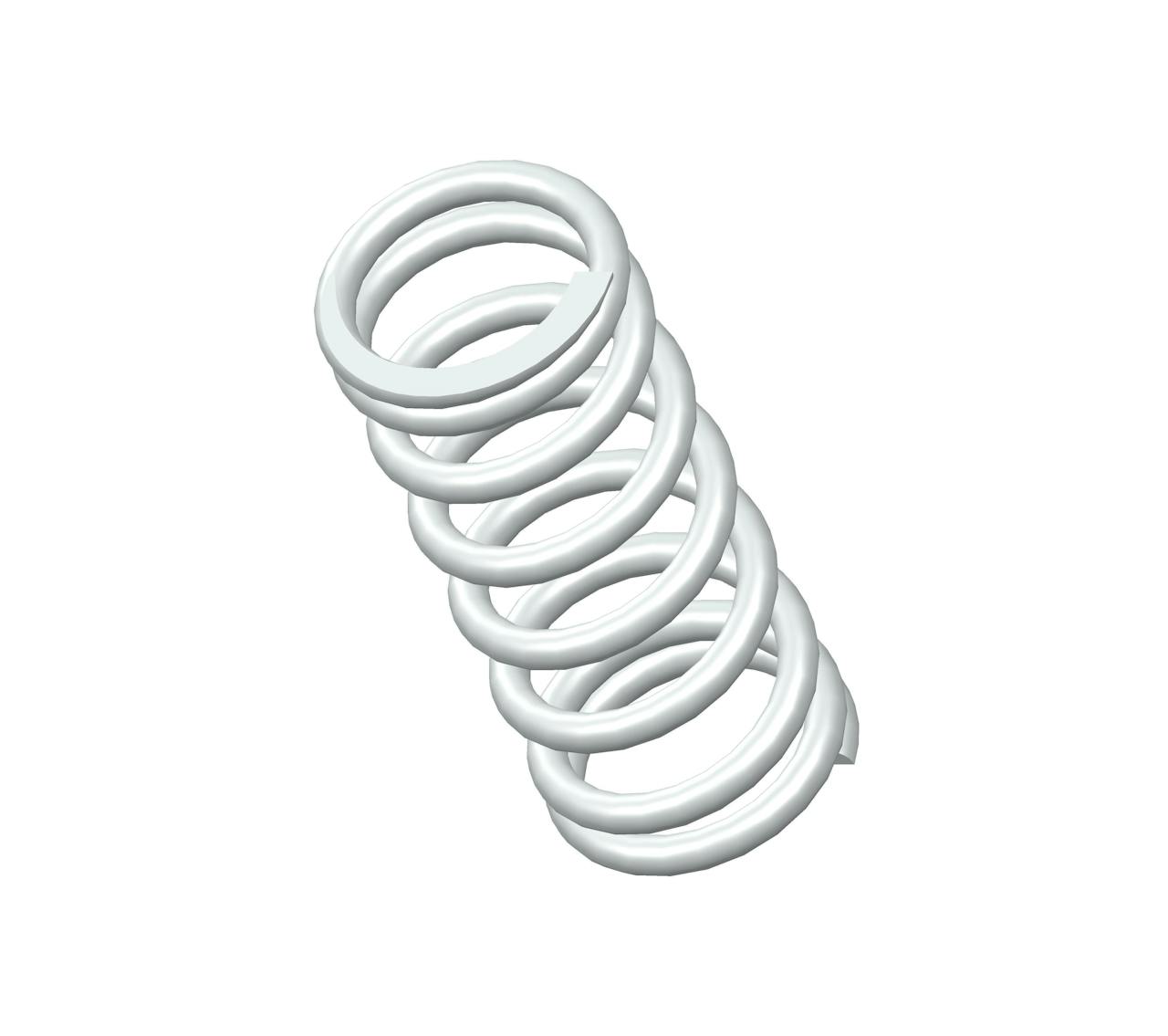

A11-25CS - 0.88" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 8 coils and closed & ground ends. This spring features an O.D. of 0.36", and an I.D. of 0.268".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A11-25 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.88 in |
| Inside Diameter | 0.268 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.36 in |
| Part Type | Standard |
| Rate | 31 lbs/in |
| SKU | A11-25CS |
| Solid Length | 0.37 in |
| Suggested Max Deflection | 0.31 in |
| Suggested Max Load | 9.6 lbf |
| Total Coils | 8 |
| Wire Diameter | 0.046 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A11-25 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 22.35 mm |
| Inside Diameter | 6.81 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 9.14 mm |
| Part Type | Standard |
| Rate | 5.43 N/mm |
| SKU | A11-25CS |
| Solid Length | 9.4 mm |
| Suggested Max Deflection | 7.87 mm |
| Suggested Max Load | 42.7 N |
| Total Coils | 8 |
| Wire Diameter | 1.17 mm |
The compression spring A11-25CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the A11-25 compression spring design exhibits exceptional tensile strength and resilience.
The A11-25 design is manufactured with a free length of 0.88", with an outer diameter of 0.36", an inner diameter of 0.268", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 31 lbs/in.
The A11-25CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A11-25 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A11-25 design is manufactured with a free length of 0.88", with an outer diameter of 0.36", an inner diameter of 0.268", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 31 lbs/in.
The A11-25CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A11-25 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
