A11-19CS - 0.63" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

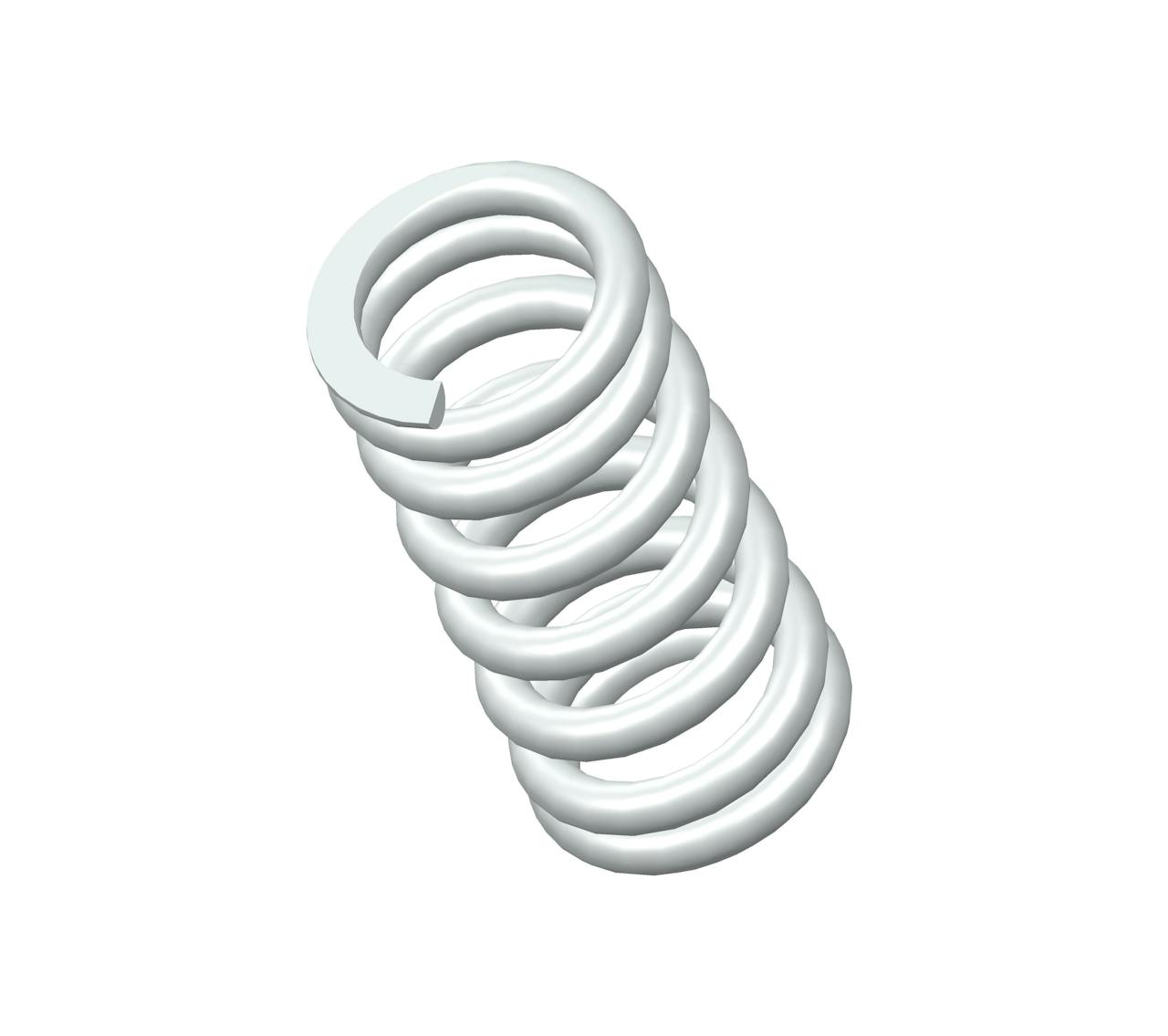

Compression spring manufactured from 302/304 stainless steel with 7.5 coils and closed & ground ends. This spring features an O.D. of 0.296", and an I.D. of 0.204".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A11-19 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.63 in |
| Inside Diameter | 0.204 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.296 in |
| Part Type | Standard |
| Rate | 66 lbs/in |
| SKU | A11-19CS |
| Solid Length | 0.35 in |
| Suggested Max Deflection | 0.17 in |
| Suggested Max Load | 11 lbf |
| Total Coils | 7.5 |
| Wire Diameter | 0.046 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A11-19 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 16 mm |
| Inside Diameter | 5.18 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 7.52 mm |
| Part Type | Standard |
| Rate | 11.56 N/mm |
| SKU | A11-19CS |
| Solid Length | 8.89 mm |
| Suggested Max Deflection | 4.32 mm |
| Suggested Max Load | 48.93 N |
| Total Coils | 7.5 |
| Wire Diameter | 1.17 mm |
The compression spring A11-19CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the A11-19 compression spring design exhibits exceptional tensile strength and resilience.
The A11-19 design is manufactured with a free length of 0.63", with an outer diameter of 0.296", an inner diameter of 0.204", and a total of 7.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 66 lbs/in.
The A11-19CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A11-19 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A11-19 design is manufactured with a free length of 0.63", with an outer diameter of 0.296", an inner diameter of 0.204", and a total of 7.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 66 lbs/in.
The A11-19CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A11-19 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
