A11-10CS - 0.47" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

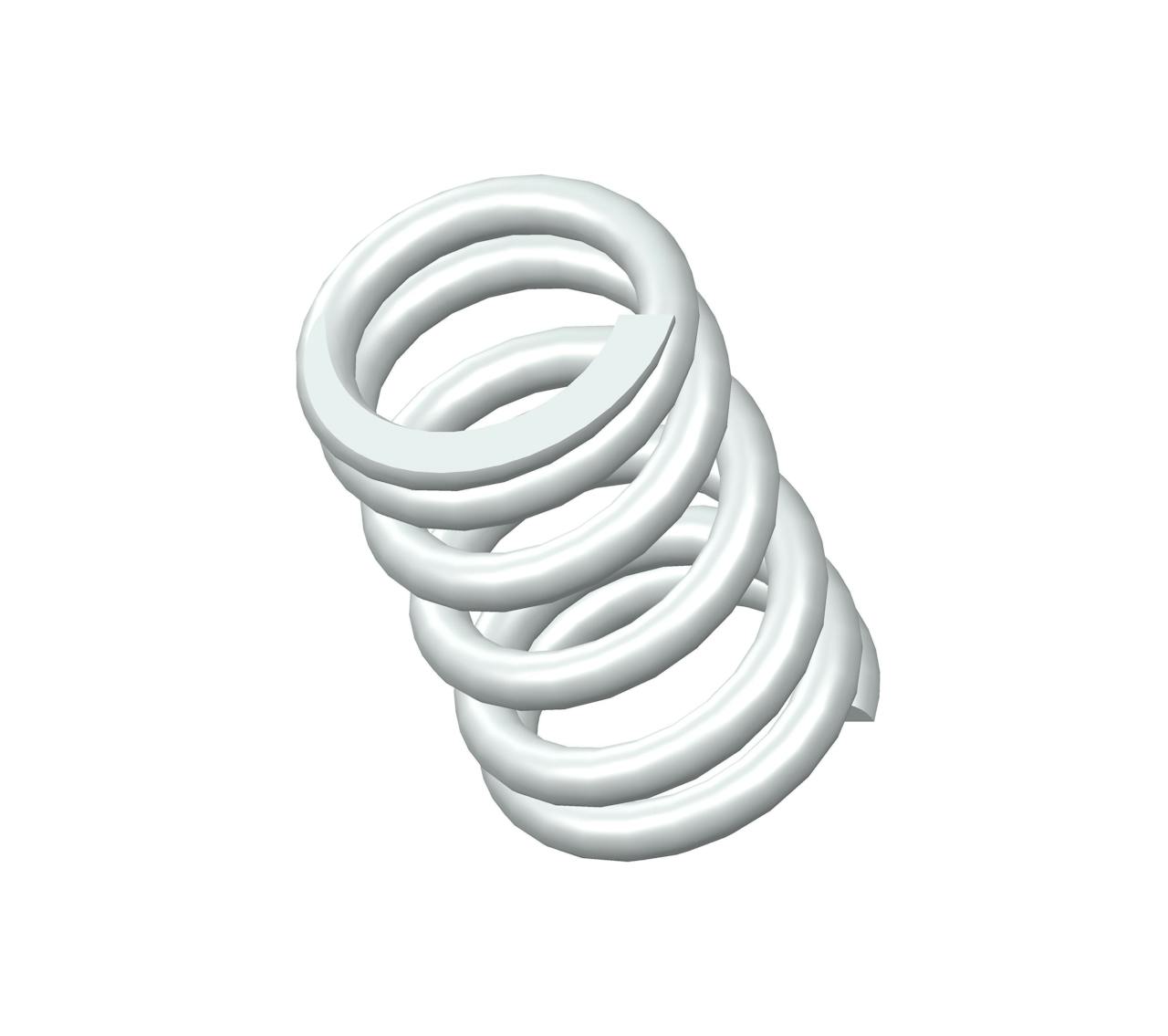

Compression spring manufactured from 302/304 stainless steel with 6 coils and closed & ground ends. This spring features an O.D. of 0.296", and an I.D. of 0.21".

Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name A11-10
Ends Closed & Ground
Finish None
Free Length 0.47 in
Inside Diameter 0.21 in
Material 302/304 Stainless Steel
Outside Diameter 0.296 in
Part Type Standard
Rate 67 lbs/in
SKU A11-10CS
Solid Length 0.26 in
Suggested Max Deflection 0.14 in
Suggested Max Load 9.4 lbf
Total Coils 6
Wire Diameter 0.043 in
The A11-10CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.043" diameter 302/304 stainless steel, the A11-10 spring design exhibits reliable strength across its 6 active coils, withstanding repeated compression cycles with a maximum load of 9.4 lbf without succumbing to fatigue.

We manufacture the A11-10 design to provide a compression spring that is 0.47" long at rest and provides a consistent rate of 67 lbs/in along its recommended maximum of 0.14" deflection. For best results, your application should fully accommodate the inner (0.21") and outer (0.296") diameters of this spring and be designed for its closed & ground end configuration.
