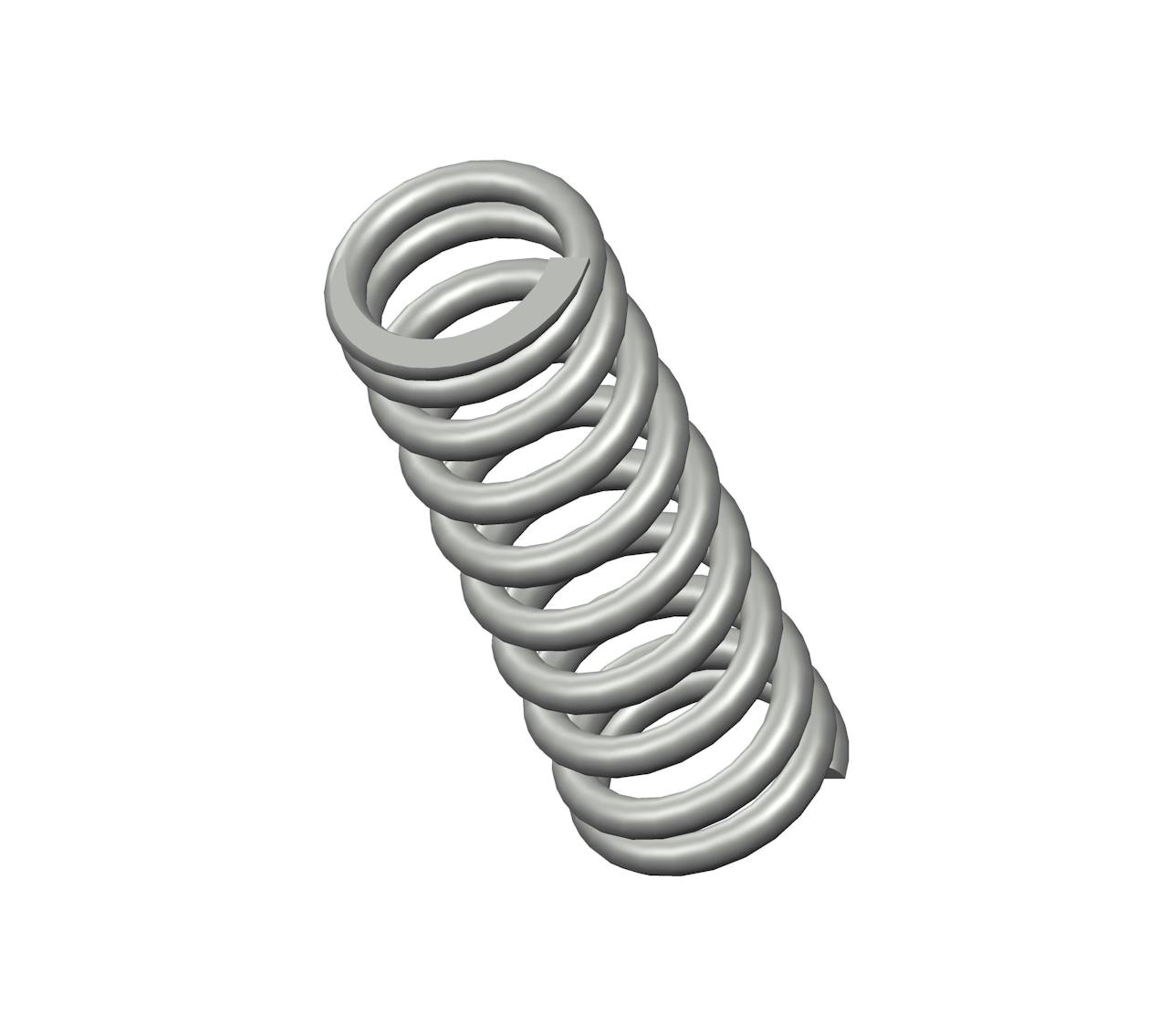

A10-70CS - 1.09" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 10 coils and closed & ground ends. This spring features an O.D. of 0.375", and an I.D. of 0.265".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name A10-70
Ends Closed & Ground
Finish Zinc
Free Length 1.09 in
Inside Diameter 0.265 in
Material Spring Steel
Outside Diameter 0.375 in
Part Type Standard
Rate 50 lbs/in
SKU A10-70CS
Solid Length 0.55 in
Suggested Max Deflection 0.31 in
Suggested Max Load 15 lbf
Total Coils 10
Wire Diameter 0.055 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name A10-70
Ends Closed & Ground
Finish Zinc
Free Length 27.69 mm
Inside Diameter 6.73 mm
Material Spring Steel
Outside Diameter 9.53 mm
Part Type Standard
Rate 8.76 N/mm
SKU A10-70CS
Solid Length 13.97 mm
Suggested Max Deflection 7.87 mm
Suggested Max Load 66.72 N
Total Coils 10
Wire Diameter 1.4 mm
The A10-70 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The A10-70CS compression spring is designed with a free length of 0.25" total of 5 coils, and a rate of 30 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The A10-70 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
