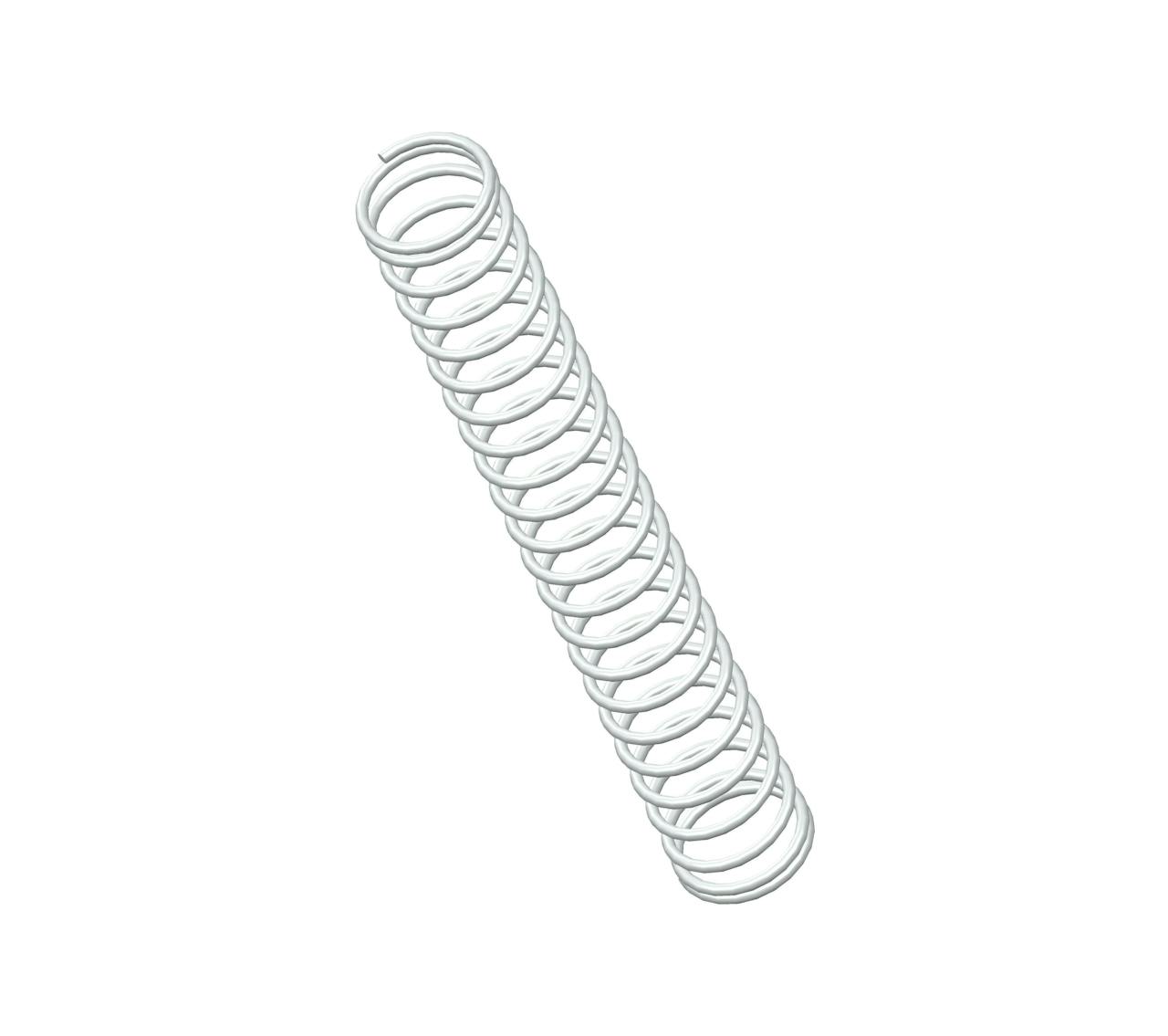

A10-34CS - 1" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 22.8 coils and closed ends. This spring features an O.D. of 0.14", and an I.D. of 0.116".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name A10-34
Ends Closed
Finish None
Free Length 1 in
Inside Diameter 0.116 in
Material 302/304 Stainless Steel
Outside Diameter 0.14 in
Part Type Standard
Rate 0.61 lbs/in
SKU A10-34CS
Solid Length 0.29 in
Suggested Max Deflection 0.72 in
Suggested Max Load 0.43 lbf
Total Coils 22.8
Wire Diameter 0.012 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name A10-34
Ends Closed
Finish None
Free Length 25.4 mm
Inside Diameter 2.95 mm
Material 302/304 Stainless Steel
Outside Diameter 3.56 mm
Part Type Standard
Rate 0.11 N/mm
SKU A10-34CS
Solid Length 7.37 mm
Suggested Max Deflection 18.29 mm
Suggested Max Load 1.91 N
Total Coils 22.8
Wire Diameter 0.3 mm
The compression spring A10-34CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the A10-34 compression spring design exhibits exceptional tensile strength and resilience.

The A10-34 design is manufactured with a free length of 1", with an outer diameter of 0.14", an inner diameter of 0.116", and a total of 22.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.61 lbs/in.

The A10-34CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring A10-34 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
