A10-31CS - 0.47" Phosphor Bronze Compression Spring

Inventory Status
Estimated Lead Time

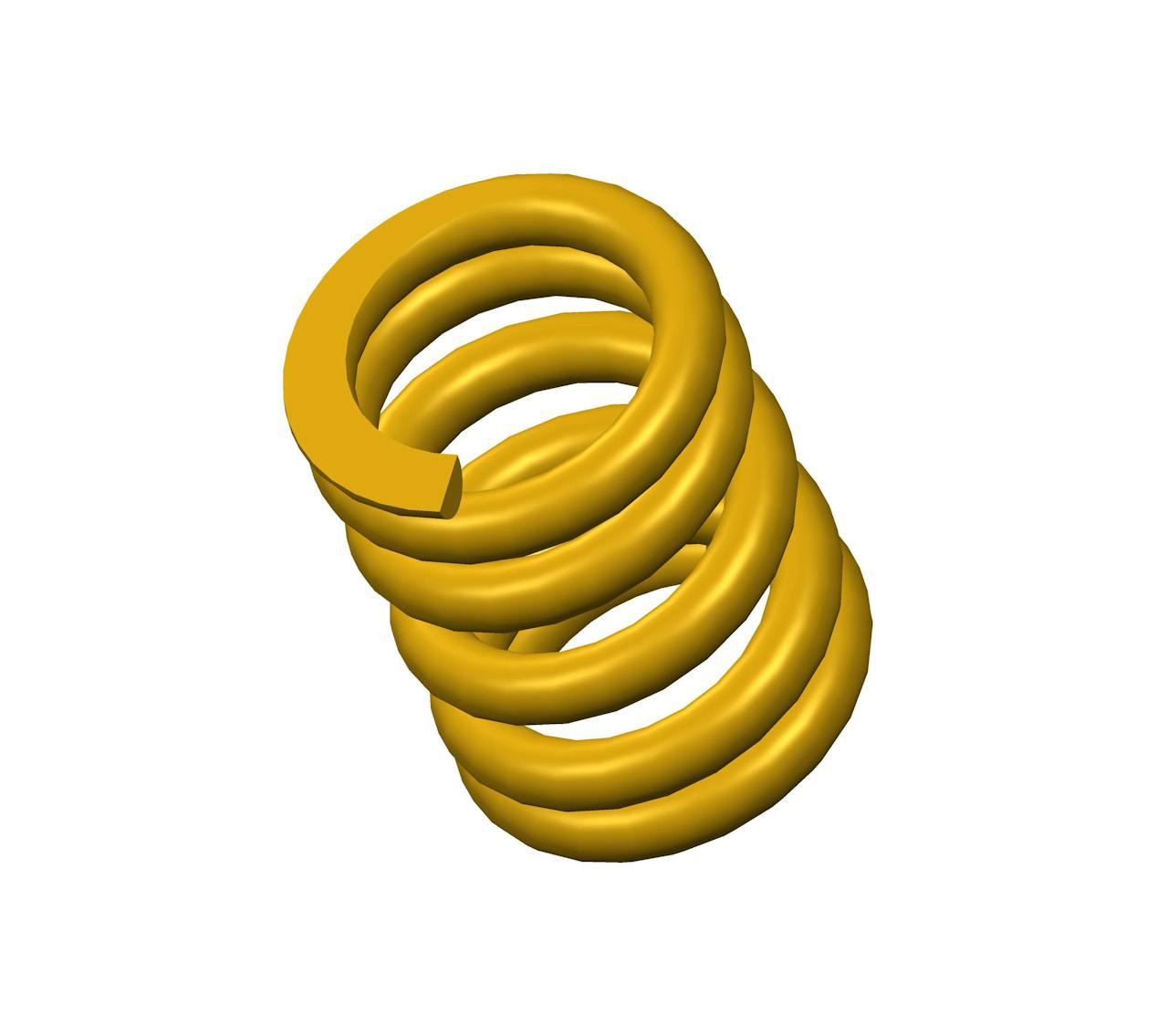

Compression spring manufactured from phosphor bronze with 5.5 coils and closed & ground ends. This spring features an O.D. of 0.36", and an I.D. of 0.244".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name A10-31
Ends Closed & Ground
Finish None
Free Length 0.47 in
Inside Diameter 0.244 in
Material Phosphor Bronze
Outside Diameter 0.36 in
Part Type Standard
Rate 93 lbs/in
SKU A10-31CS
Solid Length 0.32 in
Suggested Max Deflection 0.15 in
Suggested Max Load 14 lbf
Total Coils 5.5
Wire Diameter 0.058 in
The A10-31 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality phosphor bronze and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The A10-31CS compression spring is designed with a free length of 0.81" total of 8.25 coils, and a rate of 35 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The A10-31 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
