Century Spring

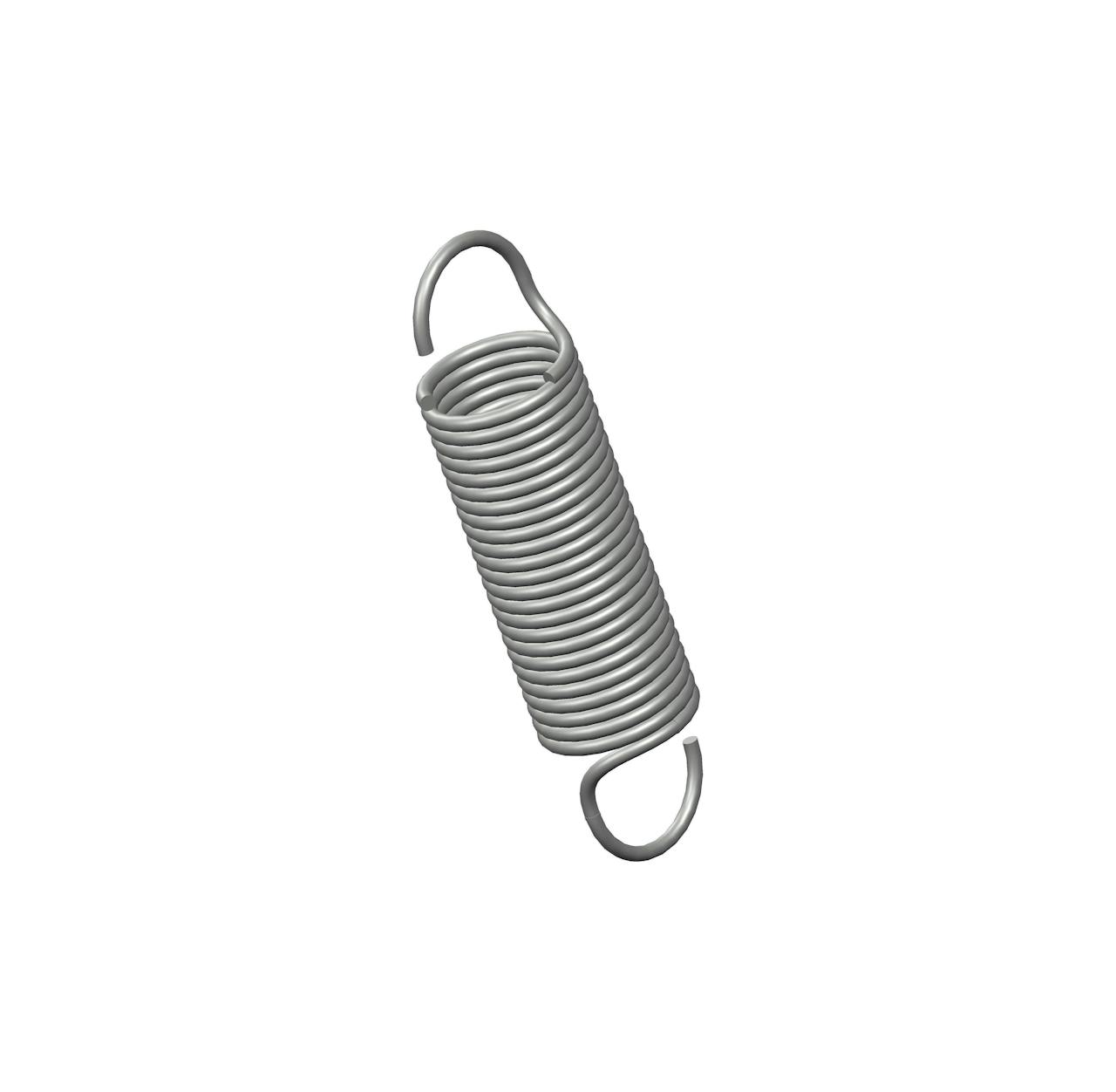

A10-28CS - 0.84 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.359 Inch and an initial tension of 0.6 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name A10-28
Ends Full Loop
Finish None
Initial Tension 0.6 lb
Length 0.84 in
Material Spring Steel
Outside Diameter 0.359 in
Part Type Standard
Rate 6.8 lbs/in
SKU A10-28CS
Sugg Max Deflection 0.58 in
Sugg Max Load 4.6 lbf
Wind Direction Left
Wire Diameter 0.036 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name A10-28
Ends Full Loop
Finish None
Initial Tension 0.27 kg
Length 21.34 mm
Material Spring Steel
Outside Diameter 9.12 mm
Part Type Standard
Rate 1.19 N/mm
SKU A10-28CS
Sugg Max Deflection 14.73 mm
Sugg Max Load 20.46 N
Wind Direction Left
Wire Diameter 0.91 mm
