A10-12CS - 0.56" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

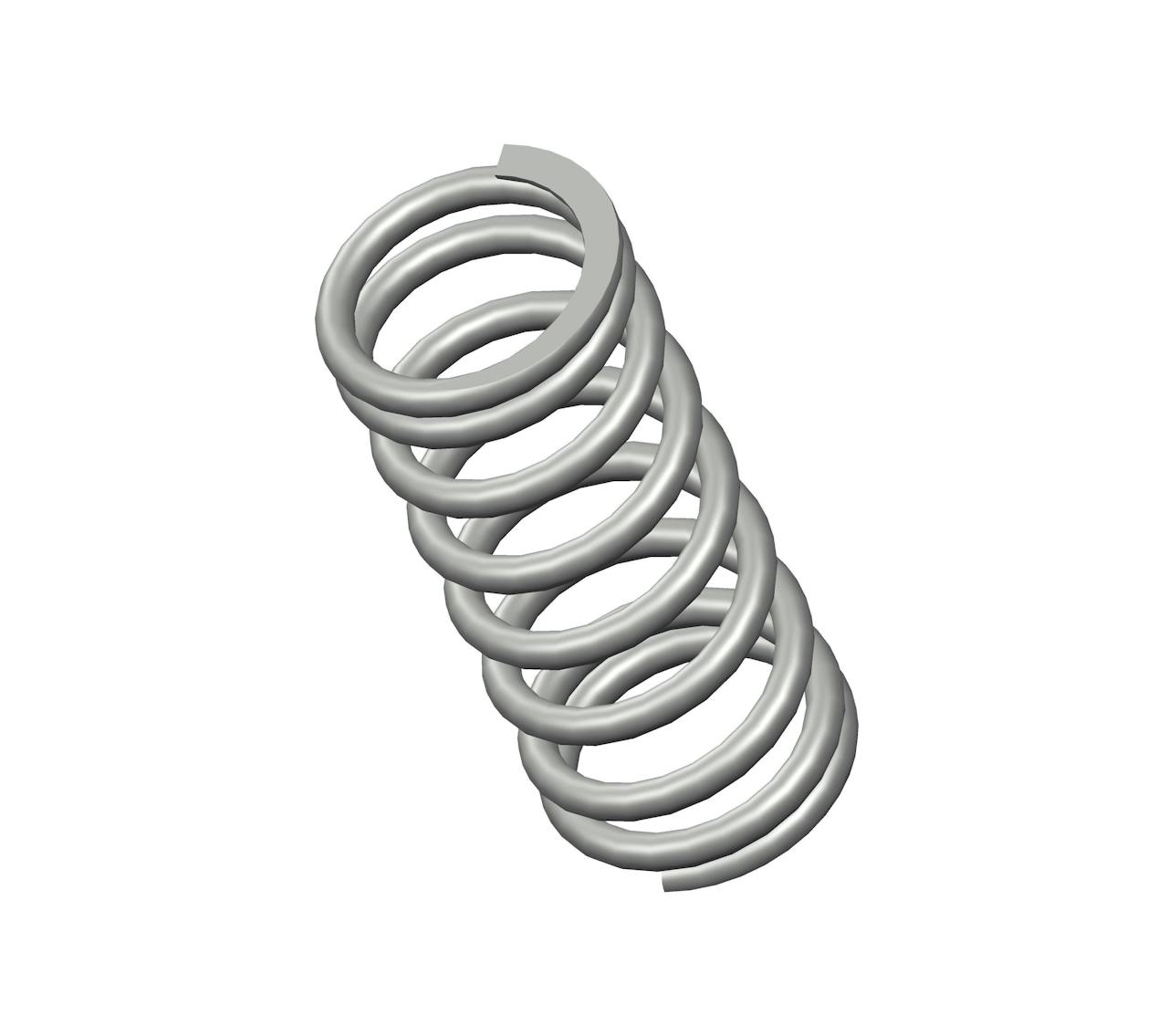

Compression spring manufactured from music wire with 8.5 coils and closed & ground ends. This spring features an O.D. of 0.234", and an I.D. of 0.178".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name A10-12
Ends Closed & Ground
Finish None
Free Length 0.56 in
Inside Diameter 0.178 in
Material Music Wire
Outside Diameter 0.234 in
Part Type Standard
Rate 14 lbs/in
SKU A10-12CS
Solid Length 0.24 in
Suggested Max Deflection 0.32 in
Suggested Max Load 4.5 lbf
Total Coils 8.5
Wire Diameter 0.028 in
The A10-12 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The A10-12CS compression spring is designed with a free length of 0.78" total of 8 coils, and a rate of 24 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The A10-12 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
