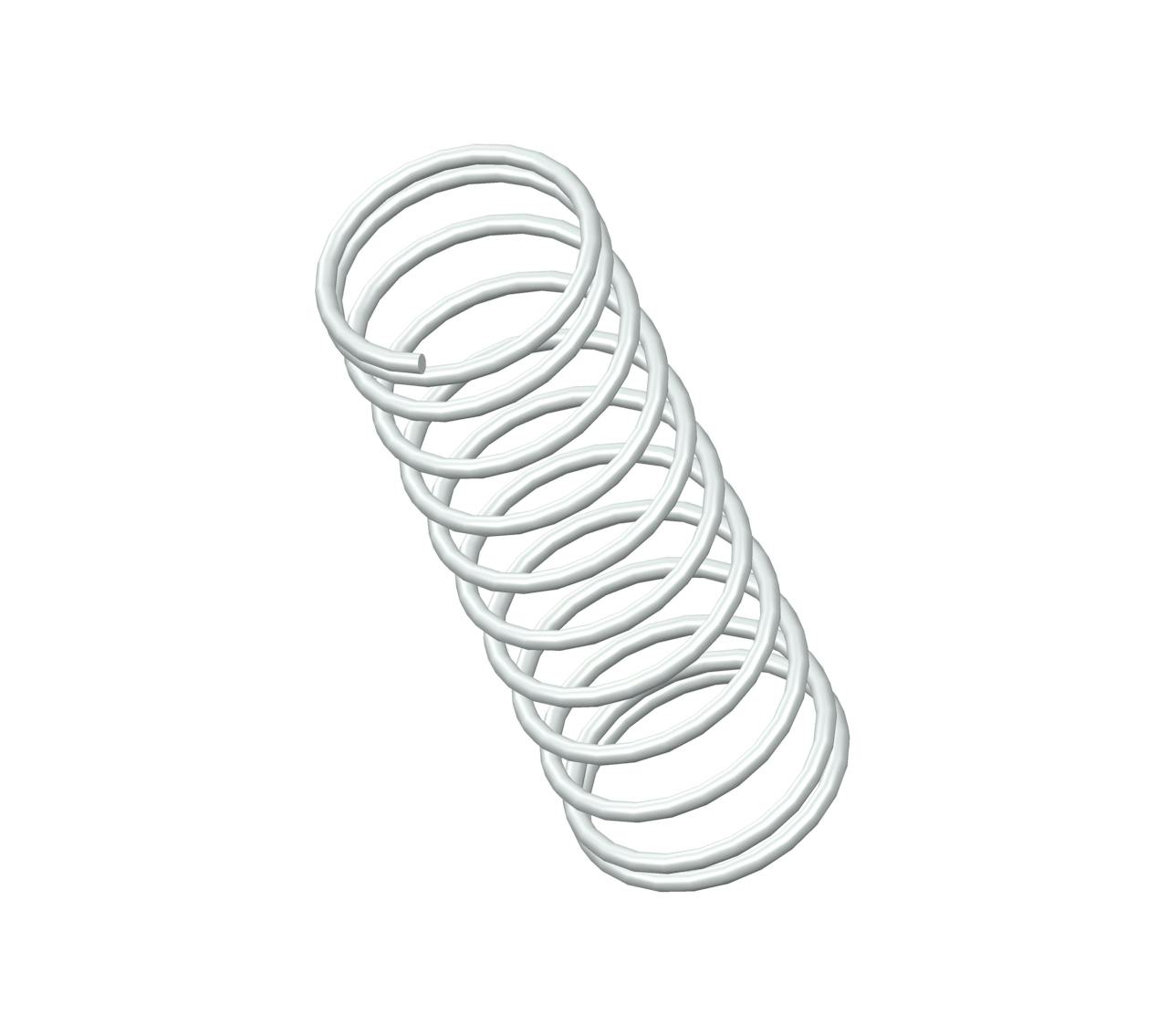

A-9CS - 0.5" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 11.5 coils and closed ends. This spring features an O.D. of 0.172", and an I.D. of 0.148".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A-9 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.5 in |
| Inside Diameter | 0.148 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.172 in |
| Part Type | Standard |
| Rate | 0.67 lbs/in |
| SKU | A-9CS |
| Solid Length | 0.15 in |
| Suggested Max Deflection | 0.35 in |
| Suggested Max Load | 0.23 lbf |
| Total Coils | 11.5 |
| Wire Diameter | 0.012 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A-9 |
| Ends | Closed |
| Finish | None |
| Free Length | 12.7 mm |
| Inside Diameter | 3.76 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 4.37 mm |
| Part Type | Standard |
| Rate | 0.12 N/mm |
| SKU | A-9CS |
| Solid Length | 3.81 mm |
| Suggested Max Deflection | 8.89 mm |
| Suggested Max Load | 1.02 N |
| Total Coils | 11.5 |
| Wire Diameter | 0.3 mm |
The A-9 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The A-9CS compression spring is designed with a free length of 0.94" total of 8 coils, and a rate of 1.2 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The A-9 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The A-9CS compression spring is designed with a free length of 0.94" total of 8 coils, and a rate of 1.2 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The A-9 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
