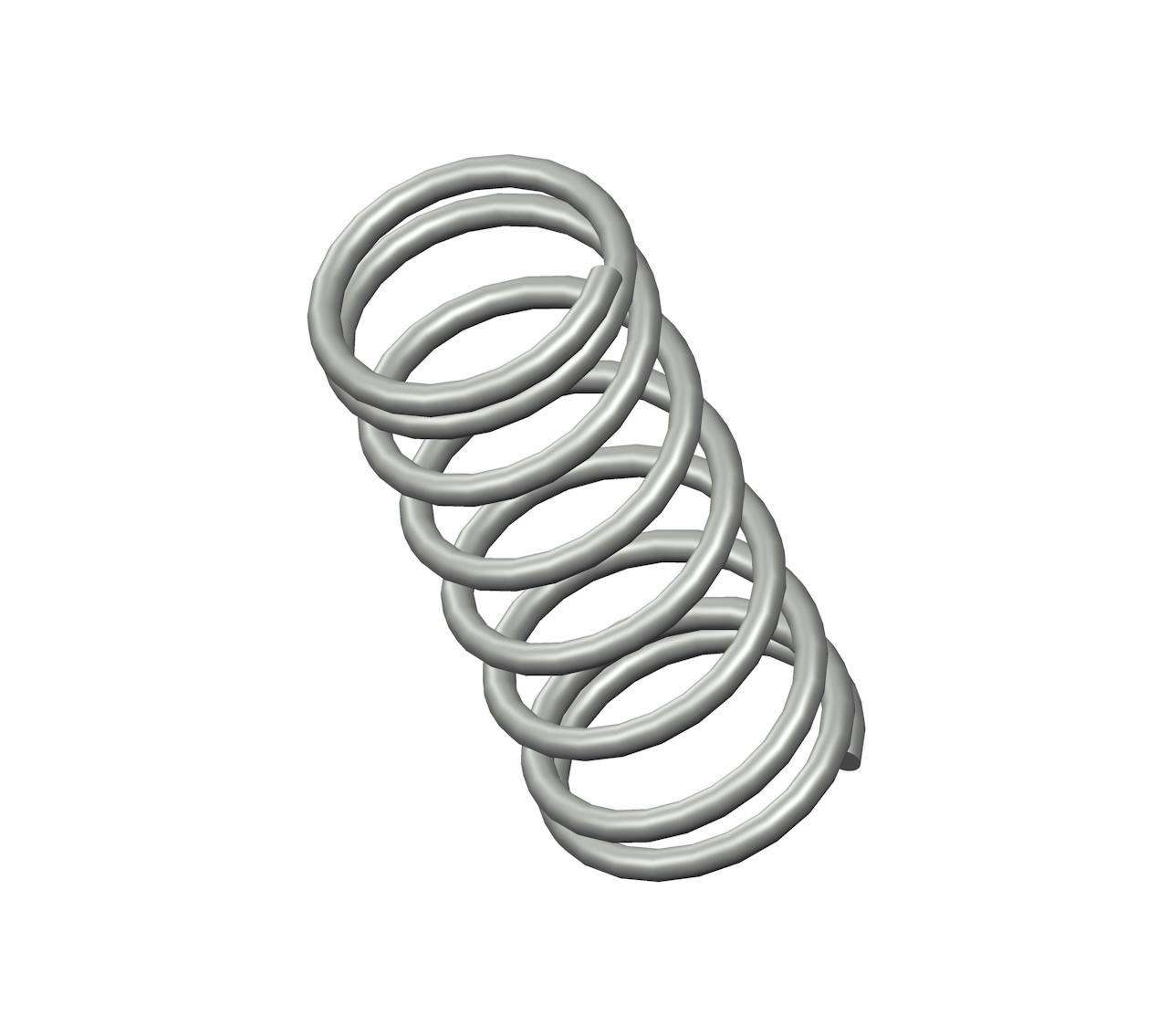

A-85CS - 0.56" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 8 coils and closed ends. This spring features an O.D. of 0.234", and an I.D. of 0.188".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A-85 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 0.56 in |
| Inside Diameter | 0.188 in |
| Material | Music Wire |
| Outside Diameter | 0.234 in |
| Part Type | Standard |
| Rate | 7.1 lbs/in |
| SKU | A-85CS |
| Solid Length | 0.18 in |
| Suggested Max Deflection | 0.38 in |
| Suggested Max Load | 2.7 lbf |
| Total Coils | 8 |
| Wire Diameter | 0.023 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A-85 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 14.22 mm |
| Inside Diameter | 4.78 mm |
| Material | Music Wire |
| Outside Diameter | 5.94 mm |
| Part Type | Standard |
| Rate | 1.24 N/mm |
| SKU | A-85CS |
| Solid Length | 4.57 mm |
| Suggested Max Deflection | 9.65 mm |
| Suggested Max Load | 12.01 N |
| Total Coils | 8 |
| Wire Diameter | 0.58 mm |
The compression spring A-85CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the A-85 compression spring design exhibits exceptional tensile strength and resilience.
The A-85 design is manufactured with a free length of 0.56", with an outer diameter of 0.234", an inner diameter of 0.188", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 7.1 lbs/in.
The A-85CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A-85 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A-85 design is manufactured with a free length of 0.56", with an outer diameter of 0.234", an inner diameter of 0.188", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 7.1 lbs/in.
The A-85CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A-85 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
