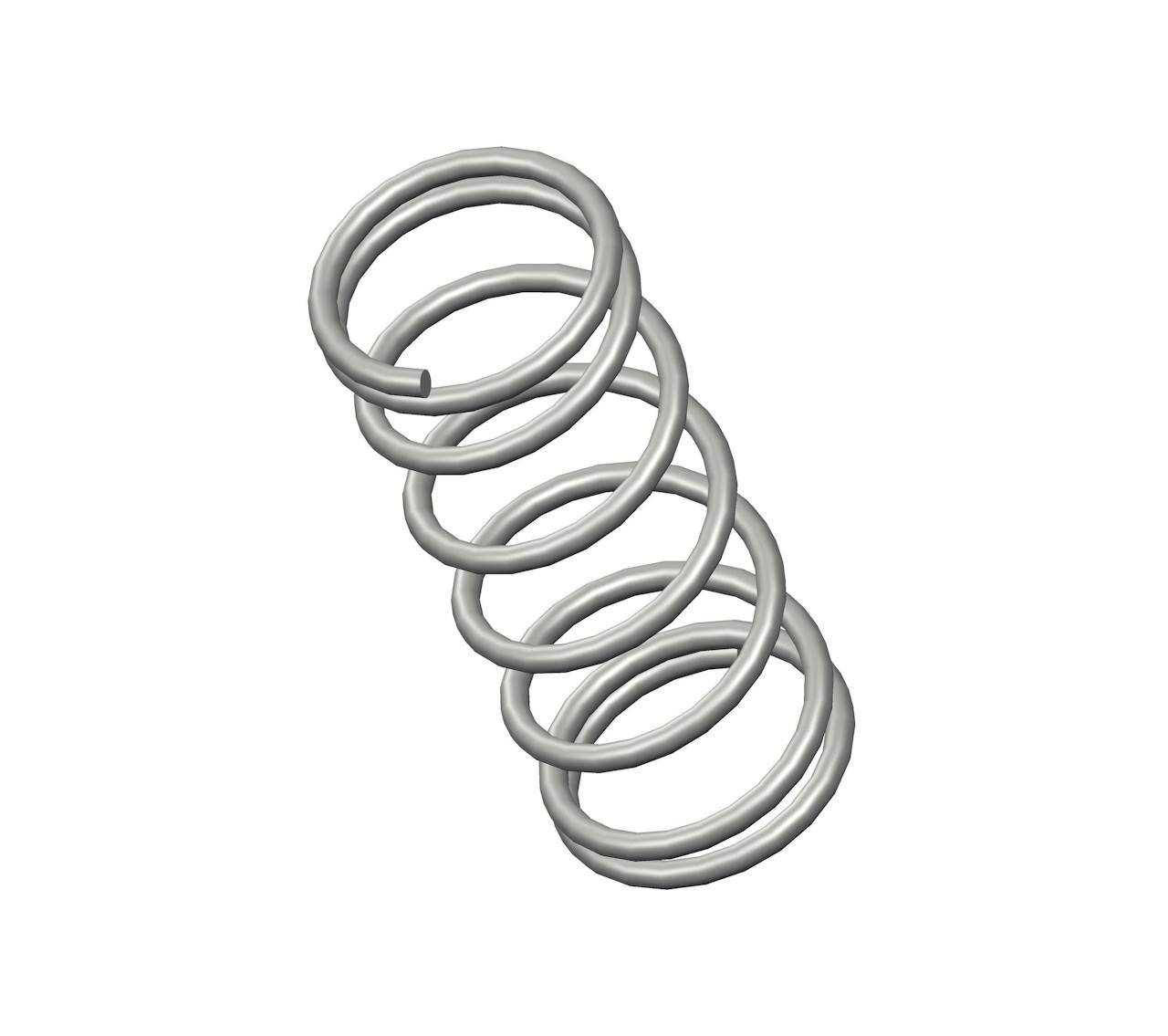

A-82CS - 1" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 7.5 coils and closed ends. This spring features an O.D. of 0.39", and an I.D. of 0.32".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A-82 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 1 in |
| Inside Diameter | 0.32 in |
| Material | Spring Steel |
| Outside Diameter | 0.39 in |
| Part Type | Standard |
| Rate | 8.8 lbs/in |
| SKU | A-82CS |
| Solid Length | 0.3 in |
| Suggested Max Deflection | 0.48 in |
| Suggested Max Load | 4.3 lbf |
| Total Coils | 7.5 |
| Wire Diameter | 0.035 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A-82 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 25.4 mm |
| Inside Diameter | 8.13 mm |
| Material | Spring Steel |
| Outside Diameter | 9.91 mm |
| Part Type | Standard |
| Rate | 1.54 N/mm |
| SKU | A-82CS |
| Solid Length | 7.62 mm |
| Suggested Max Deflection | 12.19 mm |
| Suggested Max Load | 19.13 N |
| Total Coils | 7.5 |
| Wire Diameter | 0.89 mm |
The compression spring A-82CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the A-82 compression spring design exhibits exceptional tensile strength and resilience.
The A-82 design is manufactured with a free length of 1", with an outer diameter of 0.39", an inner diameter of 0.32", and a total of 7.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 8.8 lbs/in.
The A-82CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A-82 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A-82 design is manufactured with a free length of 1", with an outer diameter of 0.39", an inner diameter of 0.32", and a total of 7.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 8.8 lbs/in.
The A-82CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A-82 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
