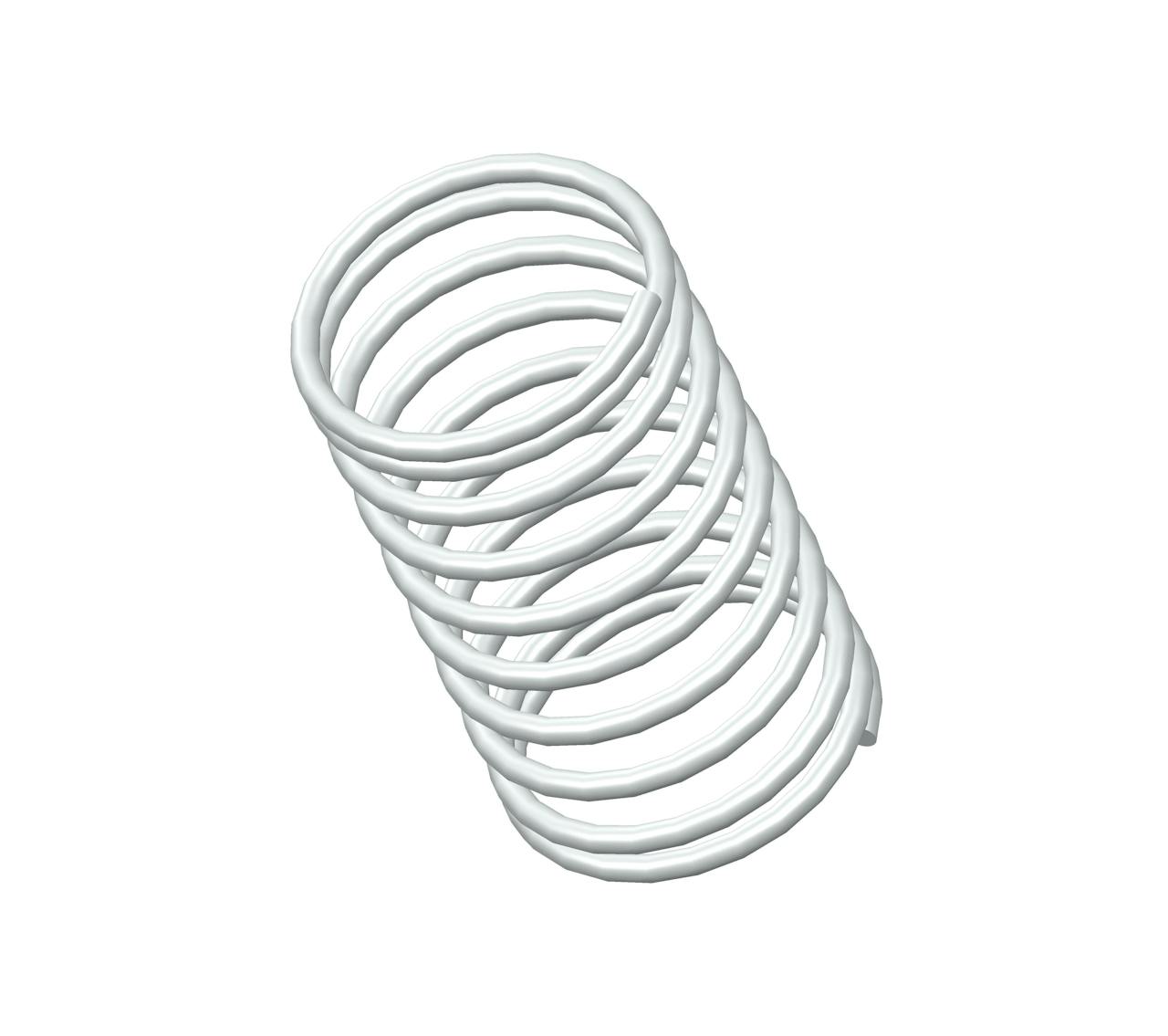

A-60-ACS - 0.63" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 10 coils and closed ends. This spring features an O.D. of 0.343", and an I.D. of 0.293".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A-60-A |
| Ends | Closed |
| Finish | None |
| Free Length | 0.63 in |
| Inside Diameter | 0.293 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.343 in |
| Part Type | Standard |
| Rate | 1.9 lbs/in |
| SKU | A-60-ACS |
| Solid Length | 0.28 in |
| Suggested Max Deflection | 0.35 in |
| Suggested Max Load | 0.68 lbf |
| Total Coils | 10 |
| Wire Diameter | 0.025 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A-60-A |
| Ends | Closed |
| Finish | None |
| Free Length | 16 mm |
| Inside Diameter | 7.44 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 8.71 mm |
| Part Type | Standard |
| Rate | 0.33 N/mm |
| SKU | A-60-ACS |
| Solid Length | 7.11 mm |
| Suggested Max Deflection | 8.89 mm |
| Suggested Max Load | 3.02 N |
| Total Coils | 10 |
| Wire Diameter | 0.64 mm |
The compression spring A-60-ACS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the A-60-A compression spring design exhibits exceptional tensile strength and resilience.
The A-60-A design is manufactured with a free length of 0.63", with an outer diameter of 0.343", an inner diameter of 0.293", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.9 lbs/in.
The A-60-ACS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A-60-A design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A-60-A design is manufactured with a free length of 0.63", with an outer diameter of 0.343", an inner diameter of 0.293", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.9 lbs/in.
The A-60-ACS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A-60-A design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
