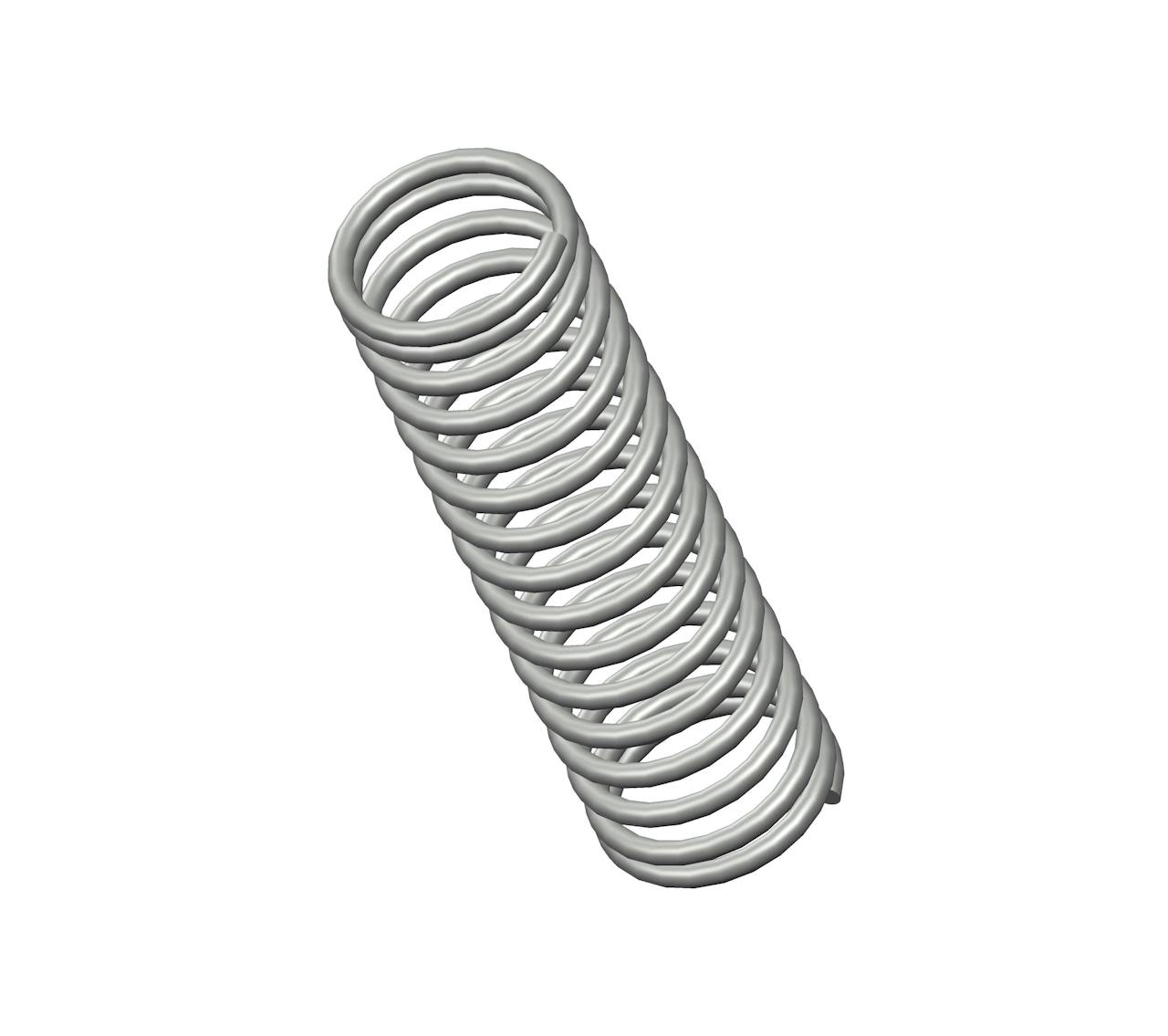

932CS - 1" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 16 coils and closed ends. This spring features an O.D. of 0.281", and an I.D. of 0.225".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 932 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 1 in |
| Inside Diameter | 0.225 in |
| Material | Music Wire |
| Outside Diameter | 0.281 in |
| Part Type | Standard |
| Rate | 3.9 lbs/in |
| SKU | 932CS |
| Solid Length | 0.48 in |
| Suggested Max Deflection | 0.52 in |
| Suggested Max Load | 2 lbf |
| Total Coils | 16 |
| Wire Diameter | 0.028 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 932 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 25.4 mm |
| Inside Diameter | 5.72 mm |
| Material | Music Wire |
| Outside Diameter | 7.14 mm |
| Part Type | Standard |
| Rate | 0.68 N/mm |
| SKU | 932CS |
| Solid Length | 12.19 mm |
| Suggested Max Deflection | 13.21 mm |
| Suggested Max Load | 8.9 N |
| Total Coils | 16 |
| Wire Diameter | 0.71 mm |
The compression spring 932CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 932 compression spring design exhibits exceptional tensile strength and resilience.
The 932 design is manufactured with a free length of 1", with an outer diameter of 0.281", an inner diameter of 0.225", and a total of 16 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.9 lbs/in.
The 932CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 932 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 932 design is manufactured with a free length of 1", with an outer diameter of 0.281", an inner diameter of 0.225", and a total of 16 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.9 lbs/in.
The 932CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 932 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
