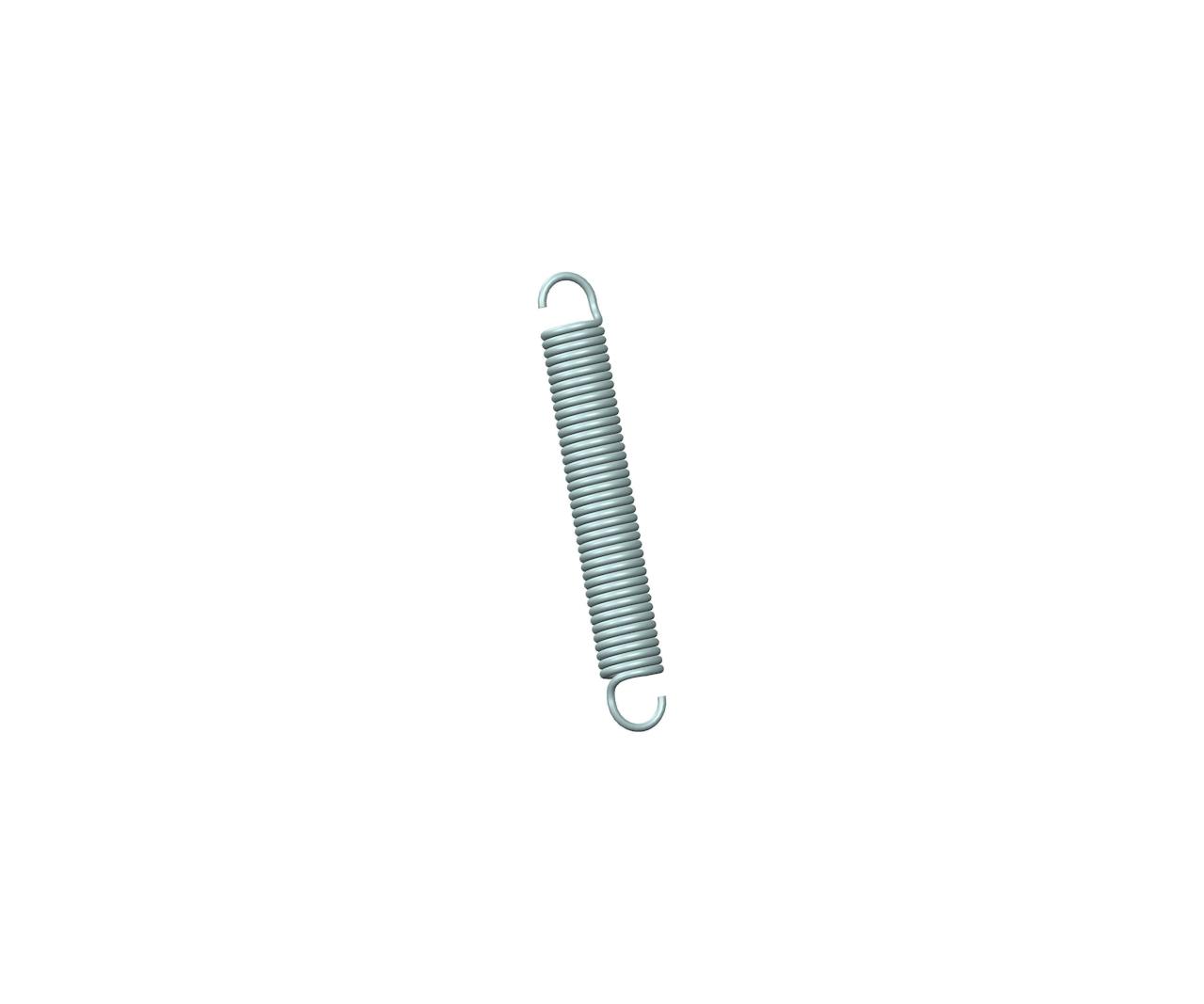

90286SCS - 1.38 Inch 316 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 316 Stainless Steel. This spring features an O.D. of 0.188 Inch and an initial tension of 0.42 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 90286S
Ends Machine Hook
Finish Passivated
Free Length 1.38 in
Initial Tension 0.42 lb
Material 316 Stainless Steel
Max Deflection 0.327 in
Max Load 1.51 lbf
Measurement Units Standard
Outside Diameter 0.188 in
Rate 3.33 lbs/in
SKU 90286SCS
Wire Diameter 0.026 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 90286S
Ends Machine Hook
Finish Passivated
Free Length 35.05 mm
Initial Tension 0.19 kg
Material 316 Stainless Steel
Max Deflection 8.31 mm
Max Load 6.72 N
Measurement Units Standard
Outside Diameter 4.78 mm
Rate 0.58 N-mm
SKU 90286SCS
Wire Diameter 0.66 mm
