Century Spring

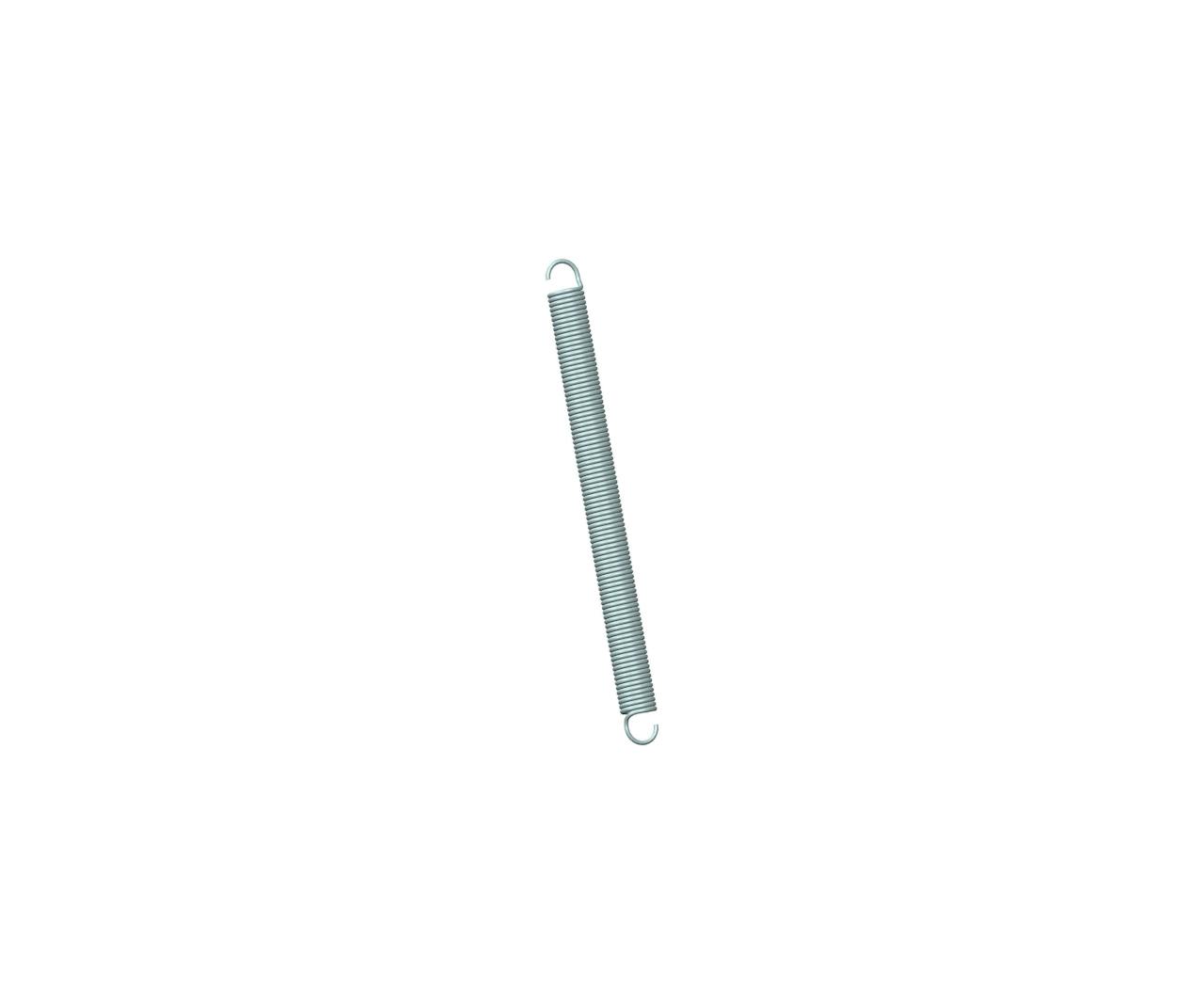

90278SCS - 2.5 Inch 316 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 316 Stainless Steel. This spring features an O.D. of 0.188 Inch and an initial tension of 0.33 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 90278S
Ends Machine Hook
Finish Passivated
Initial Tension 0.33 lb
Length 2.5 in
Material 316 Stainless Steel
Outside Diameter 0.188 in
Part Type Standard
Rate 1.05 lbs/in
SKU 90278SCS
Sugg Max Deflection 0.816 in
Sugg Max Load 1.19 lbf
Wind Direction Left
Wire Diameter 0.024 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 90278S
Ends Machine Hook
Finish Passivated
Initial Tension 0.15 kg
Length 63.5 mm
Material 316 Stainless Steel
Outside Diameter 4.78 mm
Part Type Standard
Rate 0.18 N/mm
SKU 90278SCS
Sugg Max Deflection 20.73 mm
Sugg Max Load 5.29 N
Wind Direction Left
Wire Diameter 0.61 mm
