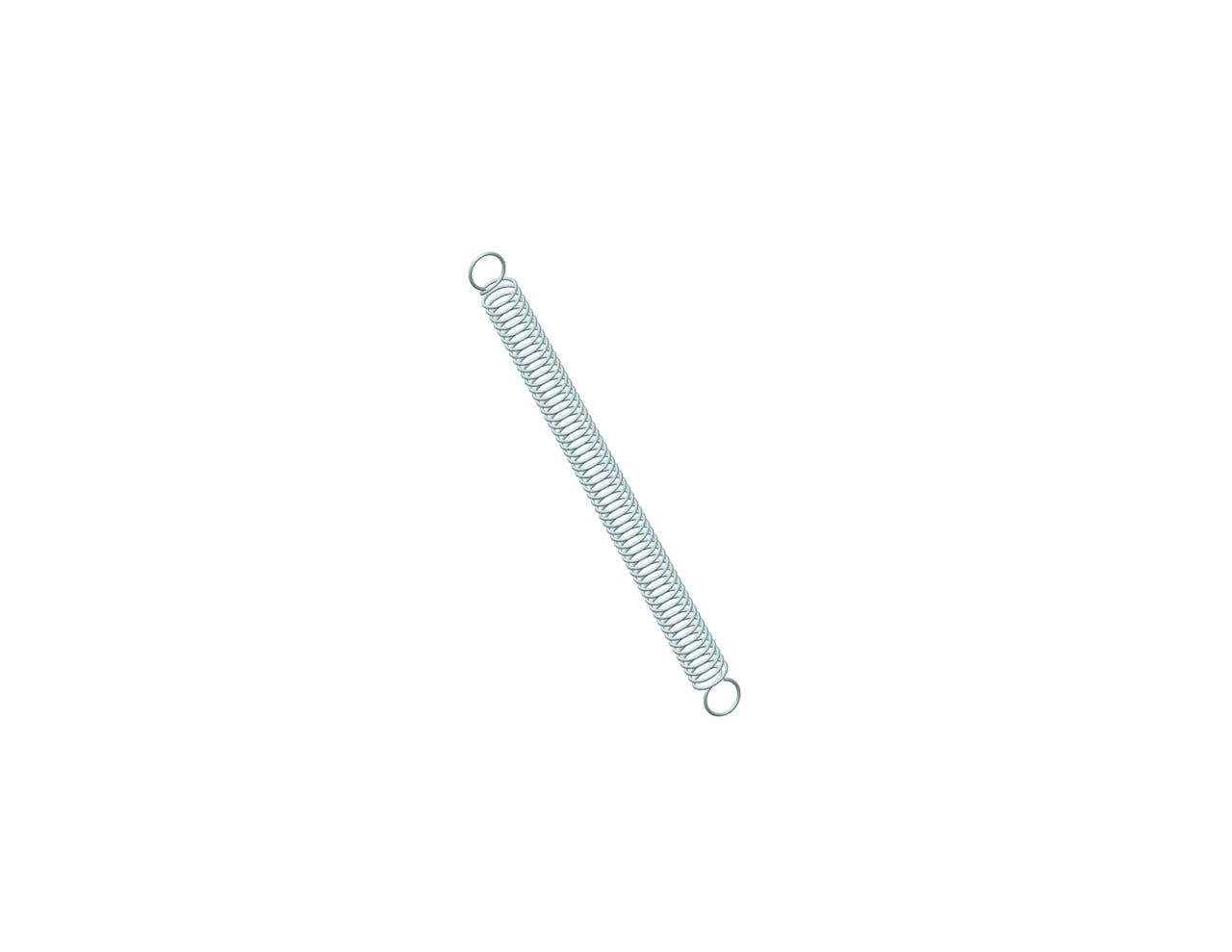

90214SCS - 1.25 Inch 316 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 316 Stainless Steel. This spring features an O.D. of 0.188 Inch and an initial tension of 0.07 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 90214S
Ends Full Loop
Finish Passivated
Free Length 1.25 in
Initial Tension 0.07 lb
Material 316 Stainless Steel
Max Deflection 1.248 in
Max Load 0.42 lbf
Measurement Units Standard
Outside Diameter 0.188 in
Rate 0.28 lbs/in
SKU 90214SCS
Wire Diameter 0.016 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 90214S
Ends Full Loop
Finish Passivated
Free Length 31.75 mm
Initial Tension 0.03 kg
Material 316 Stainless Steel
Max Deflection 31.7 mm
Max Load 1.87 N
Measurement Units Standard
Outside Diameter 4.78 mm
Rate 0.05 N-mm
SKU 90214SCS
Wire Diameter 0.41 mm
