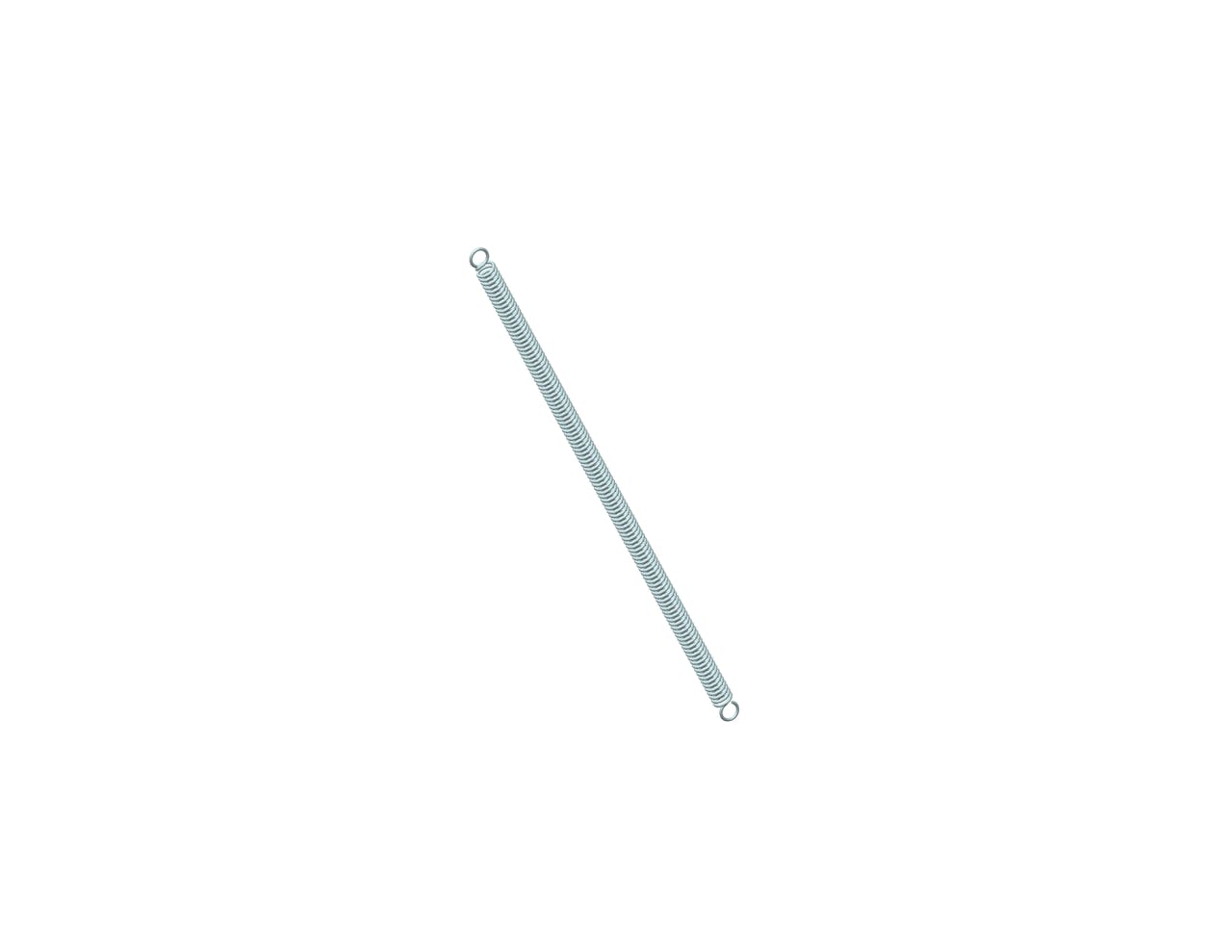

90170SCS - 2.25 Inch 316 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 316 Stainless Steel. This spring features an O.D. of 0.125 Inch and an initial tension of 0.25 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 90170S
Ends Full Loop
Finish Passivated
Free Length 2.25 in
Initial Tension 0.25 lb
Material 316 Stainless Steel
Max Deflection 0.553 in
Max Load 0.77 lbf
Measurement Units Standard
Outside Diameter 0.125 in
Rate 0.94 lbs/in
SKU 90170SCS
Wire Diameter 0.018 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 90170S
Ends Full Loop
Finish Passivated
Free Length 57.15 mm
Initial Tension 0.11 kg
Material 316 Stainless Steel
Max Deflection 14.05 mm
Max Load 3.42 N
Measurement Units Standard
Outside Diameter 3.18 mm
Rate 0.16 N-mm
SKU 90170SCS
Wire Diameter 0.46 mm
