Century Spring

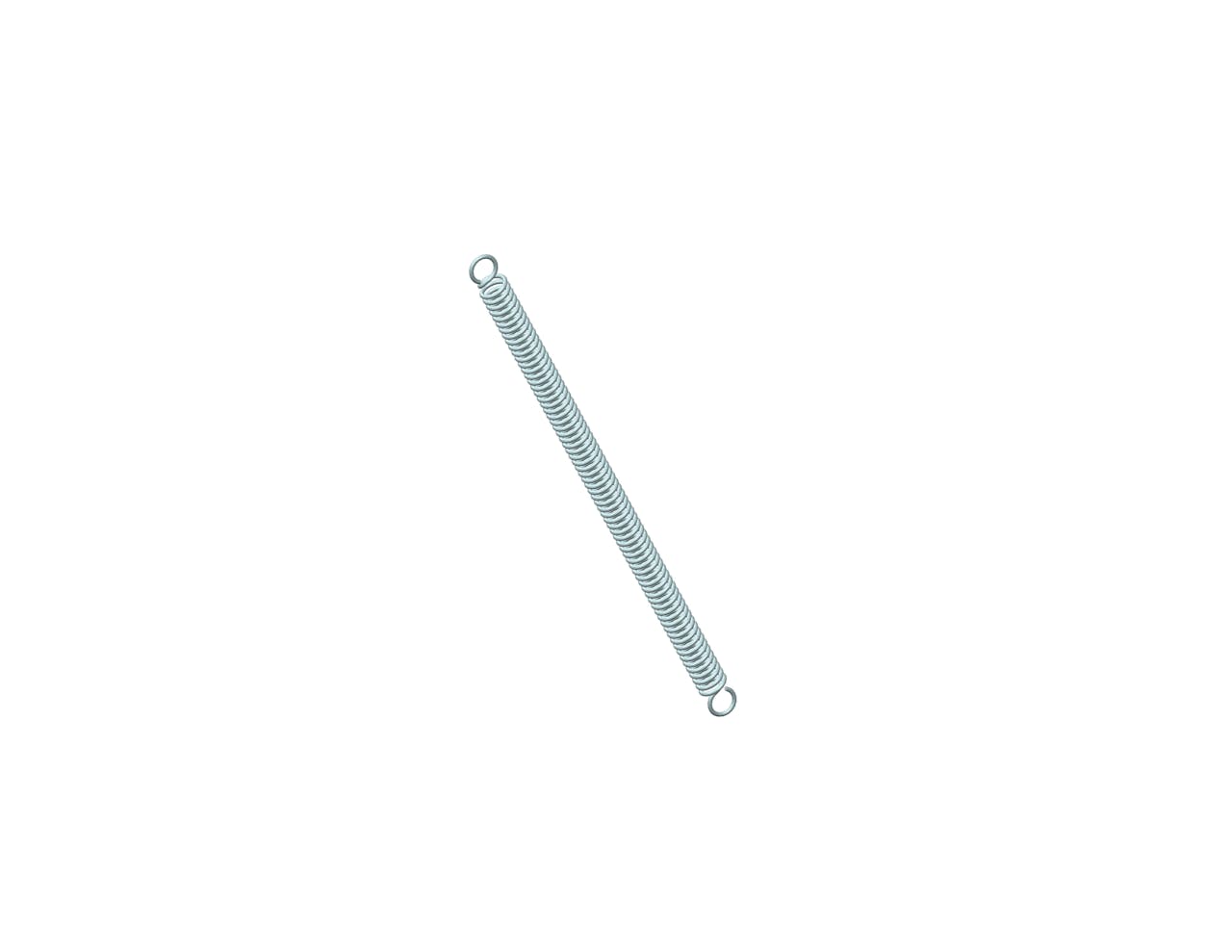

90167SCS - 1.5 Inch 316 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 316 Stainless Steel. This spring features an O.D. of 0.125 Inch and an initial tension of 0.25 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 90167S
Ends Full Loop
Finish Passivated
Initial Tension 0.25 lb
Length 1.5 in
Material 316 Stainless Steel
Outside Diameter 0.125 in
Part Type Standard
Rate 1.5 lbs/in
SKU 90167SCS
Sugg Max Deflection 0.347 in
Sugg Max Load 0.77 lbf
Wind Direction Left
Wire Diameter 0.018 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 90167S
Ends Full Loop
Finish Passivated
Initial Tension 0.11 kg
Length 38.1 mm
Material 316 Stainless Steel
Outside Diameter 3.18 mm
Part Type Standard
Rate 0.26 N/mm
SKU 90167SCS
Sugg Max Deflection 8.81 mm
Sugg Max Load 3.42 N
Wind Direction Left
Wire Diameter 0.46 mm
