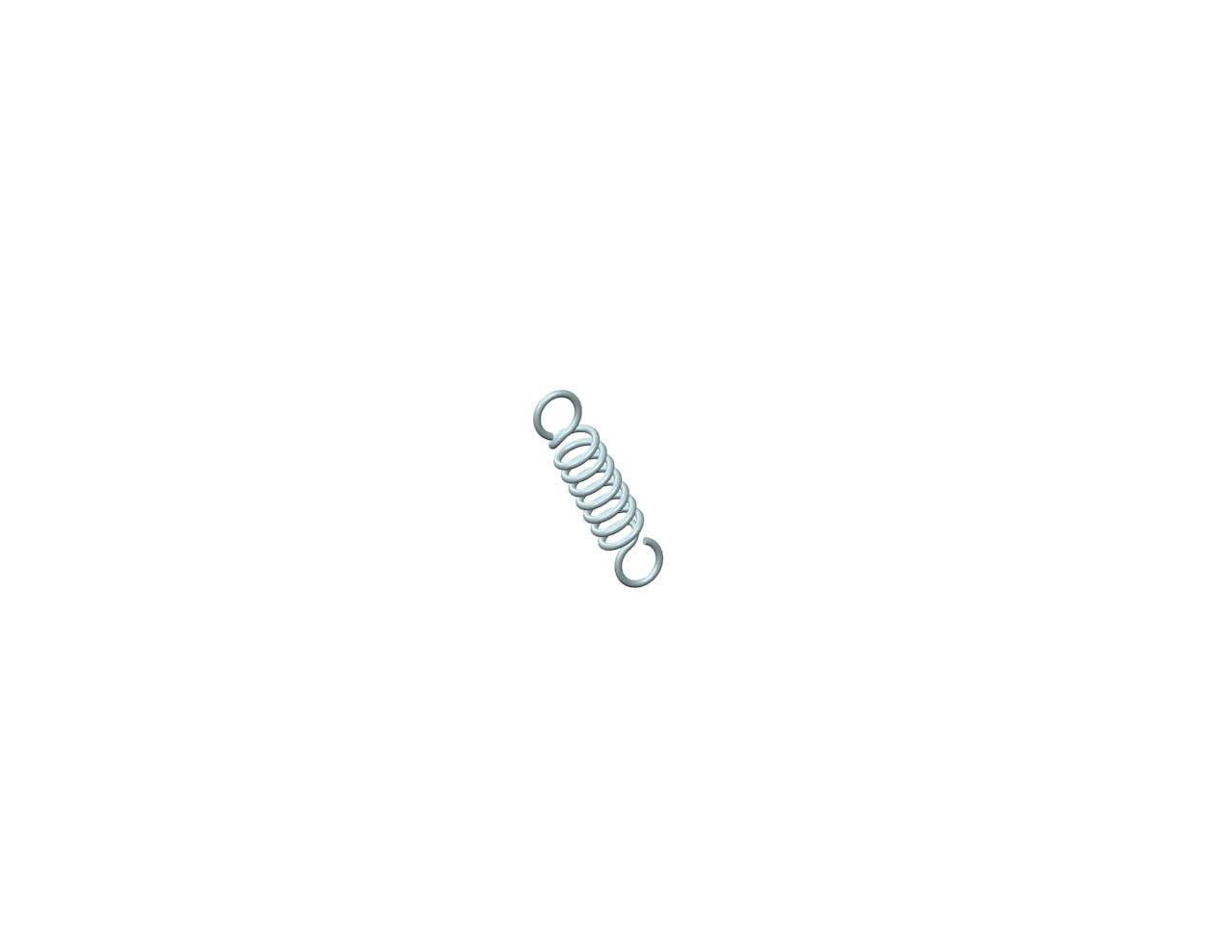

90158SCS - 0.38 Inch 316 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 316 Stainless Steel. This spring features an O.D. of 0.125 Inch and an initial tension of 0.25 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 90158S
Ends Full Loop
Finish Passivated
Free Length 0.38 in
Initial Tension 0.25 lb
Material 316 Stainless Steel
Max Deflection 0.048 in
Max Load 0.77 lbf
Measurement Units Standard
Outside Diameter 0.125 in
Rate 10.77 lbs/in
SKU 90158SCS
Wire Diameter 0.018 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 90158S
Ends Full Loop
Finish Passivated
Free Length 9.65 mm
Initial Tension 0.11 kg
Material 316 Stainless Steel
Max Deflection 1.22 mm
Max Load 3.42 N
Measurement Units Standard
Outside Diameter 3.18 mm
Rate 1.89 N-mm
SKU 90158SCS
Wire Diameter 0.46 mm
