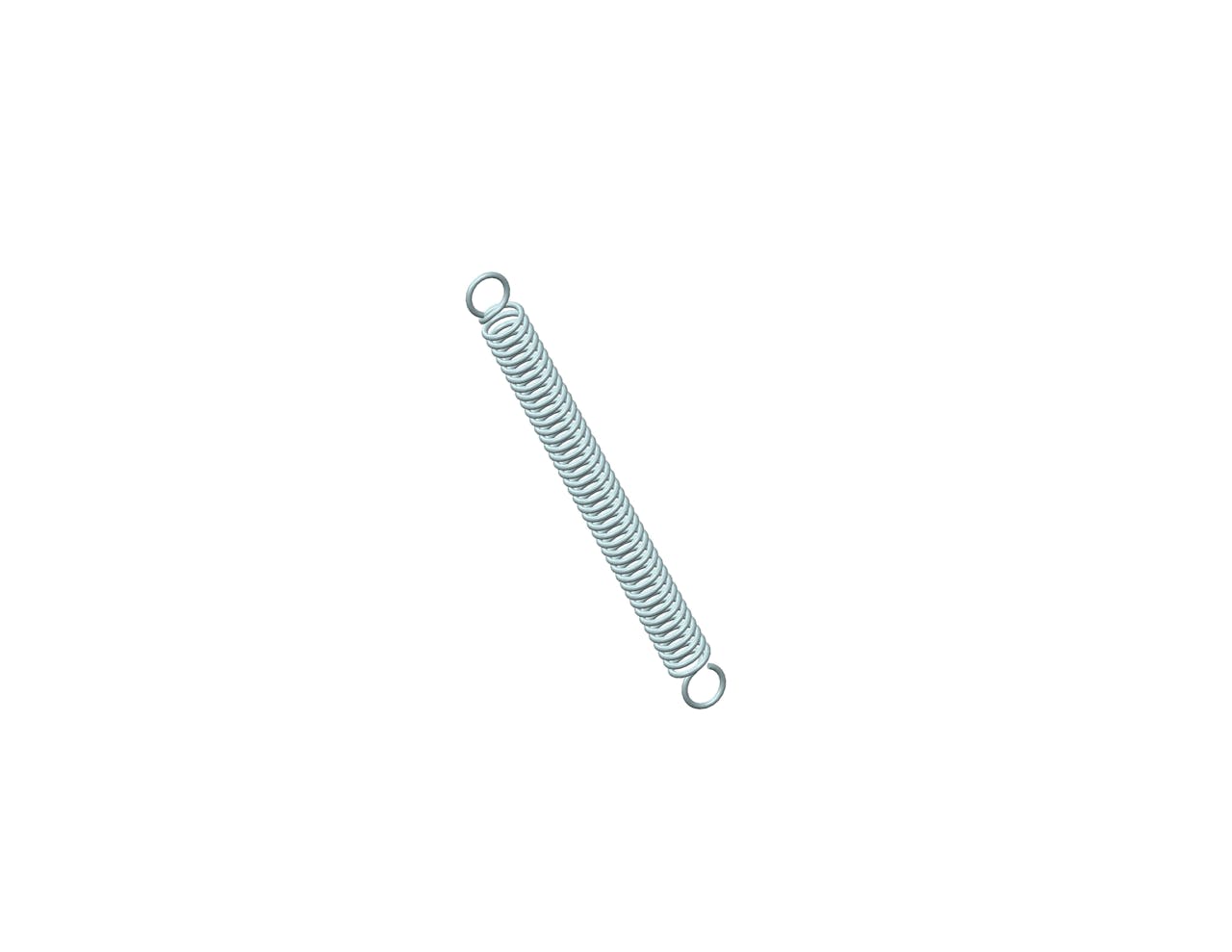

90150SCS - 0.88 Inch 316 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 316 Stainless Steel. This spring features an O.D. of 0.125 Inch and an initial tension of 0.17 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 90150S
Ends Full Loop
Finish Passivated
Initial Tension 0.17 lb
Length 0.88 in
Material 316 Stainless Steel
Outside Diameter 0.125 in
Part Type Standard
Rate 1.46 lbs/in
SKU 90150SCS
Sugg Max Deflection 0.27 in
Sugg Max Load 0.56 lbf
Wire Diameter 0.016 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 90150S
Ends Full Loop
Finish Passivated
Initial Tension 0.08 kg
Length 22.35 mm
Material 316 Stainless Steel
Outside Diameter 3.18 mm
Part Type Standard
Rate 0.26 N/mm
SKU 90150SCS
Sugg Max Deflection 6.86 mm
Sugg Max Load 2.49 N
Wire Diameter 0.41 mm
