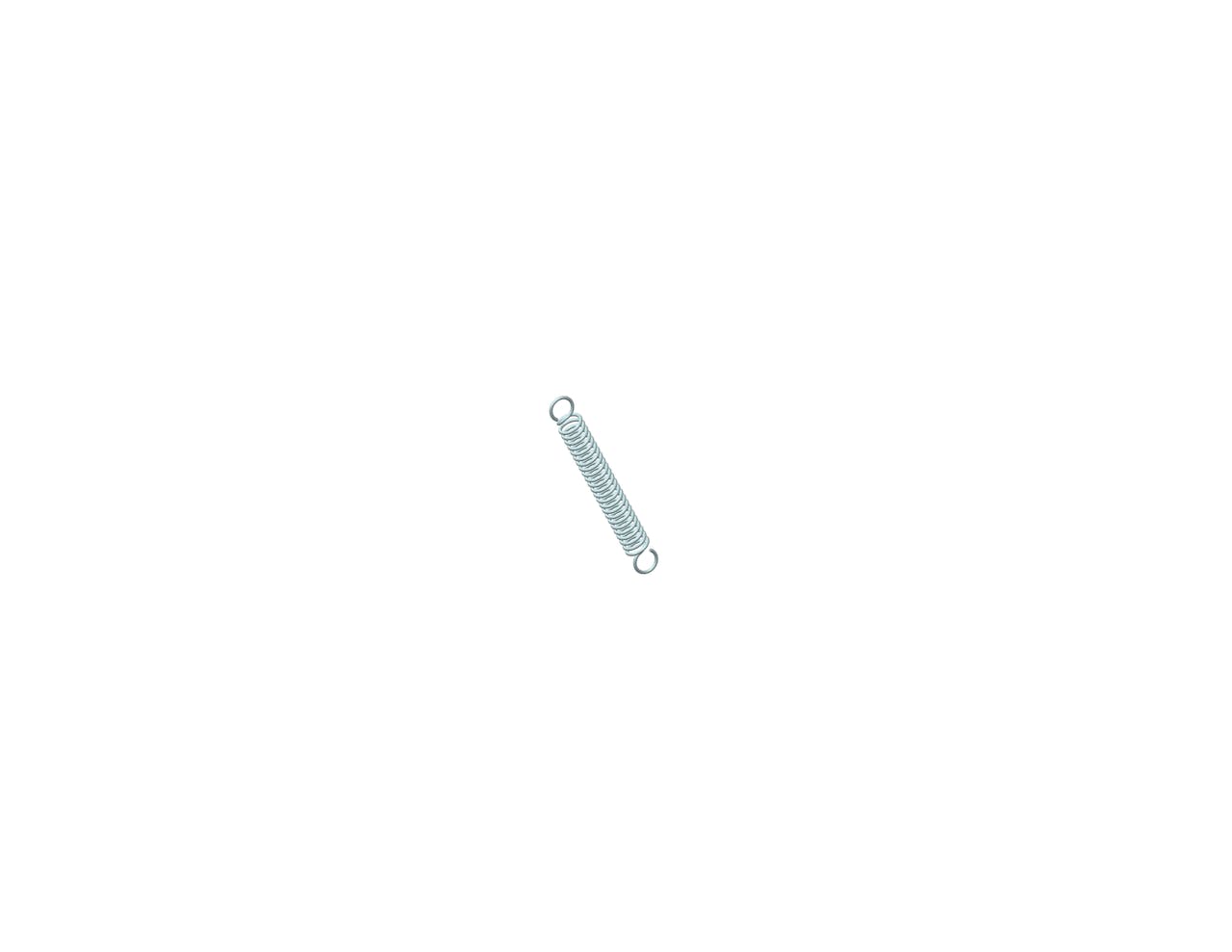

90006SCS - 0.31 Inch 316 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 316 Stainless Steel. This spring features an O.D. of 0.063 Inch and an initial tension of 0.03 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 90006S
Ends Full Loop
Finish Passivated
Free Length 0.31 in
Initial Tension 0.03 lb
Material 316 Stainless Steel
Max Deflection 0.106 in
Max Load 0.16 lbf
Measurement Units Standard
Outside Diameter 0.063 in
Rate 1.17 lbs/in
SKU 90006SCS
Wire Diameter 0.008 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 90006S
Ends Full Loop
Finish Passivated
Free Length 7.87 mm
Initial Tension 0.01 kg
Material 316 Stainless Steel
Max Deflection 2.69 mm
Max Load 0.71 N
Measurement Units Standard
Outside Diameter 1.6 mm
Rate 0.2 N-mm
SKU 90006SCS
Wire Diameter 0.2 mm
