Century Spring

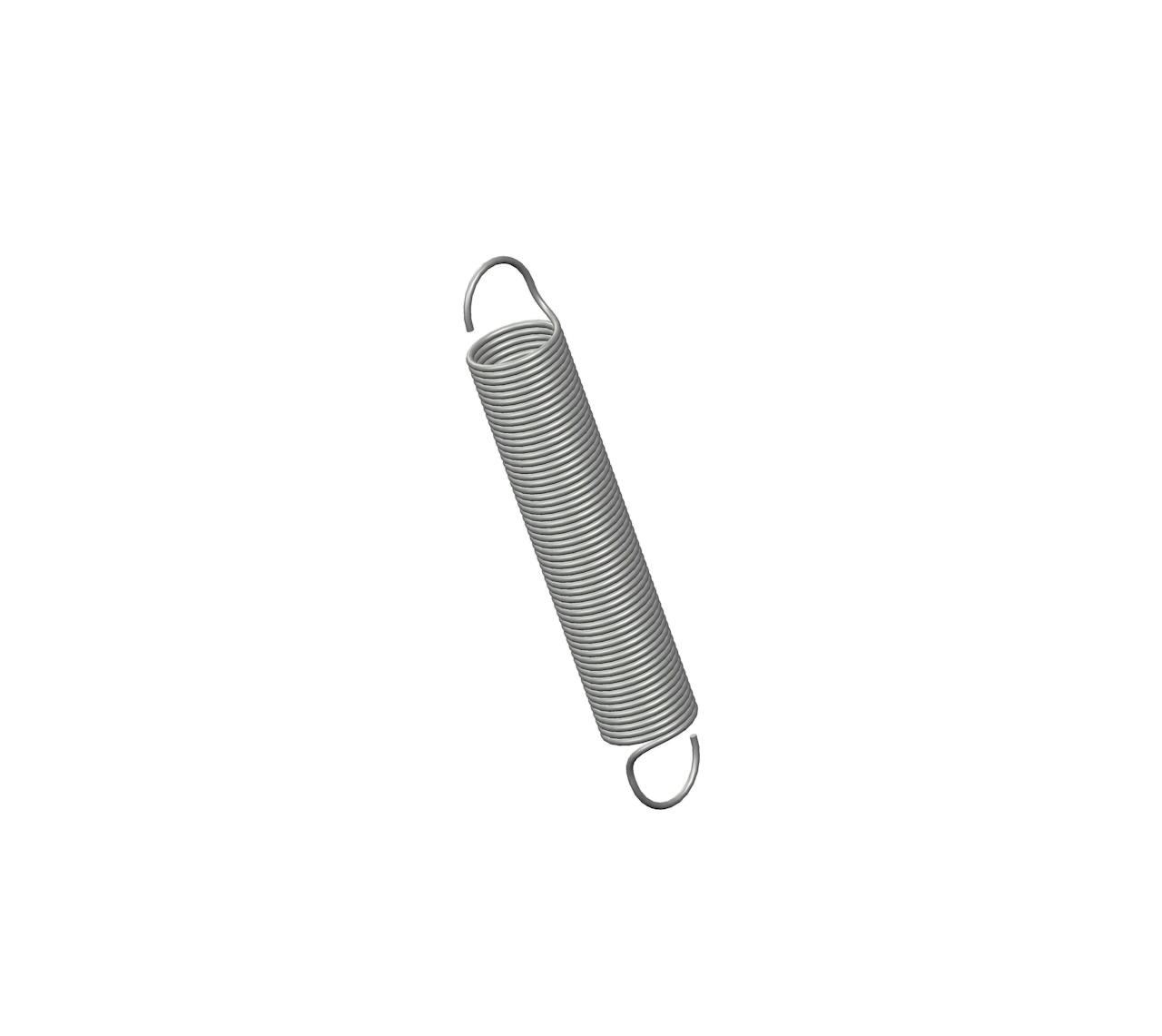

88CS - 2.75 Inch High Carbon Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 0.437 Inch and an initial tension of 0.3 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 88
Ends Machine Hook
Finish Zinc
Initial Tension 0.3 lb
Length 2.75 in
Material High Carbon Steel
Outside Diameter 0.437 in
Part Type Standard
Rate 0.5 lbs/in
SKU 88CS
Sugg Max Deflection 5.9 in
Sugg Max Load 3.3 lbf
Wind Direction Left
Wire Diameter 0.034 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 88
Ends Machine Hook
Finish Zinc
Initial Tension 0.14 kg
Length 69.85 mm
Material High Carbon Steel
Outside Diameter 11.1 mm
Part Type Standard
Rate 0.09 N/mm
SKU 88CS
Sugg Max Deflection 149.86 mm
Sugg Max Load 14.68 N
Wind Direction Left
Wire Diameter 0.86 mm
