Century Spring

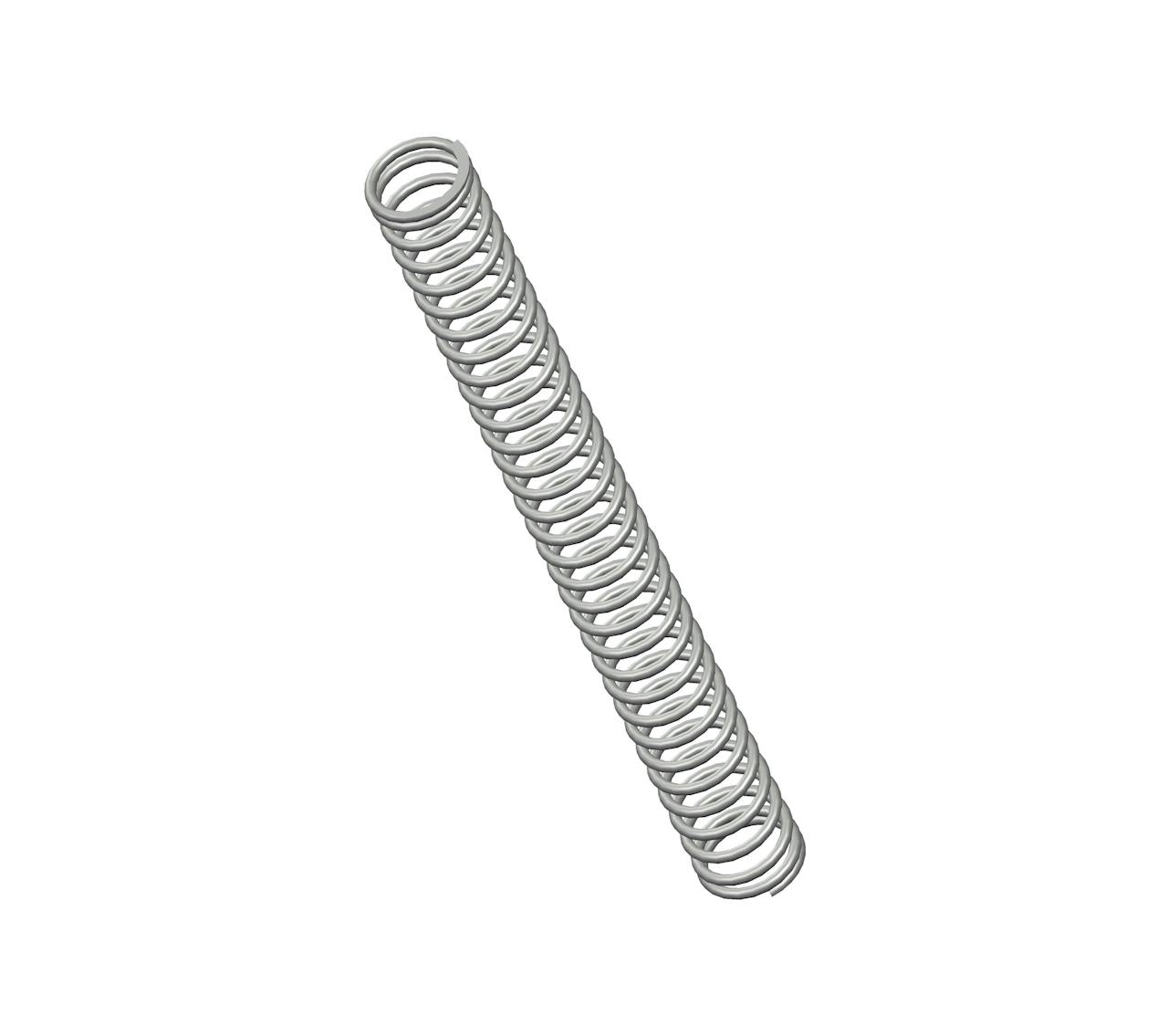

867 - 11 Inch Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from Spring Steel with 32.3 coils and Closed ends. This spring features an O.D. of 1.125 Inch, and an I.D. of 0.885 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 867
Ends Closed
Finish Zinc
Free Length 11 in
Inside Diameter 0.885 in
Material Spring Steel
Outside Diameter 1.125 in
Part Type Standard
Rate 9.7 lbs/in
SKU 867CS
Solid Length 4 in
Suggested Max Deflection 5 in
Suggested Max Load 48 lbf
Total Coils 32.3
Wire Diameter 0.12 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 867
Ends Closed
Finish Zinc
Free Length 279.4 mm
Inside Diameter 22.48 mm
Material Spring Steel
Outside Diameter 28.58 mm
Part Type Standard
Rate 1.7 N/mm
SKU 867CS
Solid Length 101.6 mm
Suggested Max Deflection 127 mm
Suggested Max Load 213.5 N
Total Coils 32.3
Wire Diameter 3.05 mm
The 867CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.12" diameter hard drawn, the 867 spring design exhibits reliable strength across its 32.3 active coils, withstanding repeated compression cycles with a maximum load of 48 lbf without succumbing to fatigue.

We manufacture the 867 design to provide a compression spring that is 11" long at rest and provides a consistent rate of 9.7 lbs/in along its recommended maximum of 5" deflection. For best results, your application should fully accommodate the inner (0.885") and outer (1.125") diameters of this spring and be designed for its closed end configuration.
