RAF Electronic Hardware

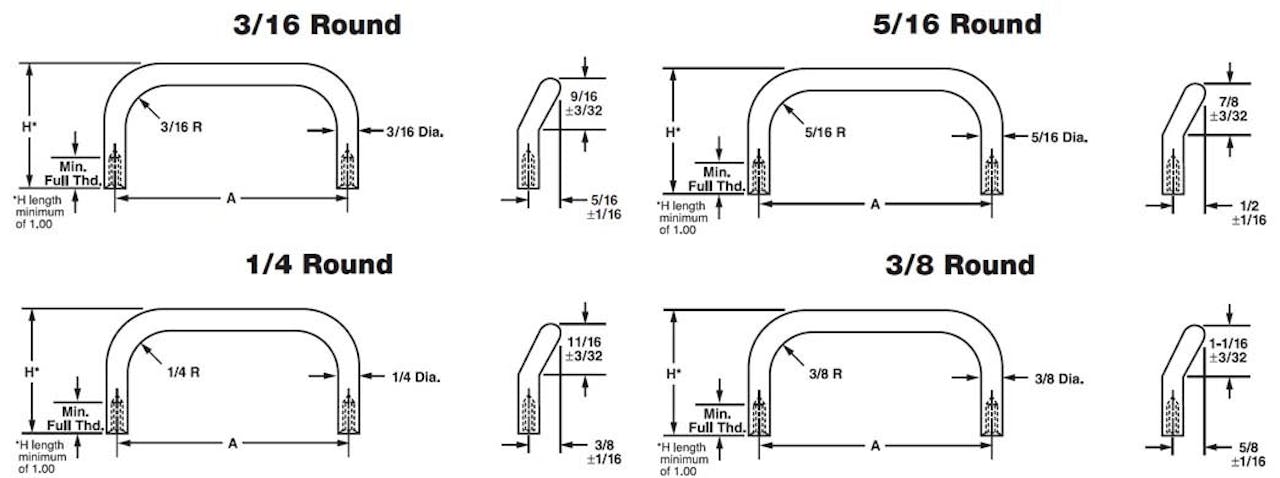

8305-832-ss - Round Non-Folding Handle with Offset and 8-32Threads

Standard Round non-folding, 8-32 internal-threaded handle with an offset.

Download CAD
Unit System
Specs (in standard)
Label Value
A 4.5625 in
B 0.3125 in
Brand RAF
Coating None
Coating Color None
Display Name 8305-832-ss
Finish None
H 1.75 in
Material Stainless Steel
Measurement Units Standard
Model Number 8305-832
SKU 8305-832-ss
Shape Round
Shape Size 0.375 in
Thread Size 8-32
Specs (in metric)
Label Value
A 115.89 mm
B 7.94 mm
Brand RAF
Coating None
Coating Color None
Display Name 8305-832-ss
Finish None
H 44.45 mm
Material Stainless Steel
Measurement Units Standard
Model Number 8305-832
SKU 8305-832-ss
Shape Round
Shape Size 9.53 mm
Thread Size 8-32
