Century Spring

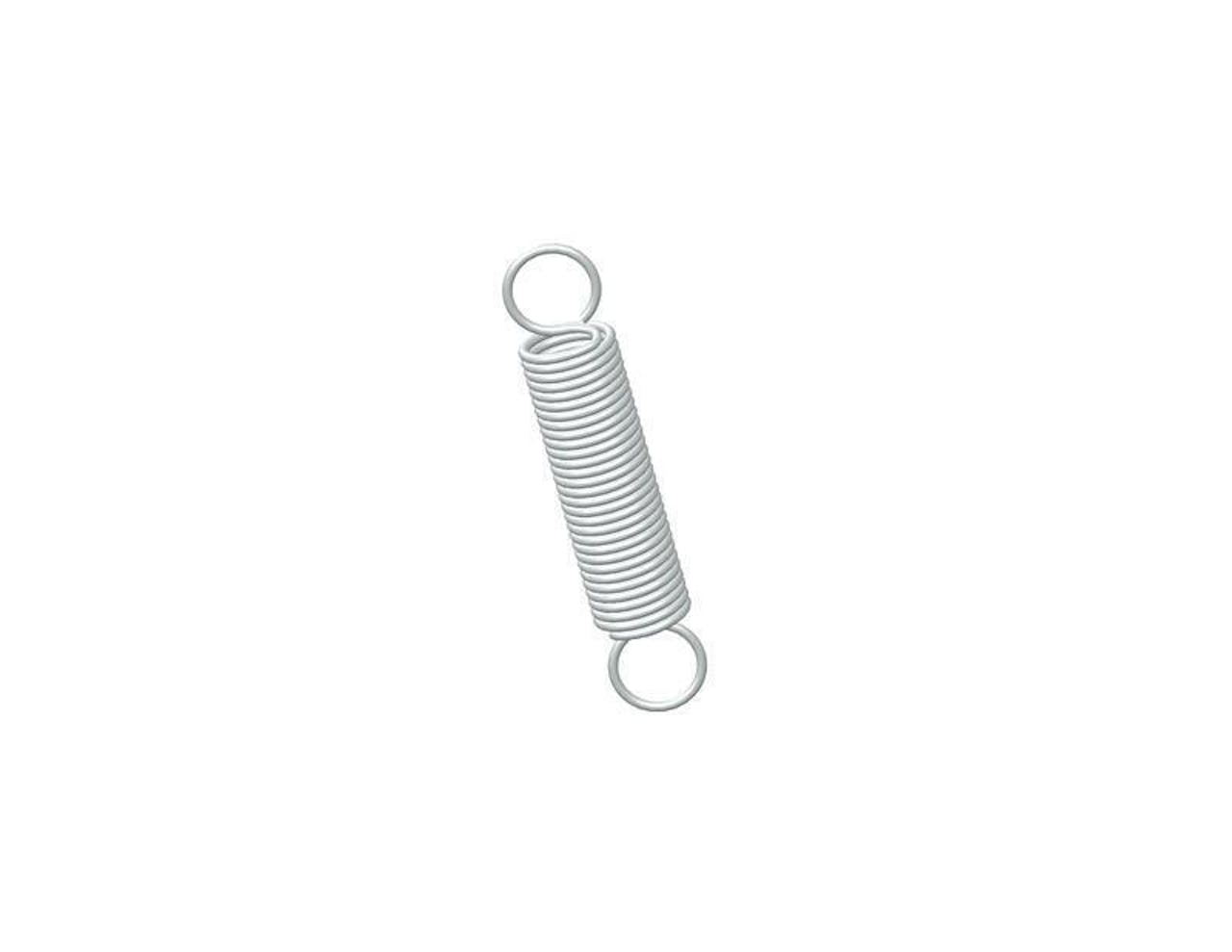

81201SCS - 10 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 2 Inch and an initial tension of 11 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 81201S
Ends Full Loop
Finish None
Initial Tension 11 lb
Length 10 in
Material 302/304 Stainless Steel
Outside Diameter 2 in
Part Type Standard
Rate 13 lbs/in
SKU 81201SCS
Sugg Max Deflection 6.6 in
Sugg Max Load 95 lbf
Wind Direction Left
Wire Diameter 0.207 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 81201S
Ends Full Loop
Finish None
Initial Tension 4.99 kg
Length 254 mm
Material 302/304 Stainless Steel
Outside Diameter 50.8 mm
Part Type Standard
Rate 2.28 N/mm
SKU 81201SCS
Sugg Max Deflection 167.64 mm
Sugg Max Load 422.56 N
Wind Direction Left
Wire Diameter 5.26 mm
