Shop Online > Springs > Extension > Regular

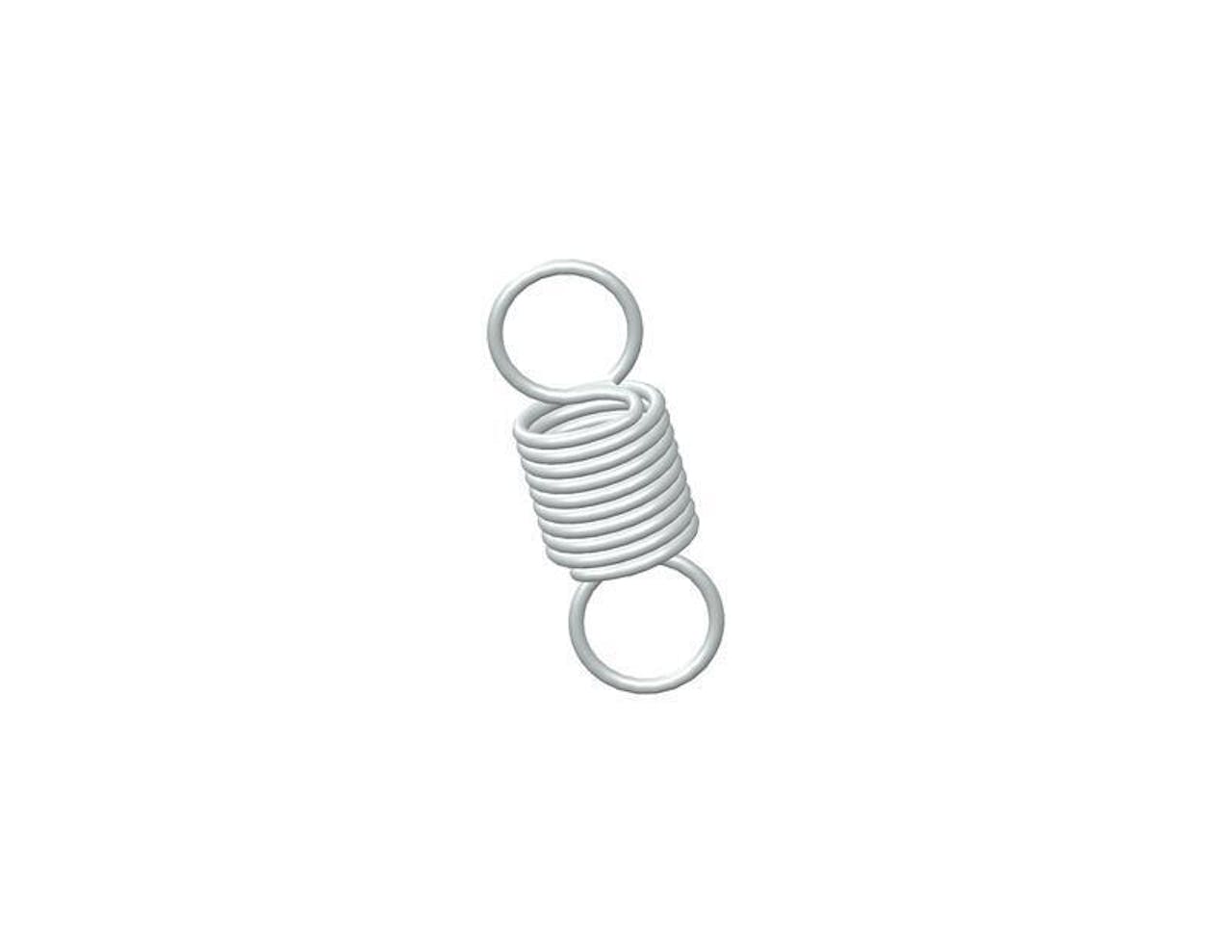

81170SCS - 5 Inch 302/304 Stainless Steel Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 1.75 Inch and an initial tension of 8 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 81170S |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 8 lb |
| Length | 5 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.75 in |
| Part Type | Standard |
| Rate | 31 lbs/in |
| SKU | 81170SCS |
| Sugg Max Deflection | 2.1 in |
| Sugg Max Load | 73 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.177 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 81170S |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 3.63 kg |
| Length | 127 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 44.45 mm |
| Part Type | Standard |
| Rate | 5.43 N/mm |
| SKU | 81170SCS |
| Sugg Max Deflection | 53.34 mm |
| Sugg Max Load | 324.7 N |
| Wind Direction | Left |
| Wire Diameter | 4.5 mm |
