Century Spring

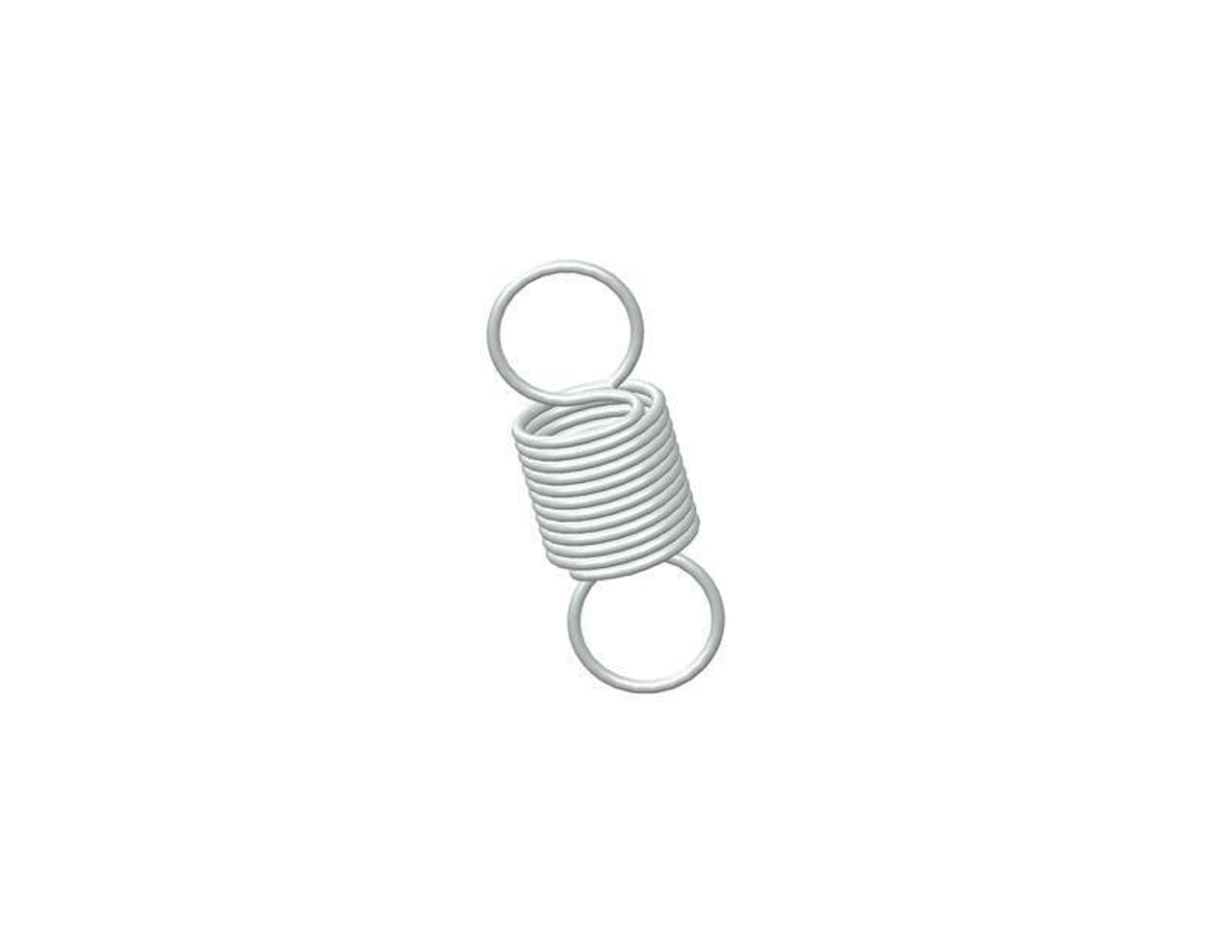

81162SCS - 5 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 1.75 Inch and an initial tension of 5 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 81162S
Ends Full Loop
Finish None
Initial Tension 5 lb
Length 5 in
Material 302/304 Stainless Steel
Outside Diameter 1.75 in
Part Type Standard
Rate 13 lbs/in
SKU 81162SCS
Sugg Max Deflection 3.2 in
Sugg Max Load 46 lbf
Wind Direction Left
Wire Diameter 0.148 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 81162S
Ends Full Loop
Finish None
Initial Tension 2.27 kg
Length 127 mm
Material 302/304 Stainless Steel
Outside Diameter 44.45 mm
Part Type Standard
Rate 2.28 N/mm
SKU 81162SCS
Sugg Max Deflection 81.28 mm
Sugg Max Load 204.61 N
Wind Direction Left
Wire Diameter 3.76 mm
