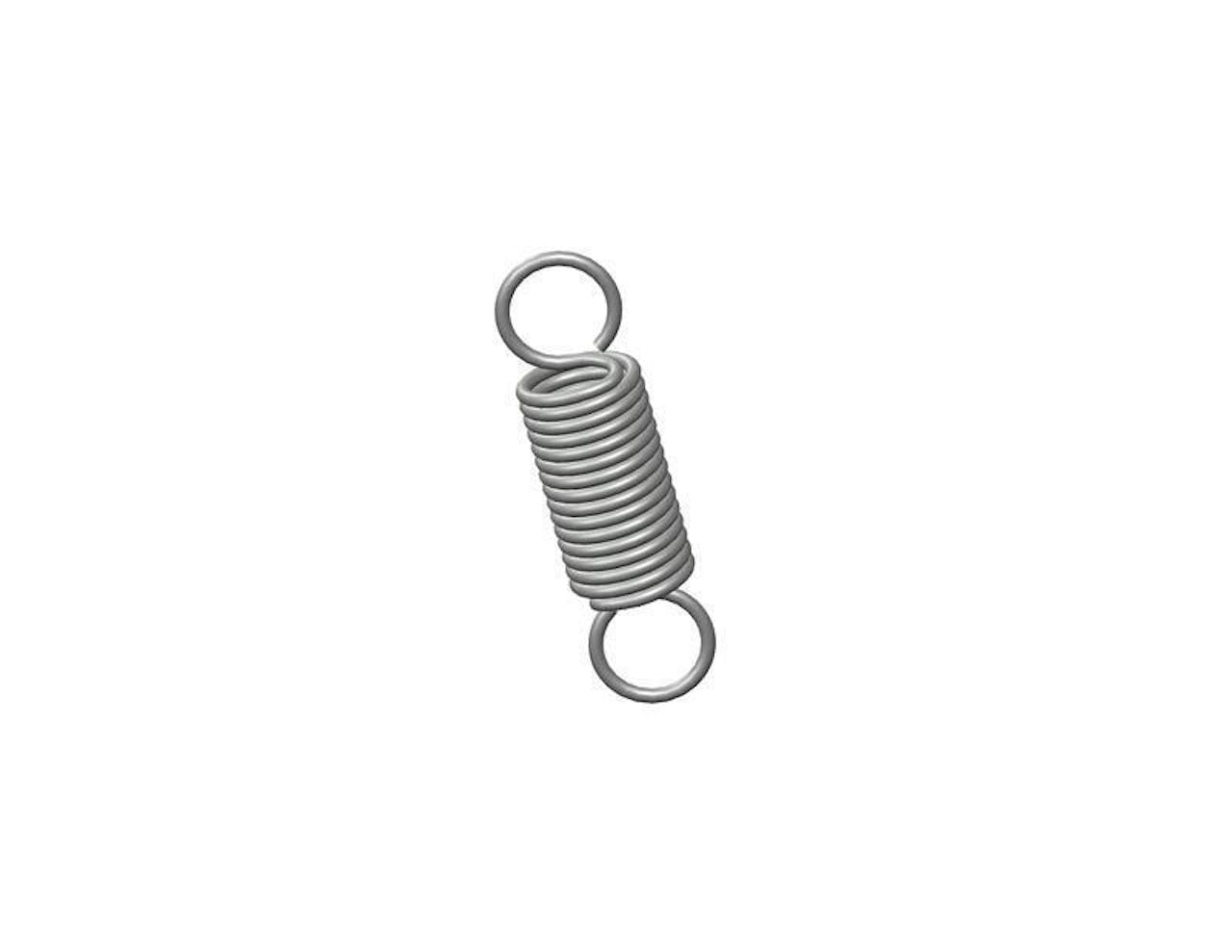

81156CS - 5.5 Inch Music Wire Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in Music Wire. This spring features an O.D. of 1.5 Inch and an initial tension of 15 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 81156 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 15 lb |
| Length | 5.5 in |
| Material | Music Wire |
| Outside Diameter | 1.5 in |
| Part Type | Standard |
| Rate | 39 lbs/in |
| SKU | 81156CS |
| Sugg Max Deflection | 3.1 in |
| Sugg Max Load | 132 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.177 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 81156 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 6.8 kg |
| Length | 139.7 mm |
| Material | Music Wire |
| Outside Diameter | 38.1 mm |
| Part Type | Standard |
| Rate | 6.83 N/mm |
| SKU | 81156CS |
| Sugg Max Deflection | 78.74 mm |
| Sugg Max Load | 587.14 N |
| Wind Direction | Left |
| Wire Diameter | 4.5 mm |
