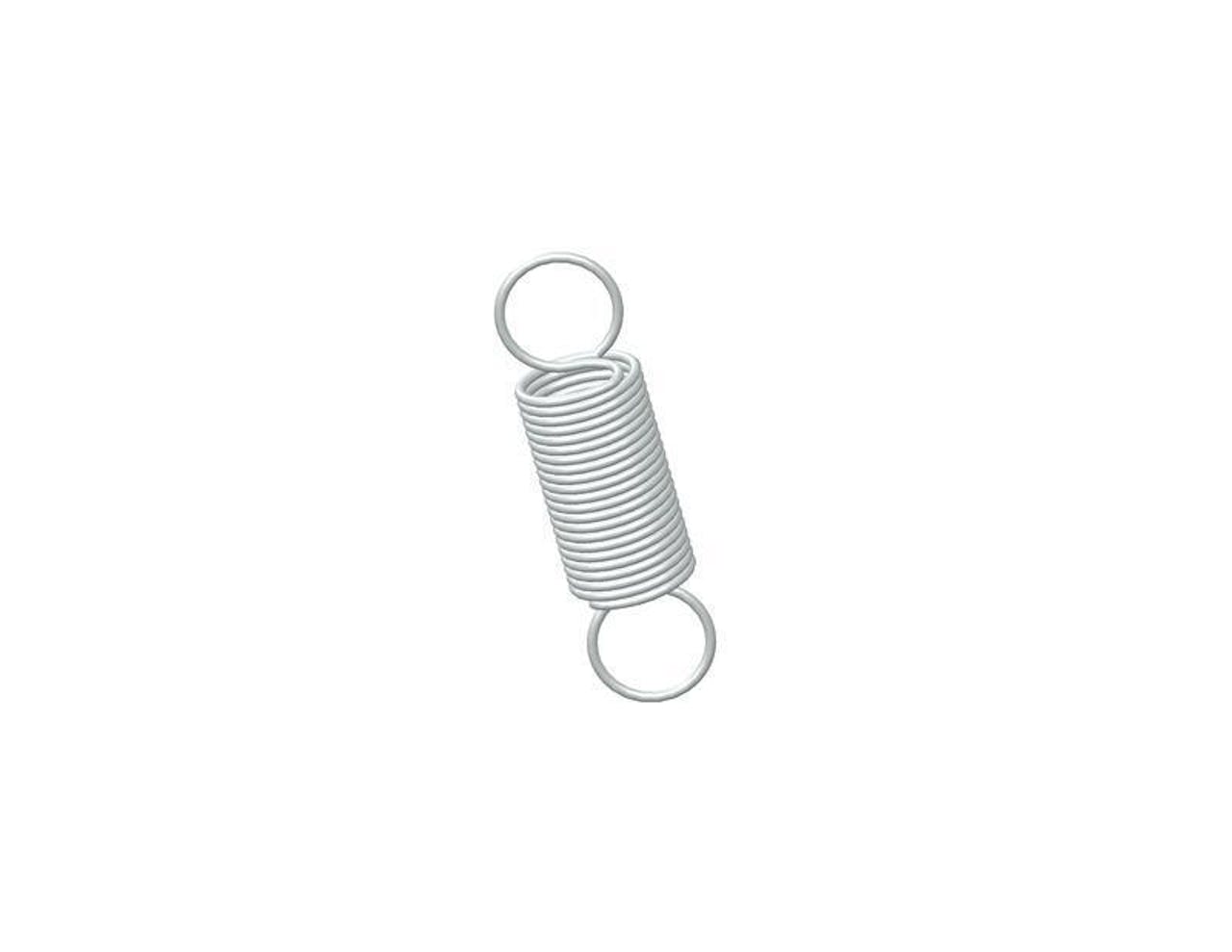

81140SCS - 5.5 Inch 302/304 Stainless Steel Extension Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 1.5 Inch and an initial tension of 4 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 81140S |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 4 lb |
| Length | 5.5 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.5 in |
| Part Type | Standard |
| Rate | 5.2 lbs/in |
| SKU | 81140SCS |
| Sugg Max Deflection | 5.8 in |
| Sugg Max Load | 34 lbf |
| Wire Diameter | 0.125 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 81140S |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 1.81 kg |
| Length | 139.7 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 38.1 mm |
| Part Type | Standard |
| Rate | 0.91 N/mm |
| SKU | 81140SCS |
| Sugg Max Deflection | 147.32 mm |
| Sugg Max Load | 151.23 N |
| Wire Diameter | 3.18 mm |
