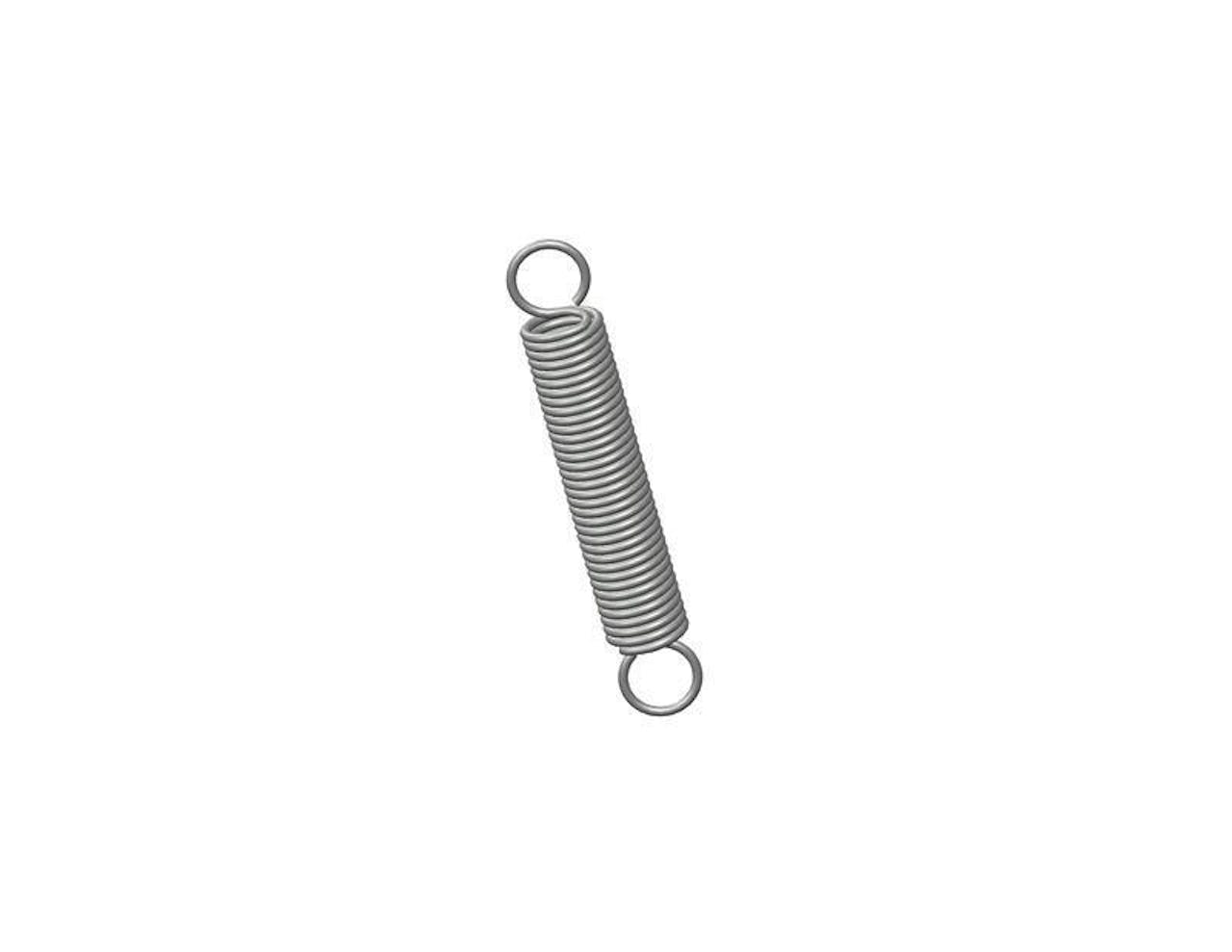

81137CS - 7.5 Inch Music Wire Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in Music Wire. This spring features an O.D. of 1.25 Inch and an initial tension of 27.46 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 81137 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 27.46 lb |
| Length | 7.5 in |
| Material | Music Wire |
| Outside Diameter | 1.25 in |
| Part Type | Standard |
| Rate | 15 lbs/in |
| SKU | 81137CS |
| Sugg Max Deflection | 6 in |
| Sugg Max Load | 95 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.148 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 81137 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 12.45 kg |
| Length | 190.5 mm |
| Material | Music Wire |
| Outside Diameter | 31.75 mm |
| Part Type | Standard |
| Rate | 2.63 N/mm |
| SKU | 81137CS |
| Sugg Max Deflection | 152.4 mm |
| Sugg Max Load | 422.56 N |
| Wind Direction | Left |
| Wire Diameter | 3.76 mm |
