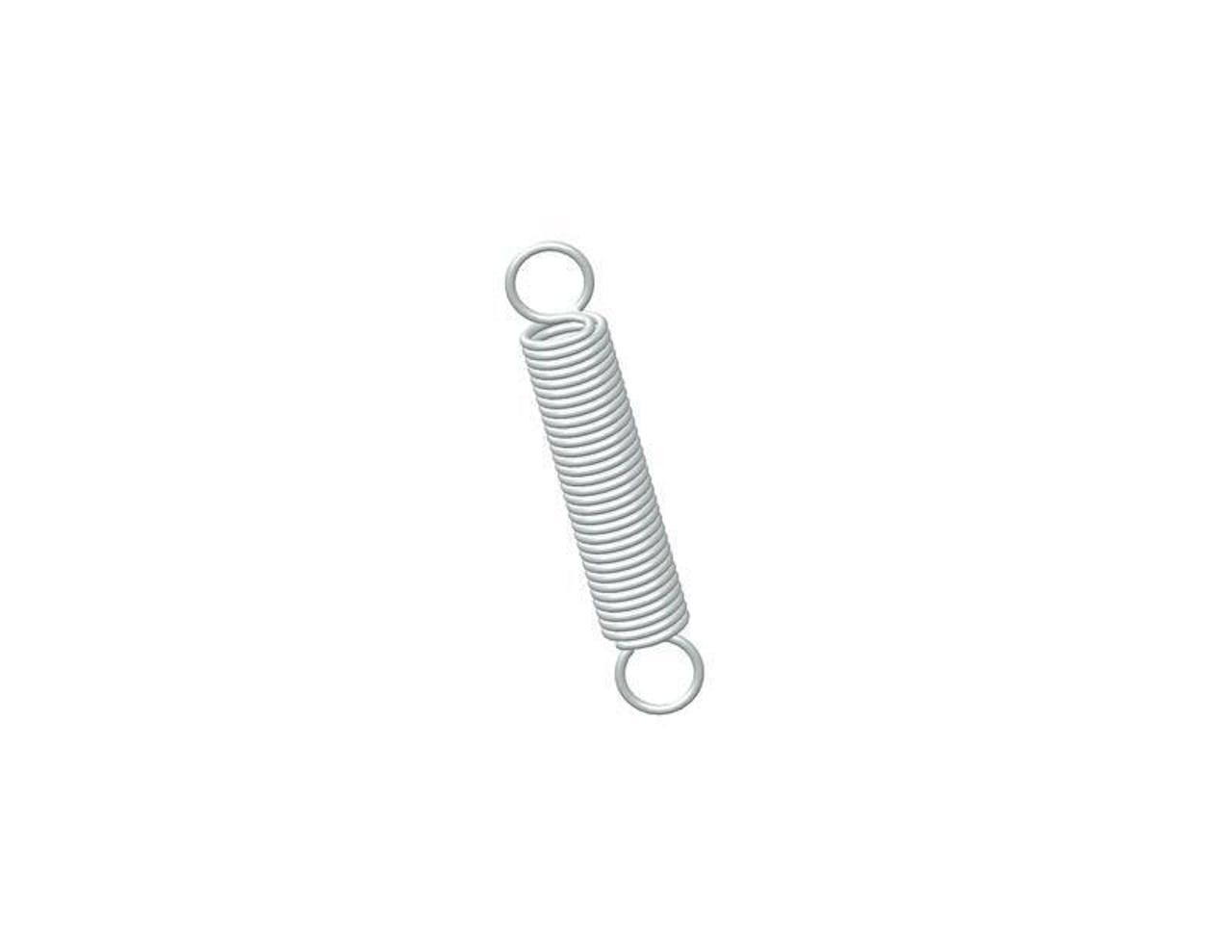

81136SCS - 7 Inch 302/304 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 1.25 Inch and an initial tension of 7 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 81136S
Ends Full Loop
Finish None
Initial Tension 7 lb
Length 7 in
Material 302/304 Stainless Steel
Outside Diameter 1.25 in
Part Type Standard
Rate 14 lbs/in
SKU 81136SCS
Sugg Max Deflection 4.1 in
Sugg Max Load 62 lbf
Wire Diameter 0.148 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 81136S
Ends Full Loop
Finish None
Initial Tension 3.17 kg
Length 177.8 mm
Material 302/304 Stainless Steel
Outside Diameter 31.75 mm
Part Type Standard
Rate 2.45 N/mm
SKU 81136SCS
Sugg Max Deflection 104.14 mm
Sugg Max Load 275.78 N
Wire Diameter 3.76 mm
