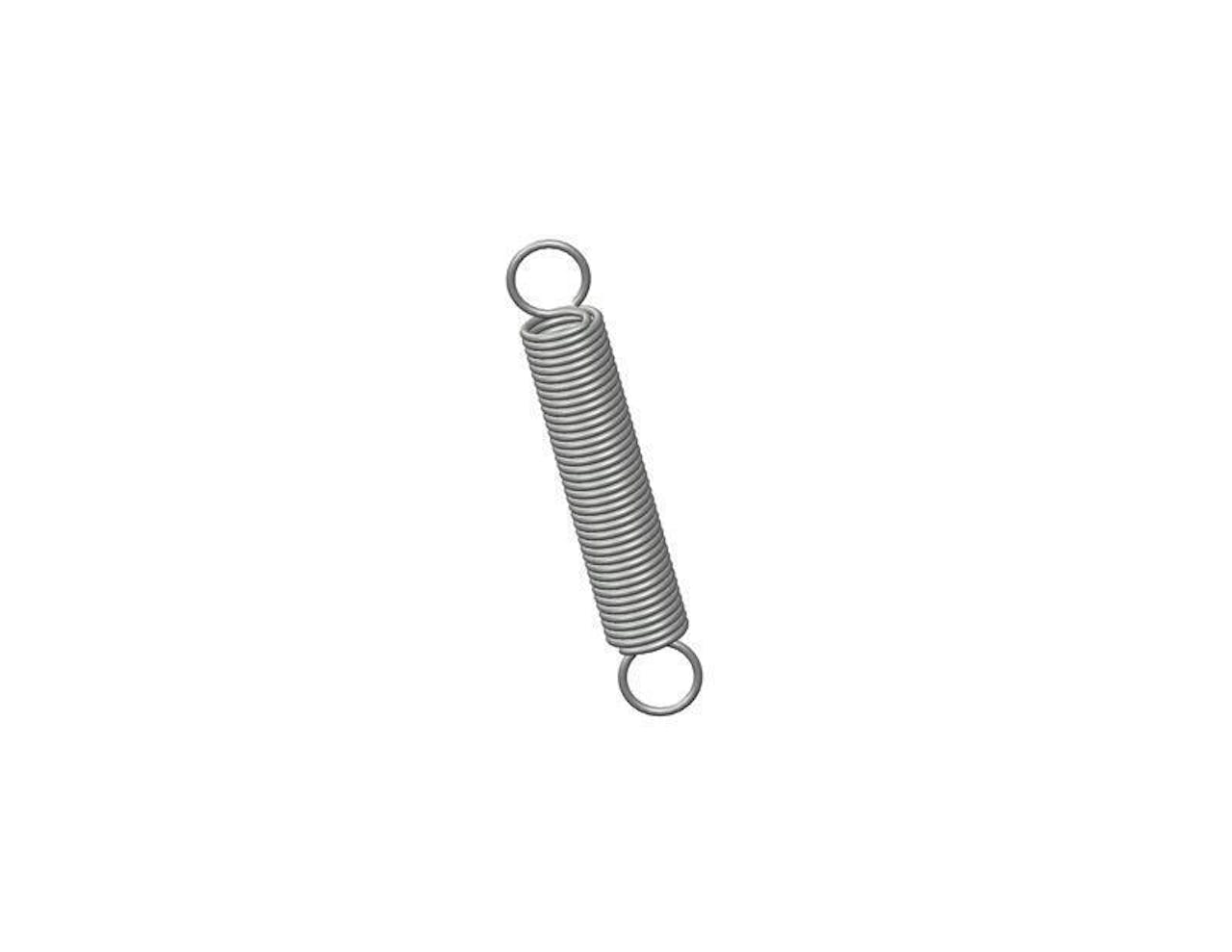

81128CS - 7.5 Inch Music Wire Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 1.25 Inch and an initial tension of 6 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 81128
Ends Full Loop
Finish None
Initial Tension 6 lb
Length 7.5 in
Material Music Wire
Outside Diameter 1.25 in
Part Type Standard
Rate 8.8 lbs/in
SKU 81128CS
Sugg Max Deflection 7.6 in
Sugg Max Load 73 lbf
Wire Diameter 0.135 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 81128
Ends Full Loop
Finish None
Initial Tension 2.72 kg
Length 190.5 mm
Material Music Wire
Outside Diameter 31.75 mm
Part Type Standard
Rate 1.54 N/mm
SKU 81128CS
Sugg Max Deflection 193.04 mm
Sugg Max Load 324.7 N
Wire Diameter 3.43 mm
