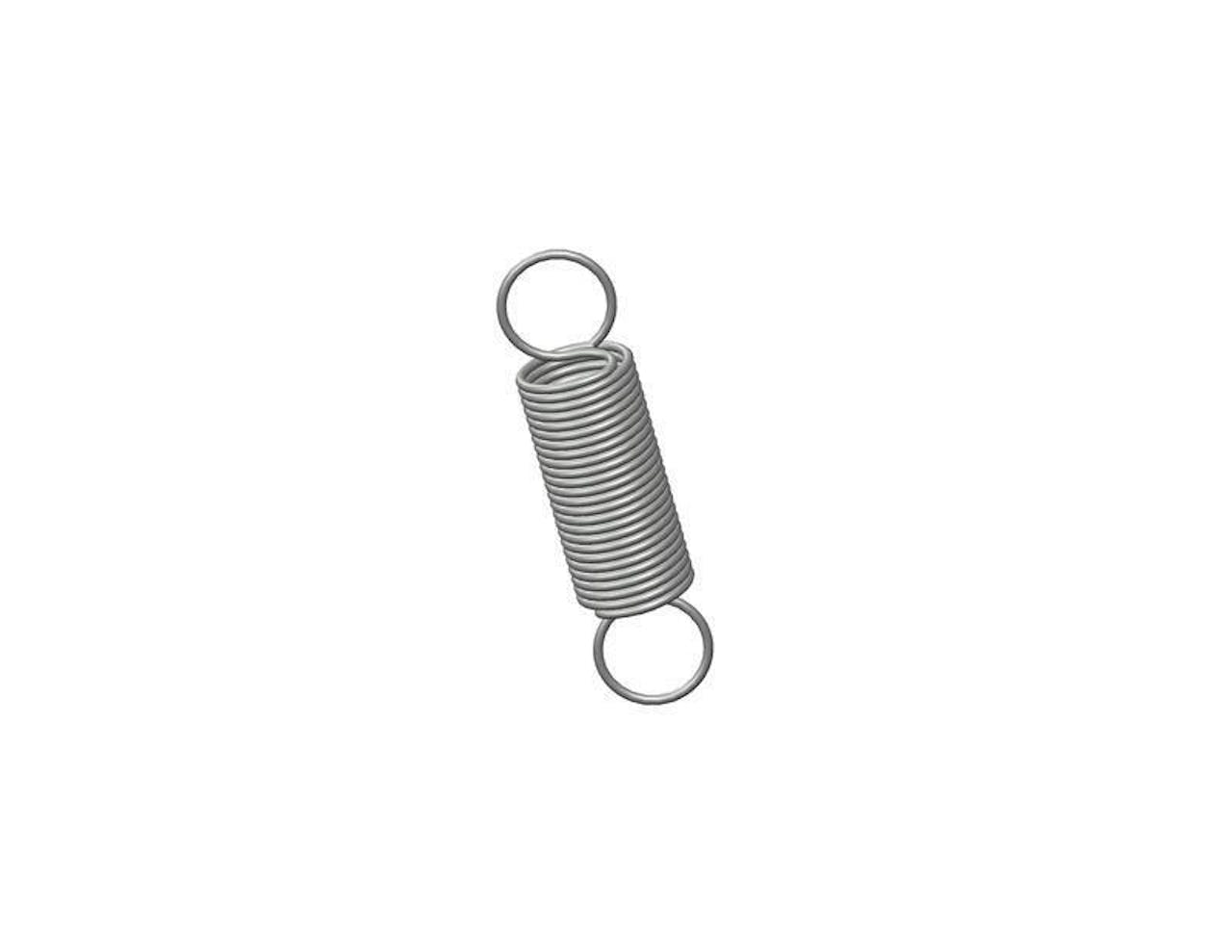

81103CS - 5 Inch Music Wire Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in Music Wire. This spring features an O.D. of 1.25 Inch and an initial tension of 3 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 81103 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 3 lb |
| Length | 5 in |
| Material | Music Wire |
| Outside Diameter | 1.25 in |
| Part Type | Standard |
| Rate | 6 lbs/in |
| SKU | 81103CS |
| Sugg Max Deflection | 5.7 in |
| Sugg Max Load | 38 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.105 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 81103 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 1.36 kg |
| Length | 127 mm |
| Material | Music Wire |
| Outside Diameter | 31.75 mm |
| Part Type | Standard |
| Rate | 1.05 N/mm |
| SKU | 81103CS |
| Sugg Max Deflection | 144.78 mm |
| Sugg Max Load | 169.02 N |
| Wind Direction | Left |
| Wire Diameter | 2.67 mm |
