Century Spring

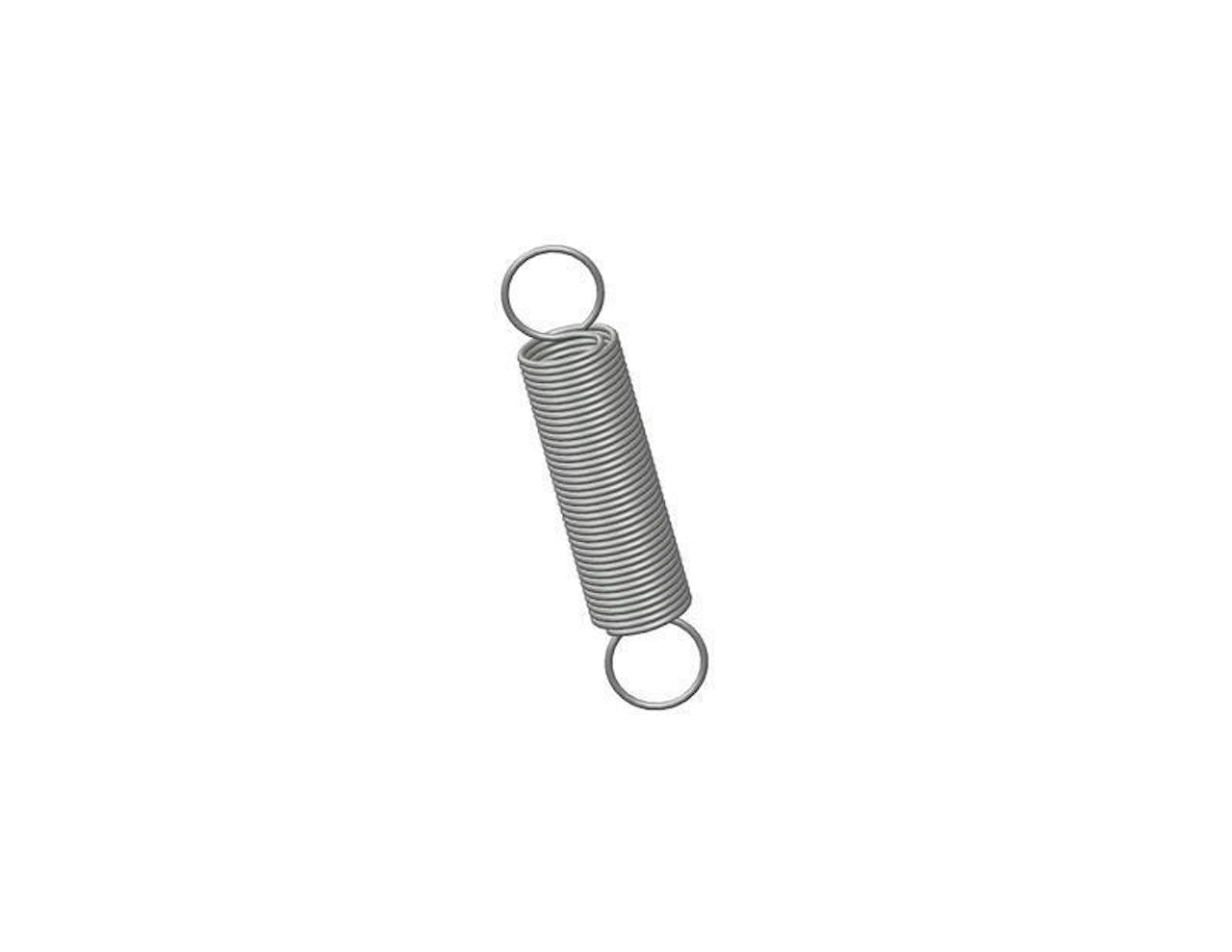

81095CS - 6 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 1.25 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 81095
Ends Full Loop
Finish None
Initial Tension 2 lb
Length 6 in
Material Music Wire
Outside Diameter 1.25 in
Part Type Standard
Rate 2 lbs/in
SKU 81095CS
Sugg Max Deflection 13 in
Sugg Max Load 28 lbf
Wind Direction Left
Wire Diameter 0.095 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 81095
Ends Full Loop
Finish None
Initial Tension 0.91 kg
Length 152.4 mm
Material Music Wire
Outside Diameter 31.75 mm
Part Type Standard
Rate 0.35 N/mm
SKU 81095CS
Sugg Max Deflection 330.2 mm
Sugg Max Load 124.54 N
Wind Direction Left
Wire Diameter 2.41 mm
