Century Spring

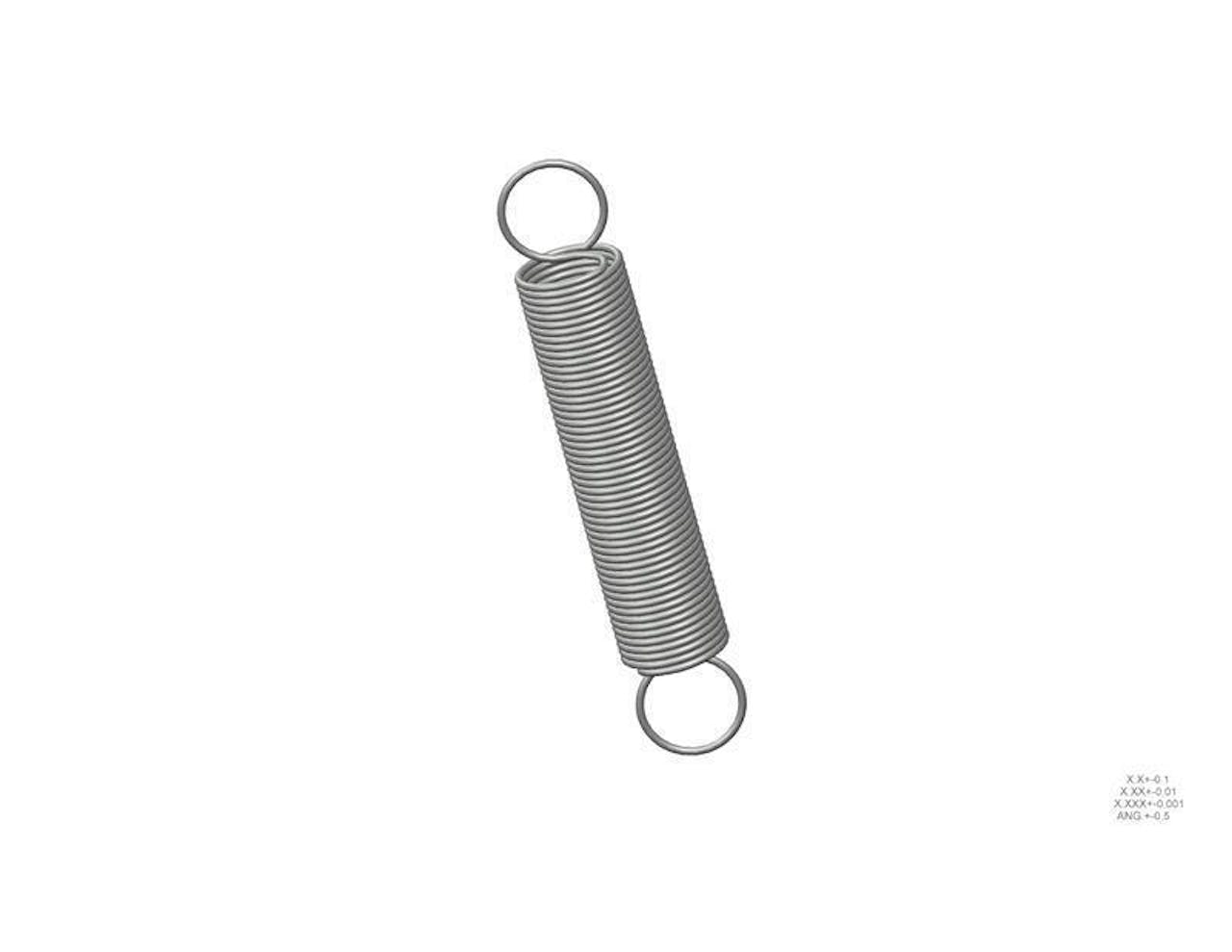

81060CS - 6.5 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 1.125 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 81060
Ends Full Loop
Finish None
Initial Tension 2 lb
Length 6.5 in
Material Music Wire
Outside Diameter 1.125 in
Part Type Standard
Rate 1.3 lbs/in
SKU 81060CS
Sugg Max Deflection 16 in
Sugg Max Load 23 lbf
Wind Direction Left
Wire Diameter 0.085 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 81060
Ends Full Loop
Finish None
Initial Tension 0.91 kg
Length 165.1 mm
Material Music Wire
Outside Diameter 28.58 mm
Part Type Standard
Rate 0.23 N/mm
SKU 81060CS
Sugg Max Deflection 406.4 mm
Sugg Max Load 102.3 N
Wind Direction Left
Wire Diameter 2.16 mm
