Century Spring

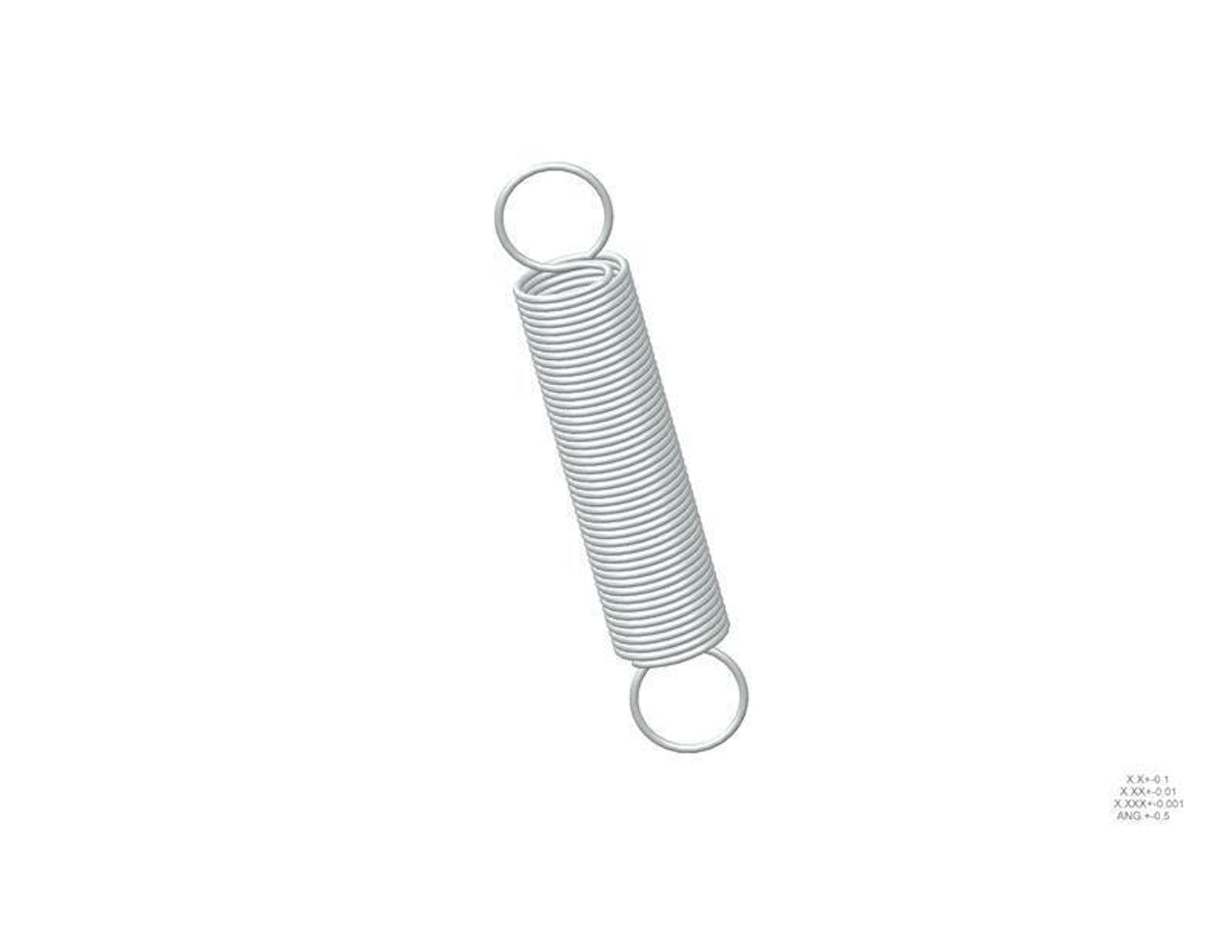

81059SCS - 6 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 1.125 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 81059S
Ends Full Loop
Finish None
Initial Tension 2 lb
Length 6 in
Material 302/304 Stainless Steel
Outside Diameter 1.125 in
Part Type Standard
Rate 1.3 lbs/in
SKU 81059SCS
Sugg Max Deflection 11 in
Sugg Max Load 16 lbf
Wind Direction Left
Wire Diameter 0.085 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 81059S
Ends Full Loop
Finish None
Initial Tension 0.91 kg
Length 152.4 mm
Material 302/304 Stainless Steel
Outside Diameter 28.58 mm
Part Type Standard
Rate 0.23 N/mm
SKU 81059SCS
Sugg Max Deflection 279.4 mm
Sugg Max Load 71.17 N
Wind Direction Left
Wire Diameter 2.16 mm
