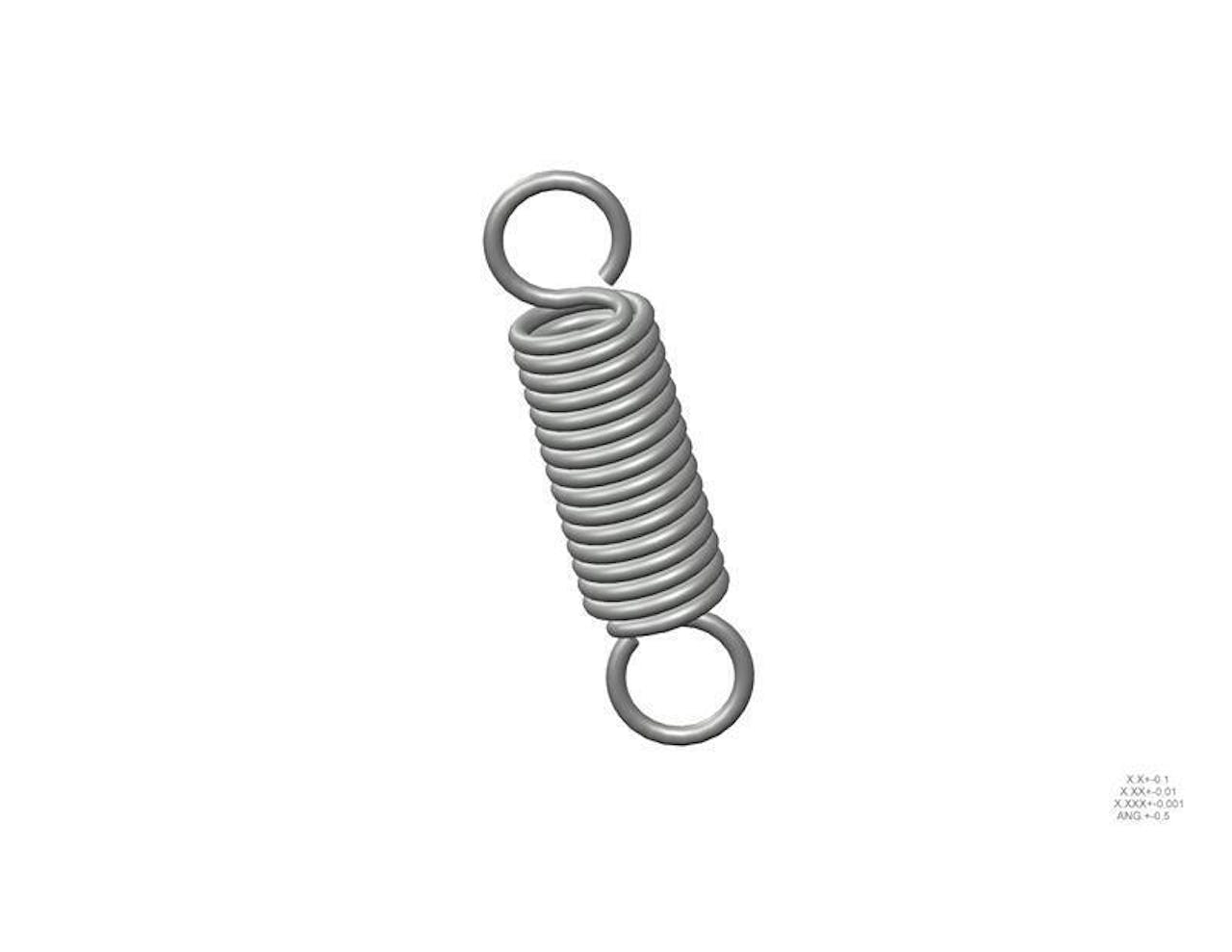

81031CS - 4 Inch Music Wire Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in Music Wire. This spring features an O.D. of 1 Inch and an initial tension of 19 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 81031 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 19 lb |
| Length | 4 in |
| Material | Music Wire |
| Outside Diameter | 1 in |
| Part Type | Standard |
| Rate | 45 lbs/in |
| SKU | 81031CS |
| Sugg Max Deflection | 1.8 in |
| Sugg Max Load | 89 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.135 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 81031 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 8.62 kg |
| Length | 101.6 mm |
| Material | Music Wire |
| Outside Diameter | 25.4 mm |
| Part Type | Standard |
| Rate | 7.88 N/mm |
| SKU | 81031CS |
| Sugg Max Deflection | 45.72 mm |
| Sugg Max Load | 395.87 N |
| Wind Direction | Left |
| Wire Diameter | 3.43 mm |
