Century Spring

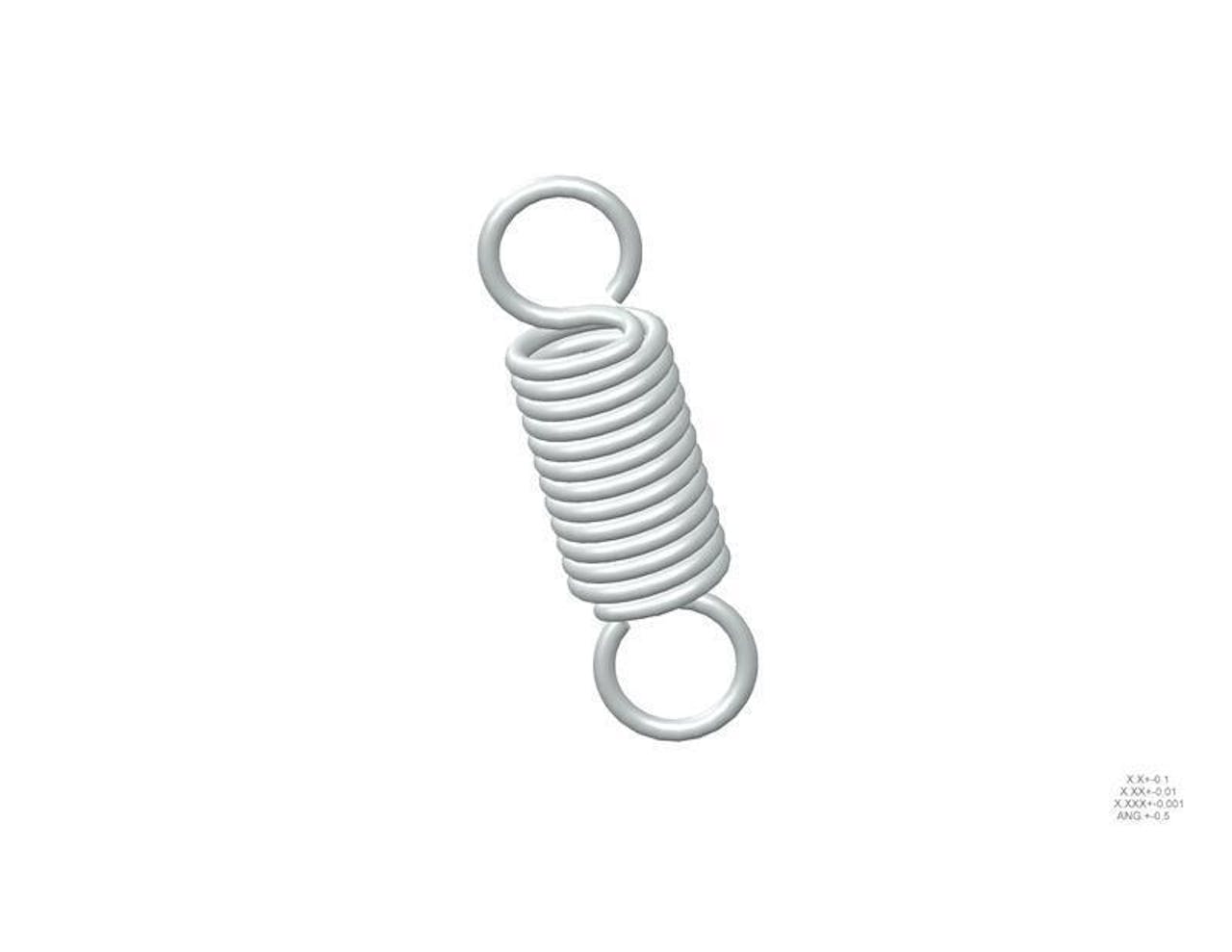

81030SCS - 3.5 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 1 Inch and an initial tension of 6 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 81030S
Ends Full Loop
Finish None
Initial Tension 6 lb
Length 3.5 in
Material 302/304 Stainless Steel
Outside Diameter 1 in
Part Type Standard
Rate 48 lbs/in
SKU 81030SCS
Sugg Max Deflection 1.1 in
Sugg Max Load 58 lbf
Wind Direction Left
Wire Diameter 0.135 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 81030S
Ends Full Loop
Finish None
Initial Tension 2.72 kg
Length 88.9 mm
Material 302/304 Stainless Steel
Outside Diameter 25.4 mm
Part Type Standard
Rate 8.4 N/mm
SKU 81030SCS
Sugg Max Deflection 27.94 mm
Sugg Max Load 257.98 N
Wind Direction Left
Wire Diameter 3.43 mm
