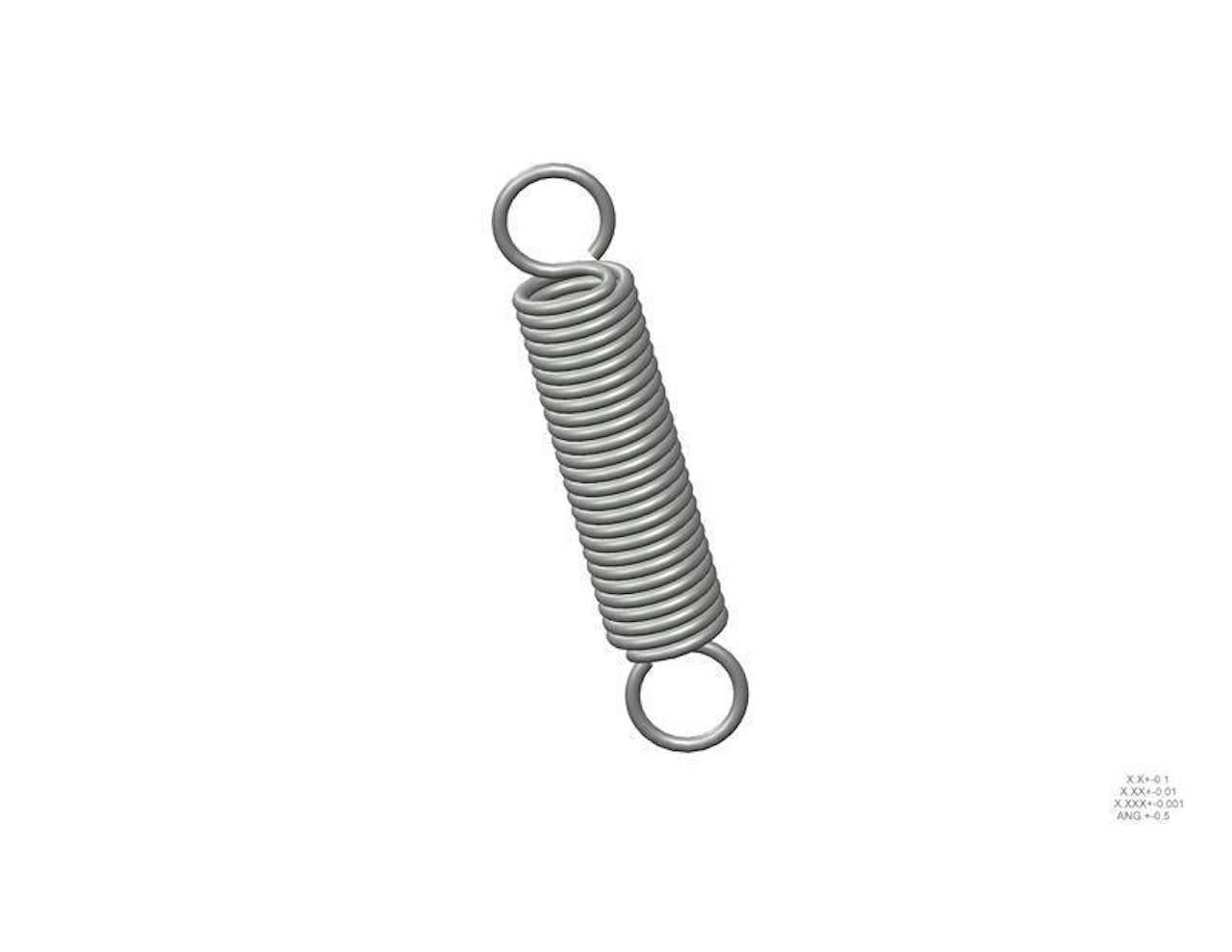

81020CS - 5 Inch Music Wire Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in Music Wire. This spring features an O.D. of 1 Inch and an initial tension of 6 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 81020 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 6 lb |
| Length | 5 in |
| Material | Music Wire |
| Outside Diameter | 1 in |
| Part Type | Standard |
| Rate | 20 lbs/in |
| SKU | 81020CS |
| Sugg Max Deflection | 3.3 in |
| Sugg Max Load | 73 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.125 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 81020 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 2.72 kg |
| Length | 127 mm |
| Material | Music Wire |
| Outside Diameter | 25.4 mm |
| Part Type | Standard |
| Rate | 3.5 N/mm |
| SKU | 81020CS |
| Sugg Max Deflection | 83.82 mm |
| Sugg Max Load | 324.7 N |
| Wind Direction | Left |
| Wire Diameter | 3.18 mm |
