81010SCS - 6.5 Inch 302/304 Stainless Steel Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

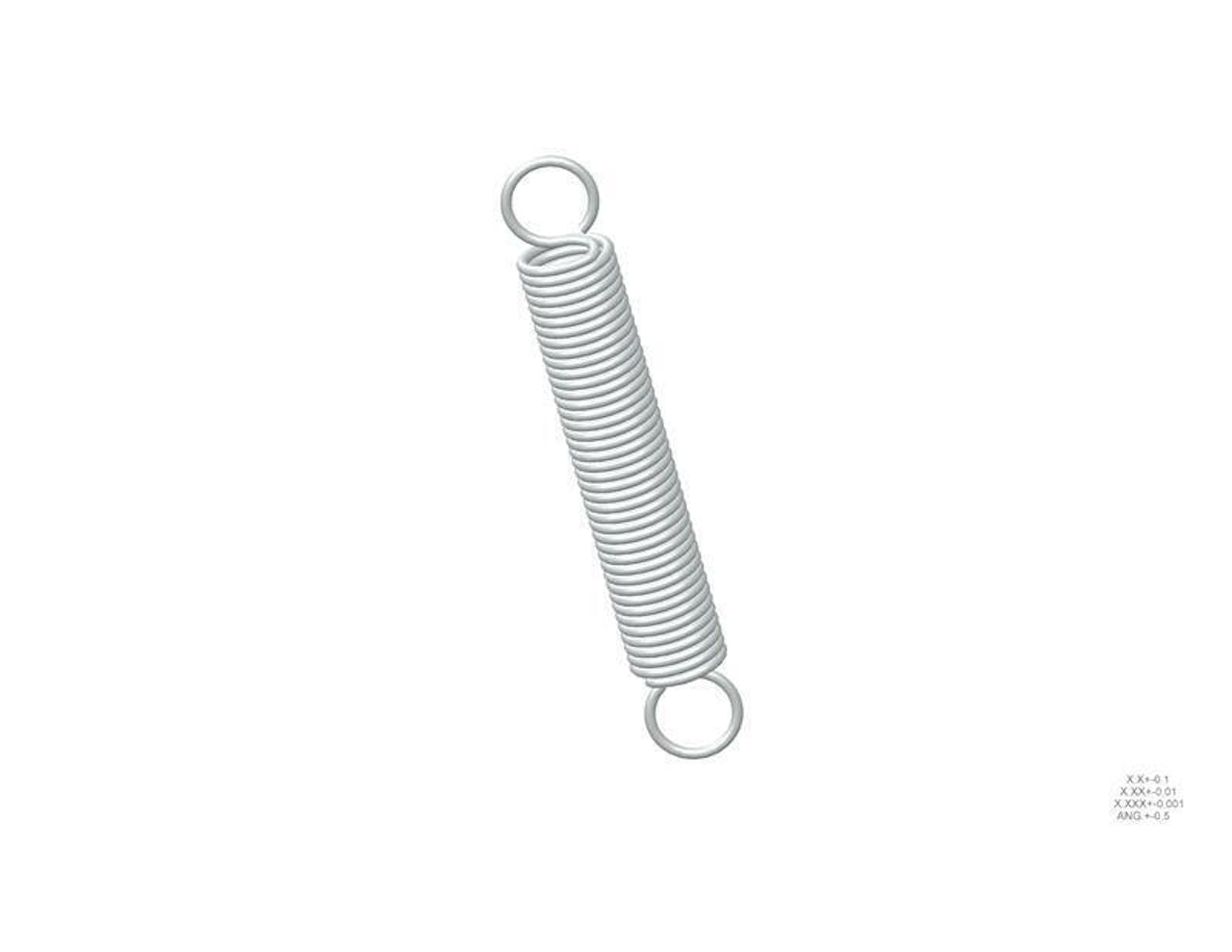

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 1 Inch and an initial tension of 4 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 81010S |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 4 lb |
| Length | 6.5 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1 in |
| Part Type | Standard |
| Rate | 7.5 lbs/in |
| SKU | 81010SCS |
| Sugg Max Deflection | 4.5 in |
| Sugg Max Load | 38 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.115 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 81010S |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 1.81 kg |
| Length | 165.1 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 25.4 mm |
| Part Type | Standard |
| Rate | 1.31 N/mm |
| SKU | 81010SCS |
| Sugg Max Deflection | 114.3 mm |
| Sugg Max Load | 169.02 N |
| Wind Direction | Left |
| Wire Diameter | 2.92 mm |
