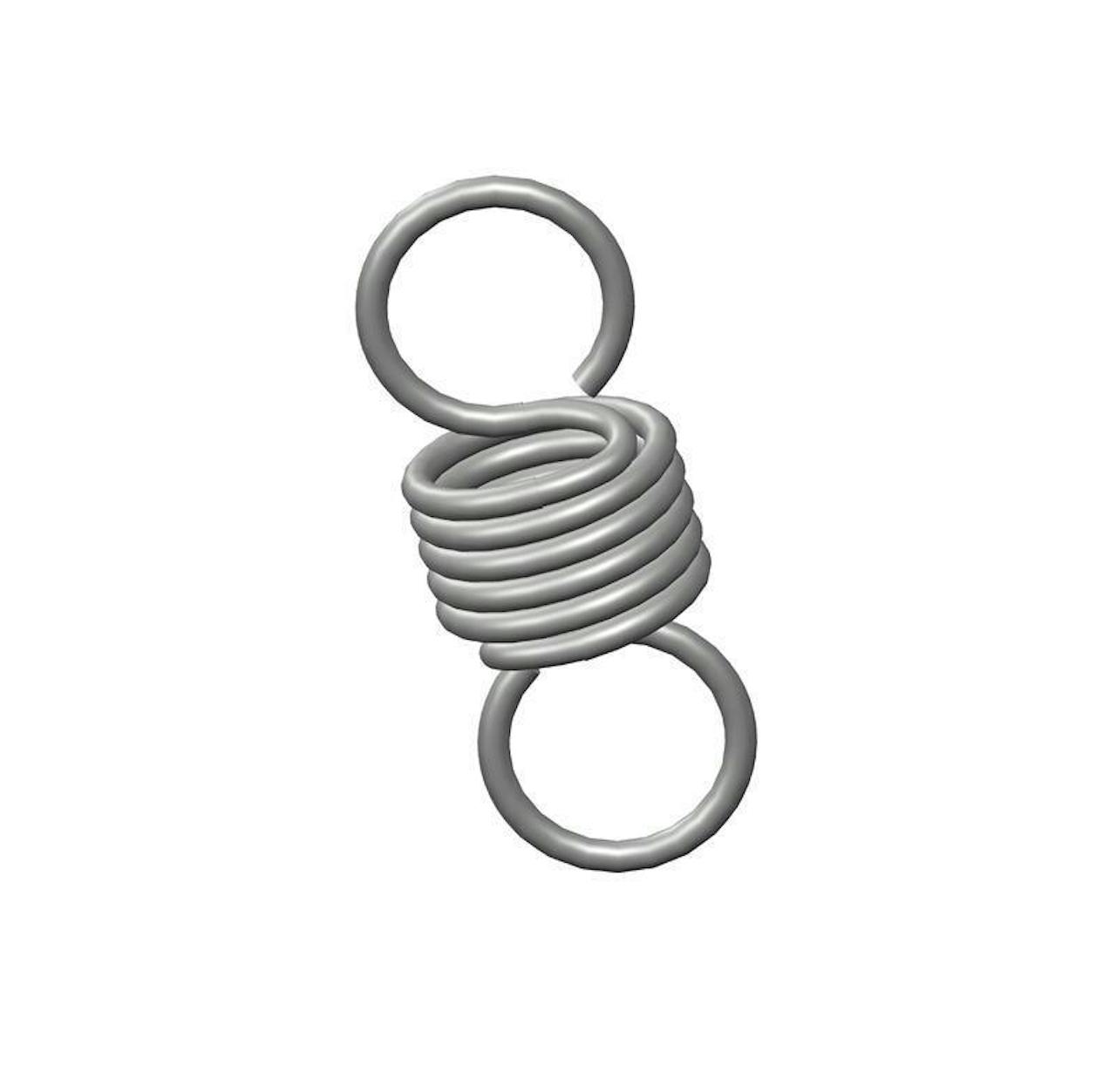

81001CS - 2.5 Inch Music Wire Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 1 Inch and an initial tension of 5 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 81001
Ends Full Loop
Finish None
Initial Tension 5 lb
Length 2.5 in
Material Music Wire
Outside Diameter 1 in
Part Type Standard
Rate 60 lbs/in
SKU 81001CS
Sugg Max Deflection 0.87 in
Sugg Max Load 58 lbf
Wire Diameter 0.115 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 81001
Ends Full Loop
Finish None
Initial Tension 2.27 kg
Length 63.5 mm
Material Music Wire
Outside Diameter 25.4 mm
Part Type Standard
Rate 10.51 N/mm
SKU 81001CS
Sugg Max Deflection 22.1 mm
Sugg Max Load 257.98 N
Wire Diameter 2.92 mm
