Century Spring

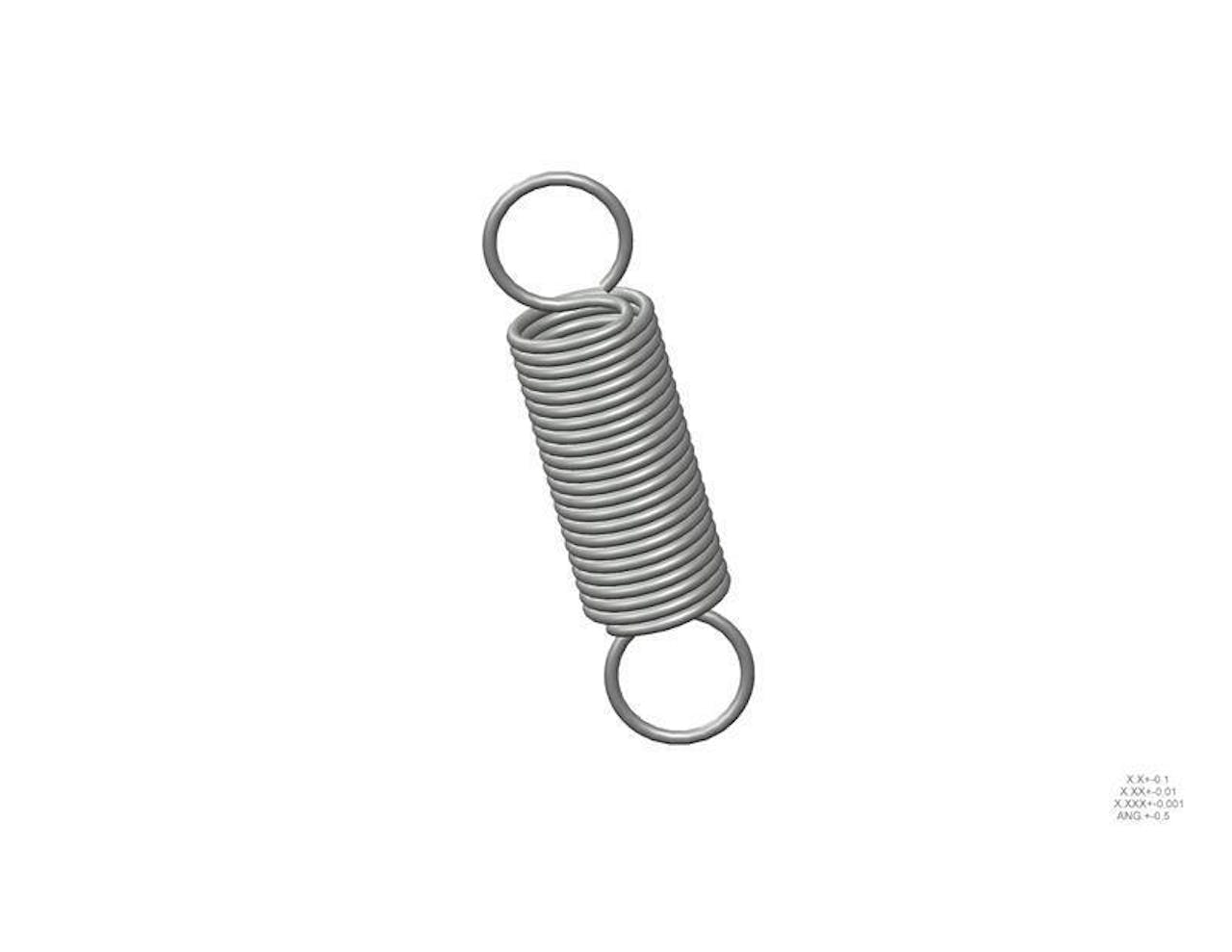

80979CS - 4 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 1 Inch and an initial tension of 4.6 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80979
Ends Full Loop
Finish None
Initial Tension 4.6 lb
Length 4 in
Material Music Wire
Outside Diameter 1 in
Part Type Standard
Rate 6.9 lbs/in
SKU 80979CS
Sugg Max Deflection 4.5 in
Sugg Max Load 34 lbf
Wind Direction Left
Wire Diameter 0.095 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80979
Ends Full Loop
Finish None
Initial Tension 2.09 kg
Length 101.6 mm
Material Music Wire
Outside Diameter 25.4 mm
Part Type Standard
Rate 1.21 N/mm
SKU 80979CS
Sugg Max Deflection 114.3 mm
Sugg Max Load 151.23 N
Wind Direction Left
Wire Diameter 2.41 mm
