Century Spring

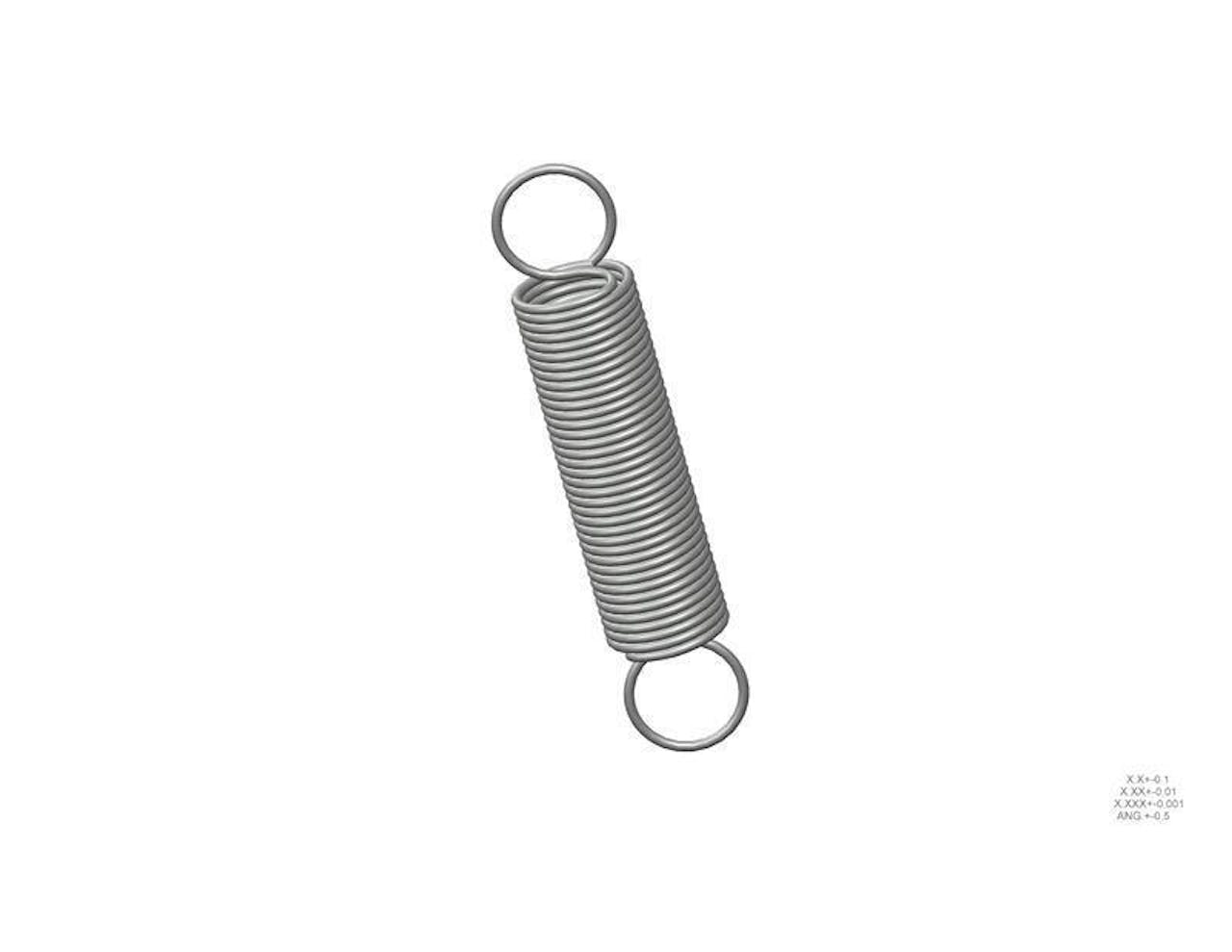

80974CS - 5 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 1 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80974
Ends Full Loop
Finish None
Initial Tension 2 lb
Length 5 in
Material Music Wire
Outside Diameter 1 in
Part Type Standard
Rate 2.7 lbs/in
SKU 80974CS
Sugg Max Deflection 8.8 in
Sugg Max Load 26 lbf
Wind Direction Left
Wire Diameter 0.085 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80974
Ends Full Loop
Finish None
Initial Tension 0.91 kg
Length 127 mm
Material Music Wire
Outside Diameter 25.4 mm
Part Type Standard
Rate 0.47 N/mm
SKU 80974CS
Sugg Max Deflection 223.52 mm
Sugg Max Load 115.65 N
Wind Direction Left
Wire Diameter 2.16 mm
