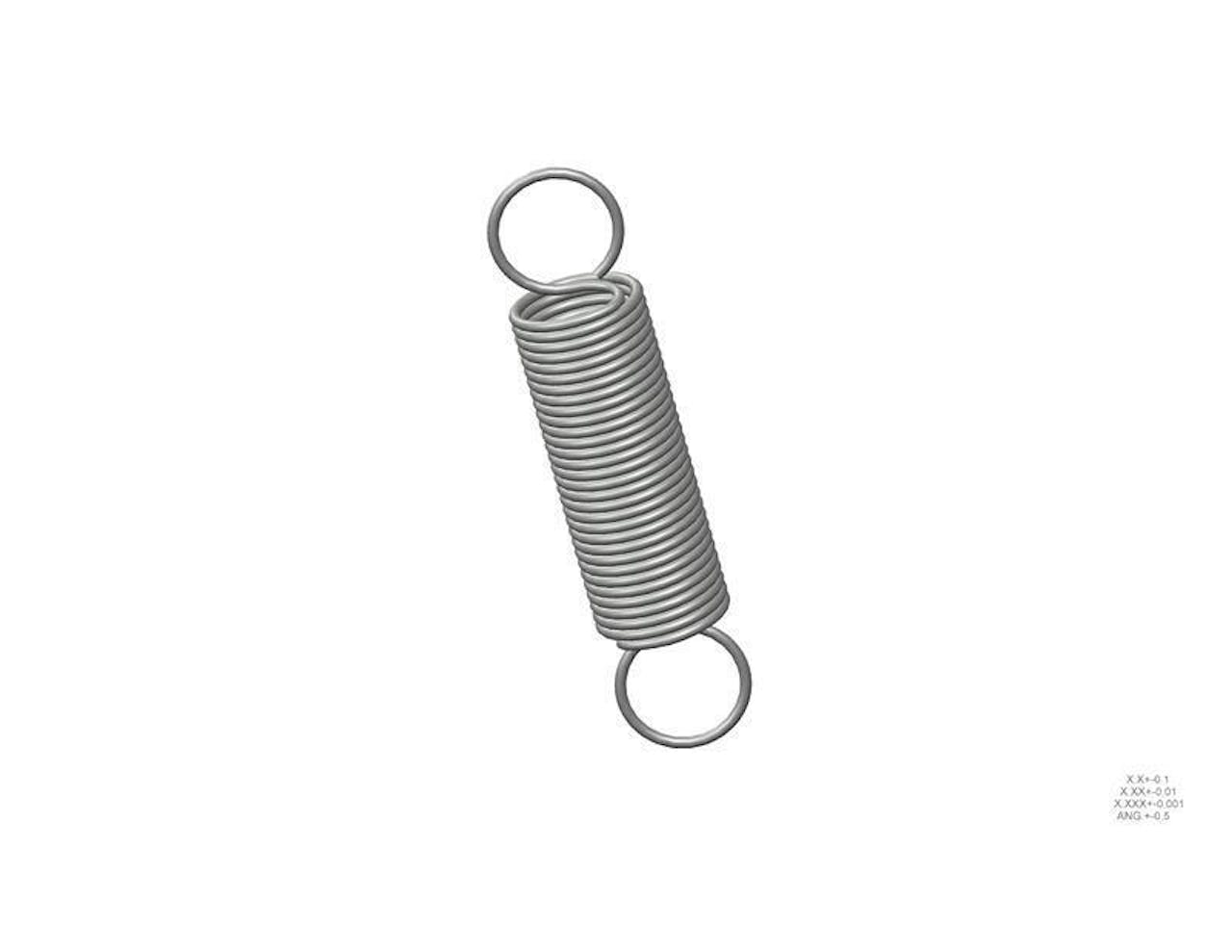

80973CS - 4.5 Inch Music Wire Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 1 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80973
Ends Full Loop
Finish None
Initial Tension 2 lb
Length 4.5 in
Material Music Wire
Outside Diameter 1 in
Part Type Standard
Rate 3.2 lbs/in
SKU 80973CS
Sugg Max Deflection 7.4 in
Sugg Max Load 26 lbf
Wire Diameter 0.085 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80973
Ends Full Loop
Finish None
Initial Tension 0.91 kg
Length 114.3 mm
Material Music Wire
Outside Diameter 25.4 mm
Part Type Standard
Rate 0.56 N/mm
SKU 80973CS
Sugg Max Deflection 187.96 mm
Sugg Max Load 115.65 N
Wire Diameter 2.16 mm
