80961CS - 2.5 Inch Music Wire Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

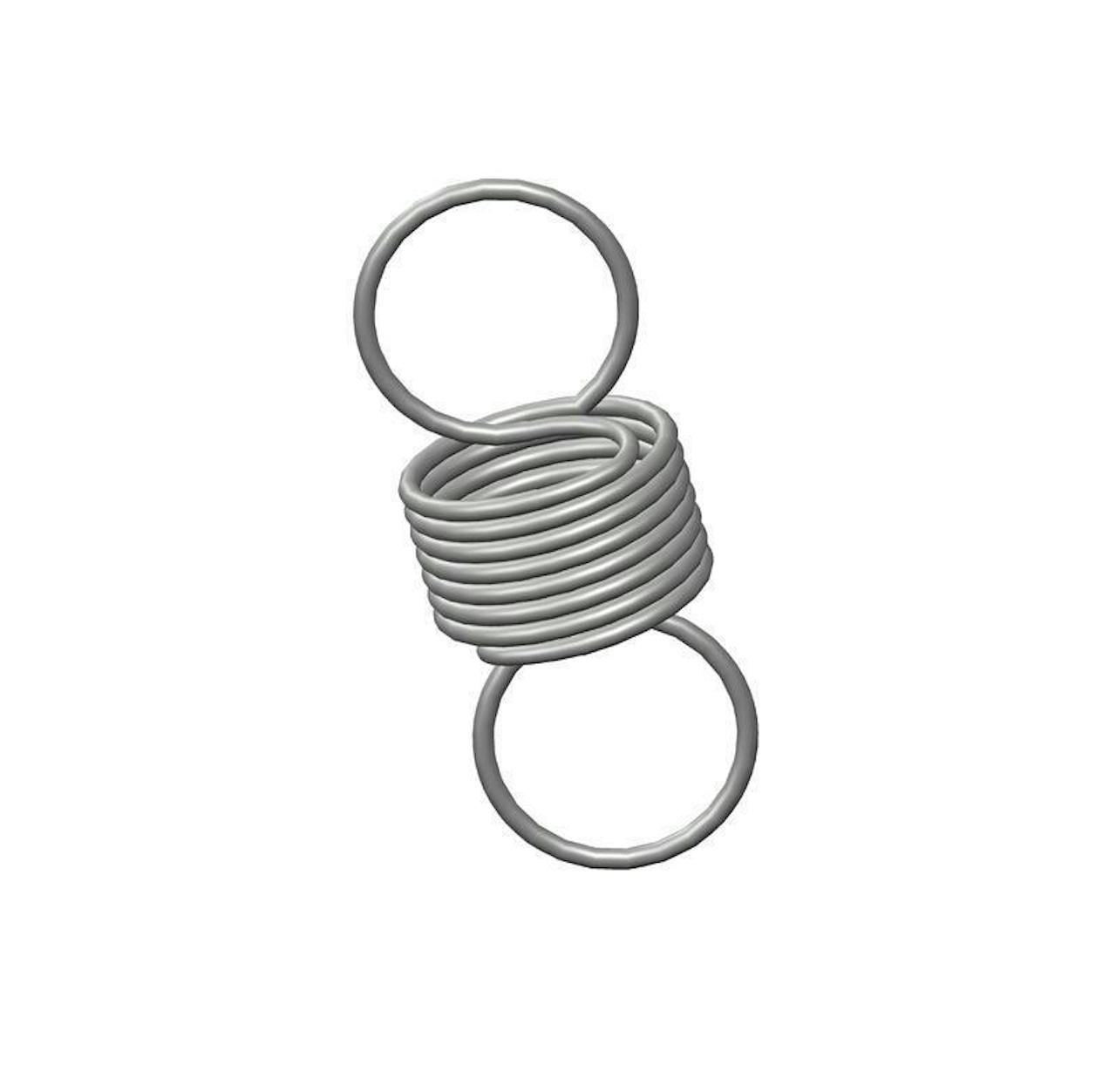

Regular extension spring in Music Wire. This spring features an O.D. of 1 Inch and an initial tension of 1 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 80961 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 1 lb |
| Length | 2.5 in |
| Material | Music Wire |
| Outside Diameter | 1 in |
| Part Type | Standard |
| Rate | 6.3 lbs/in |
| SKU | 80961CS |
| Sugg Max Deflection | 2.6 in |
| Sugg Max Load | 18 lbf |
| Wire Diameter | 0.075 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 80961 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 0.45 kg |
| Length | 63.5 mm |
| Material | Music Wire |
| Outside Diameter | 25.4 mm |
| Part Type | Standard |
| Rate | 1.1 N/mm |
| SKU | 80961CS |
| Sugg Max Deflection | 66.04 mm |
| Sugg Max Load | 80.06 N |
| Wire Diameter | 1.91 mm |
