Century Spring

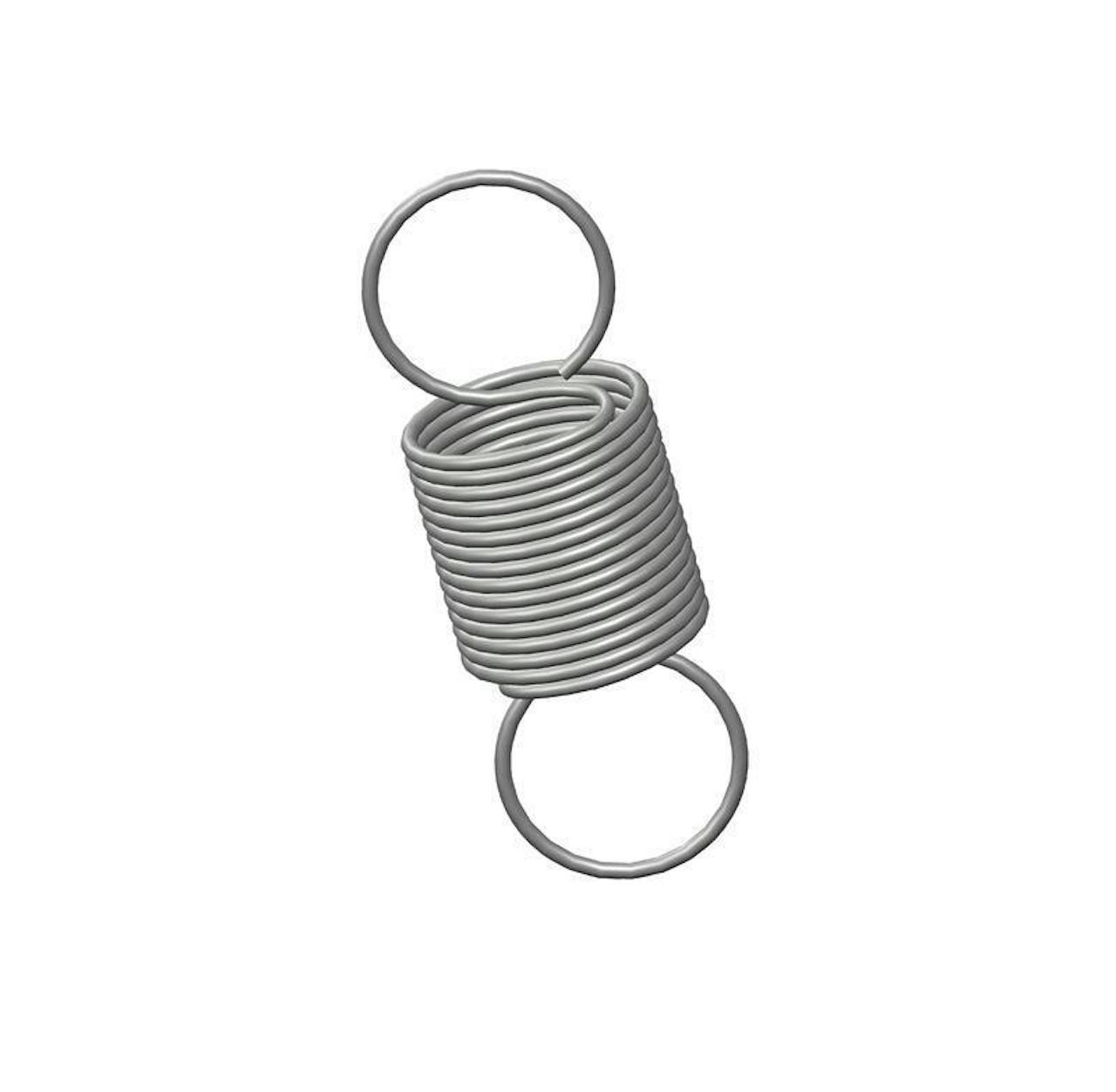

80927CS - 2.5 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.85 Inch and an initial tension of 0.7 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80927
Ends Full Loop
Finish None
Initial Tension 0.7 lb
Length 2.5 in
Material Music Wire
Outside Diameter 0.85 in
Part Type Standard
Rate 1.6 lbs/in
SKU 80927CS
Sugg Max Deflection 5.1 in
Sugg Max Load 8.9 lbf
Wind Direction Left
Wire Diameter 0.055 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80927
Ends Full Loop
Finish None
Initial Tension 0.32 kg
Length 63.5 mm
Material Music Wire
Outside Diameter 21.59 mm
Part Type Standard
Rate 0.28 N/mm
SKU 80927CS
Sugg Max Deflection 129.54 mm
Sugg Max Load 39.59 N
Wind Direction Left
Wire Diameter 1.4 mm
