Century Spring

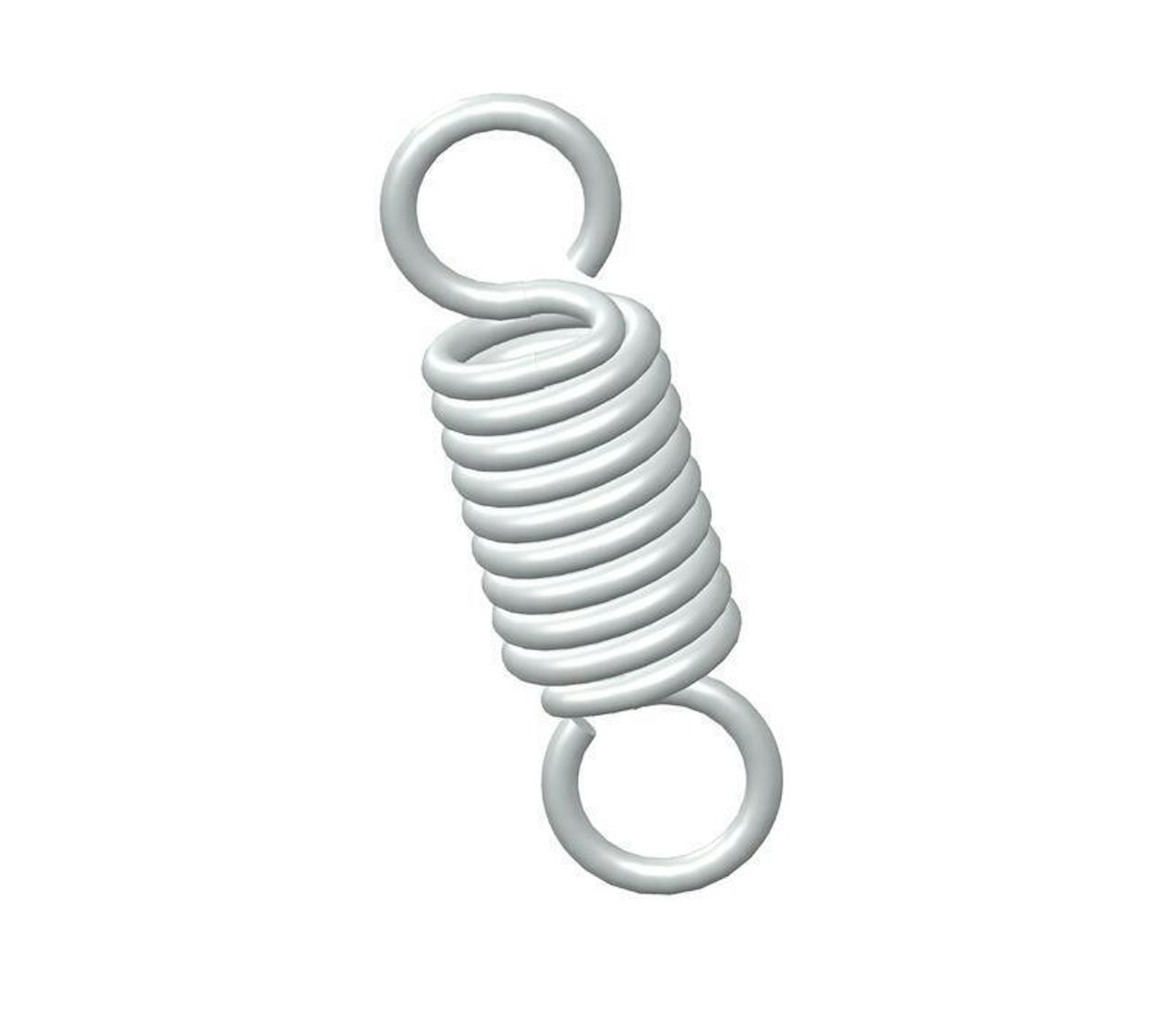

80907SCS - 2.5 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.75 Inch and an initial tension of 5 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80907S
Ends Full Loop
Finish None
Initial Tension 5 lb
Length 2.5 in
Material 302/304 Stainless Steel
Outside Diameter 0.75 in
Part Type Standard
Rate 76 lbs/in
SKU 80907SCS
Sugg Max Deflection 0.57 in
Sugg Max Load 48 lbf
Wind Direction Left
Wire Diameter 0.115 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80907S
Ends Full Loop
Finish None
Initial Tension 2.27 kg
Length 63.5 mm
Material 302/304 Stainless Steel
Outside Diameter 19.05 mm
Part Type Standard
Rate 13.31 N/mm
SKU 80907SCS
Sugg Max Deflection 14.48 mm
Sugg Max Load 213.5 N
Wind Direction Left
Wire Diameter 2.92 mm
